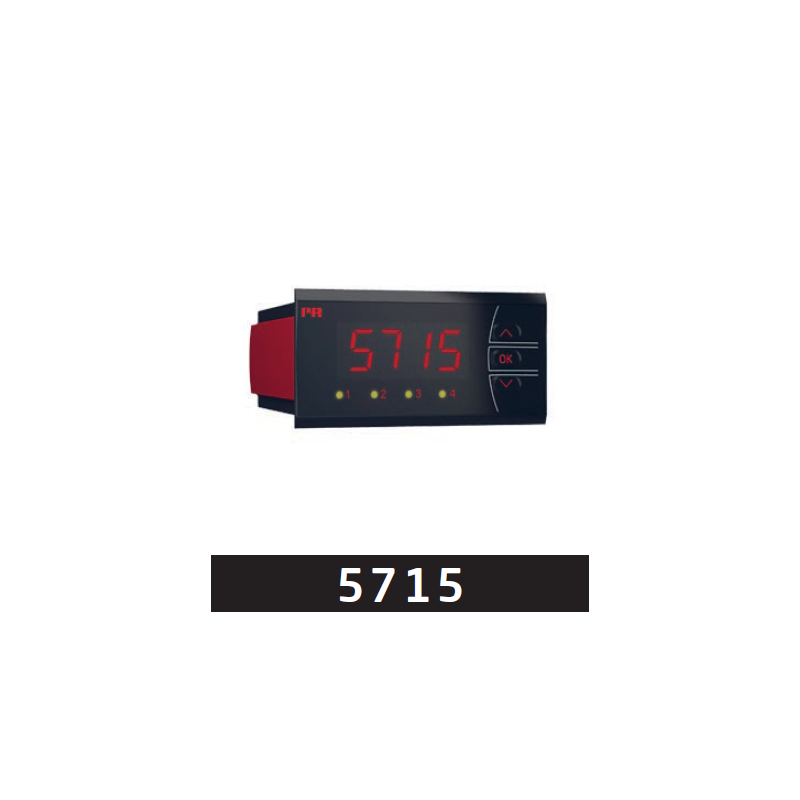

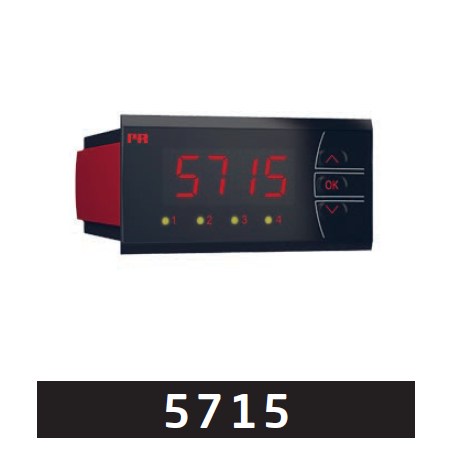

Programmable LED indicator 5715B

Name: Programmable LED indicator 5715B
Brand: PR Electronics
SKU: 5715B
Price: 2081.81 RON
Availability: InStock

lei2,081.81

Tax included

Price excluding VAT: lei1,720.50

Quantity

Last items in stock

Display for digital readout of current / voltage / resistance / temperature or 3-wire potentiometer signals.
Process control with 4 pairs of potential-free change-over relays and analog output.
For tank level control, with the possibility of customer linearization ensuring correct level measurement and control in non-linear tanks.

4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
All standard operational parameters can be adjusted to any application by way of the front function keys.When programming is carried out by way of a PC and the configuration program PReset, additional configuration options are available, such as customer-defined linearization and special input signals.
Help texts in eight languages can be selected via a menu item.
A menu item allows the user to minimize the installation test time for the relay outputs by activating / deactivating each relay independently of the input signal.
2.3 kVAC galvanic isolation between input, output and supply.

To be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X). For extra protection in extreme environments, PR 5715 can be delivered with a specially designed splash-proof cover as accessory.

Reference 5715B

In stock 1 Item

Data sheet

Input: Cold junction compensation: Internal
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer : 10 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / -
Reference voltage / 2-wire supply: - /15 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA
Output: Display, digit / type: 4-digit / LED
Display, digit height: 13.8 mm
Relay: 2 x SPDT, AC: 500 VA
mA, signal range / min. span 0...23 mA / 16 mA
Technical Specifications: Accuracy: ≤ ±0.1% of reading
Ambient temperature: -20...+60°C
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power: 3.8 W
NAMUR: NE43
Programming: 5909 / front keys
Response time: 400 ms / 1 s
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient: ≤ ±0.01% of reading / °C
Approvals: ATEX, Zone 2 : No
CCC: No
DNV / EU-RO marine : Yes/Yes
EAC: Yes
IECEx, Zone 2 : No
UL 508: Yes
Application guide: 2 / 4 relay outputs: No/Yes
4...20 mA Tx input : Yes
Custom sensor linearization: Yes
Lin. R / potentiometer input : Yes/Yes
Process signal calibration:Yes
Temperature input: Yes
mA / V / mV input: Yes/Yes/No
mA output: Yes
