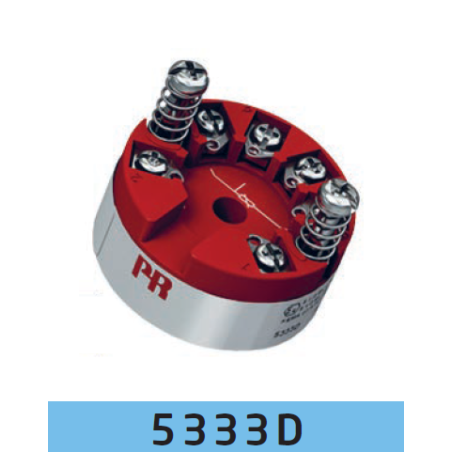

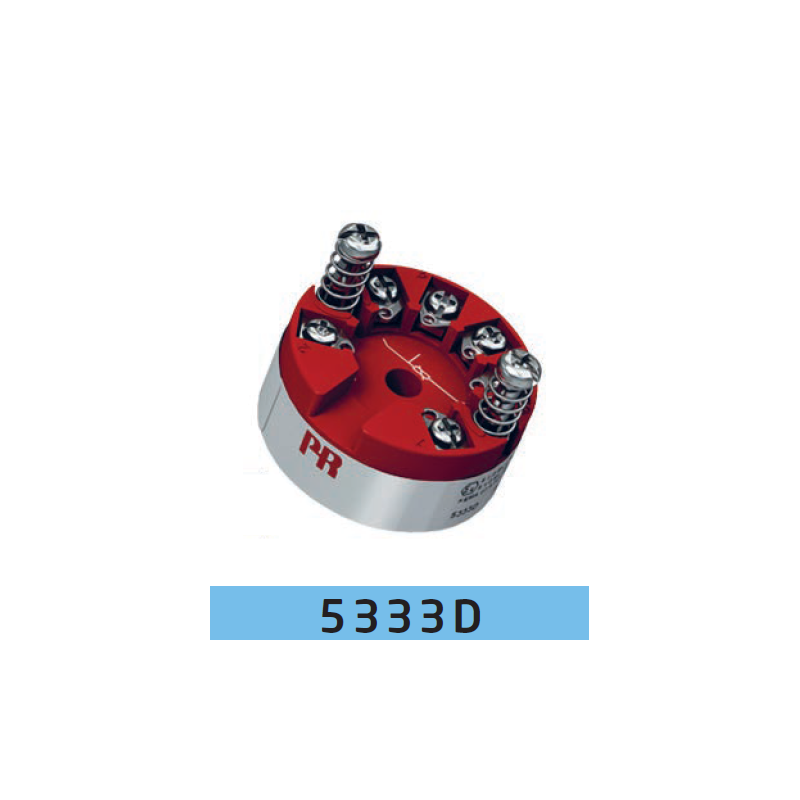

2-wire programmable transmitter 5333D

lei913.31
Tax included

Price excluding VAT: lei754.80

Delivery: 1- 2 days

In stock available in Iași, RO: 0 items

5333D

  • D: Zone 0, 1, 2, 21, 22, M1 / DIV. 1, DIV. 2
  • RTD or Ohm input
  • High measurement accuracy 3-wire connection
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Quantity
Last items in stock

Application

  • Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.

Technical characteristics

  • Within a few seconds the user can program PR5333D to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.

Mounting / installation

  • For DIN form B sensor head mounting.
5333D
3 Items

Data sheet

Input
Lin. R, measurement range / min. span: 0...10 kΩ / 30 Ω
RTD, measurement range / min. span: -200...+850°C / 25°C
Sensor connection, wires: 2 - 3
Output
mA, signal range / min. span: 3.5...23 mA / 16 mA
Technical Specifications
Accuracy ±0.1% of span
Ambient temperature: -40...+85°C
Channels: 1
Max. required power: 0.7 W
NAMUR: NE43
Programming: 5909
Response time: 0.33...60 s
Signal dynamics, input / output: 19 bit / 16 bit
Supply voltage, DC: 8...30 VDC
Temperature coefficient ±0.01% of span / °C
Approvals
ATEX: Yes
CSA: Yes
DNV: Yes
EAC Ex: Yes
FM: Yes
IECEx: Yes
INMETRO, Zone 2: Yes
NEPSI: No
SIL Hardware Assessment: No
Application guide
Custom sensor linearization: Yes
Lin. R / potentiometer input: Yes/No
Loop-powered: Yes
Process signal calibration:Yes
RTD / TC / mV input: Yes/No/No
mA output: Yes
