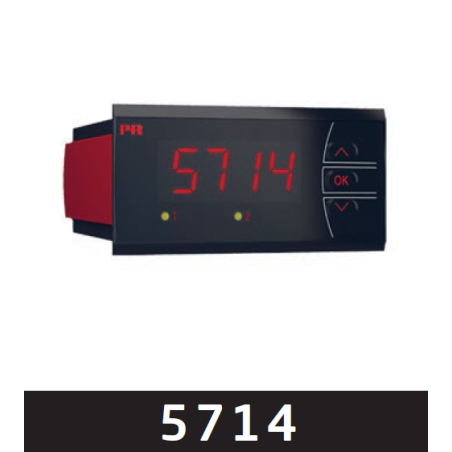

Programmable LED indicator 5714D

lei2,007.93
Tax included

Price excluding VAT: lei1,659.45

Delivery: 1- 2 days

In stock available in Iași, RO: 5 items

5714D

  • D: 2 relays and analog output
  • 4-digit 14-segment LED display
  • Input for mA, V, Ohm, RTD, TC and potentiometer
  • Universal supply
  • Front key programmable
Quantity

Application

  • Display for digital readout of current / voltage / resistance / temperature or potentiometer signals.
  • Process control with 2 potential-free relays and / or analog output.
  • For local readout in extremely wet atmospheres with a specially designed splash-proof cover.

Technical characteristics

  • 4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
  • All standard operational parameters can be adjusted to any application by way of the front function keys.
  • Help texts in eight languages can be selected via a menu item.
  • PR 5714 is available fully-configured according to specifications ready for process control and visualization.
  • 2.3 kVAC galvanic isolation between input, output and supply.
  • In versions with relay outputs the user can minimize the installation test time by activating / deactivating each relay independently of the input signal.

Mounting / installation

  • To be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X). For extra protection in extreme environments, PR5714 can be delivered with a specially designed splash-proof cover as accessory.

Technical articles

5714D
4 Items

Data sheet

Input
Cold junction compensation: Internal
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer : 10 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / -
Reference voltage / 2-wire supply: - /15 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA
Output
Display, digit / type: 4-digit / LED
Display, digit height: 13.8 mm
Relay: 2 x SPDT, AC: 500 VA
mA, signal range / min. span 0...23 mA / 16 mA
Technical Specifications
Accuracy: ≤ ±0.1% of reading
Ambient temperature:-20...+60°C
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power: 3.5 W
NAMUR: NE43
Programming: Front keys
Response time: 400 ms / 1 s
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient: ≤ ±0.01% of reading / °C
Approvals
ATEX, Zone 2 : No
DNV / EU-RO marine : Yes/Yes
EAC: Yes
UL 508: Yes
Application guide
2 / 4 relay outputs: Yes/No
4...20 mA Tx input : Yes
Lin. R / potentiometer input: Yes/Yes
Process signal calibration:Yes
Temperature input: Yes
mA / V / mV input: Yes/Yes/No
mA output: Yes
