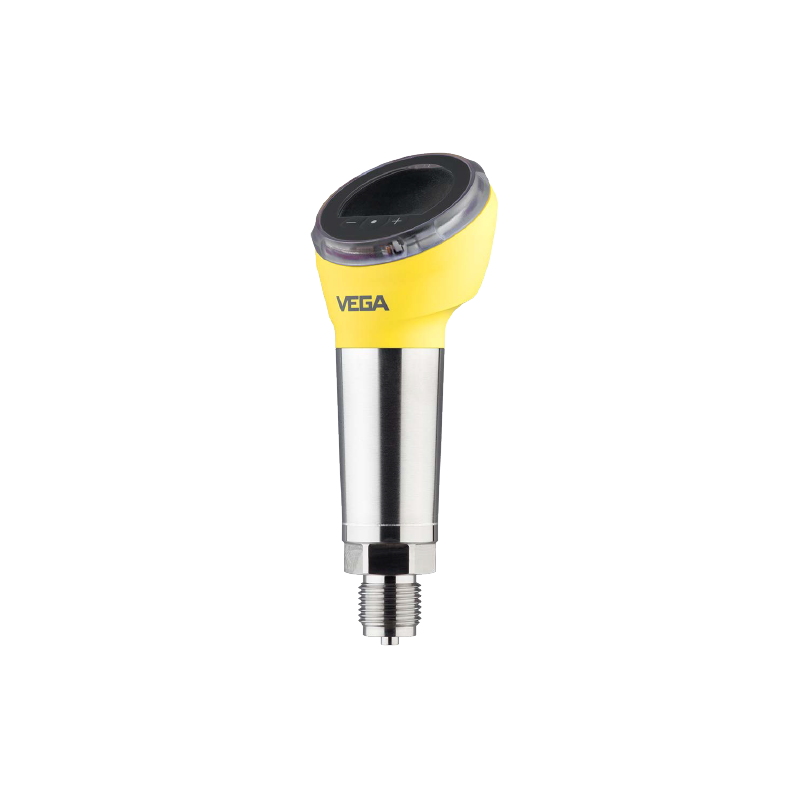

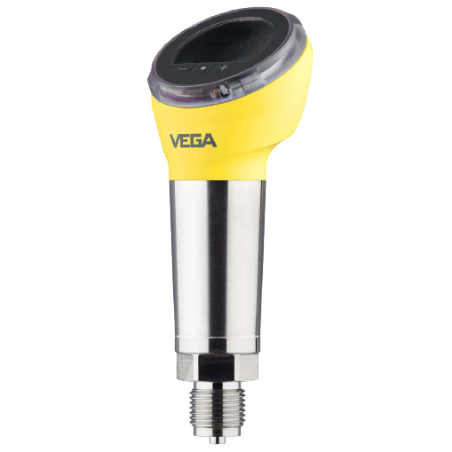

VEGABAR 39 B39.XXXXDNIMZB

Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation

VEGABAR 39 is a universal pressure transmitter with a metallic measuring cell for measuring gases, vapours and liquids up 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.

Your benefit

• Coloured 360° status display, display and on-site operation with VDMA menu structure
• Universally applicable due to fully welded metallic measuring cell
• Easy integration into control systems through IO-Link communication

Checking the selected version

Match the process connection, required output and operating conditions to the complete order code before installation. Where IO-Link is used, verify the connection to the receiving control system. Use the local display and three-button operation to check the configured measurement and status indication during commissioning.
