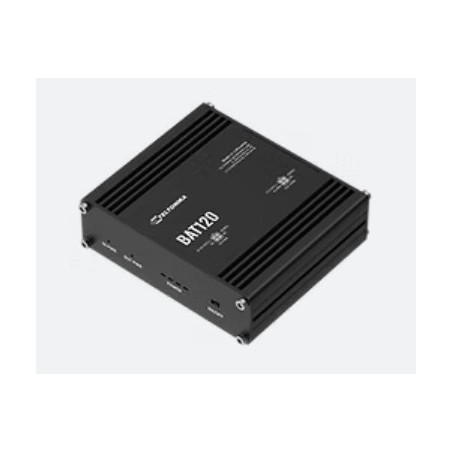

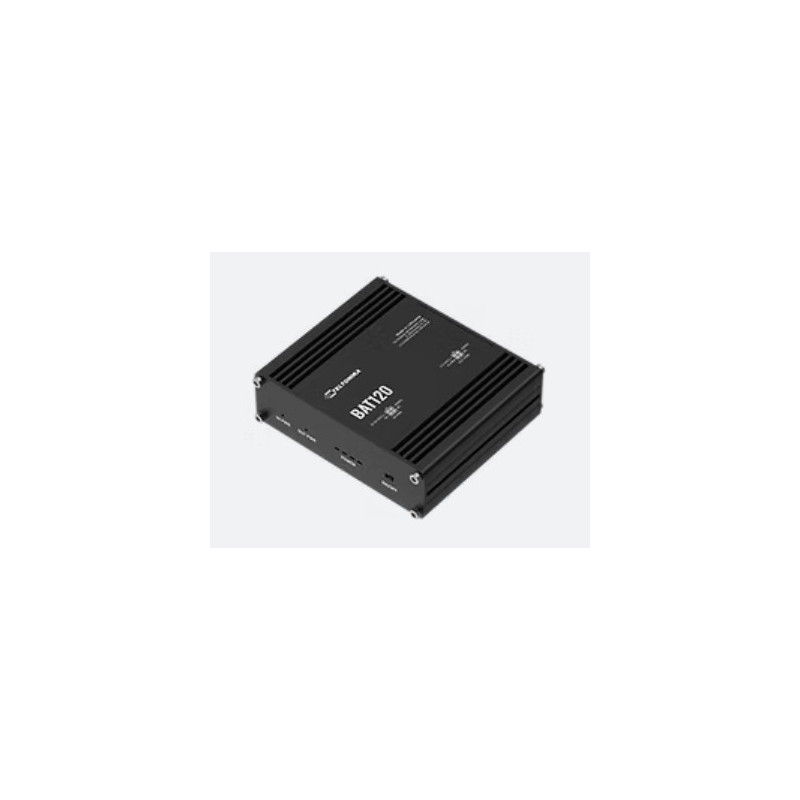

BAT120 – UNINTERRUPTIBLE POWER SUPPLY
lei604.40
Tax included
Price excluding VAT: lei499.50
Delivery: 1- 2 days
In stock available in Iași, RO: 1 items
BAT120
BAT120 – UNINTERRUPTIBLE POWER SUPPLY
BAT120 is an uninterruptible power supply. Before choosing it, confirm the exact equipment it must support and obtain the BAT120 documentation for the electrical and mechanical values not stated on this page. Verify required input and output voltage, current, connectors, polarity, capacity and expected backup duration against the application rather than assuming them from the product name. Also review charging behavior, status indication, installation position, dimensions, permitted ambient conditions and any maintenance instructions. Map the protected load and its consumption in the project documentation, then check that the selected configuration meets that requirement. Record the BAT120 part number, connected device and wiring reference in the bill of materials and circuit diagram. If continuous operation is important, define how backup operation will be tested and observed during commissioning, using only the manufacturer’s documented procedure and limits.
BAT120
1 Item
Data sheet
- Connector
- 4-pin industrial DC power socket
- Casing material
- Aluminium housing
- Dimensions (W x H x D)
- 100 x 30 x 85 mm
- Weight
- 315g
- Mounting options
- DIN rail, wall mount, flat surface (all require additional kit)
- Operating temperature
- 0 °C ~ 45 °C
- Alarm Output
- 1x Active HIGH output, max output 12 V, 2.5 mA
- Power IN
- 1x 4-pin DC connector
- Power OUT
- 1x 4-pin DC connector
- Input power/max charging current
- Charger: max 9.5 W / 800 mA (max battery charging current) (From batch 26) Charger: max 4 W / 300 mA (max battery charging current) (From batch 1-25)
- Input voltage range
- 9 – 30 VDC
