Universal converter 9116A1
lei2,840.66
Tax included
Price excluding VAT: lei2,347.65
Delivery: 1- 2 days
In stock available in Iași, RO: 4 items

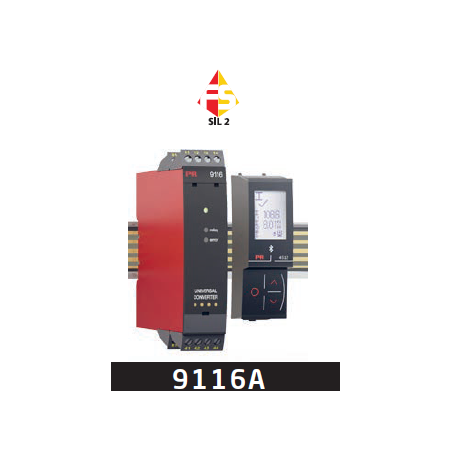

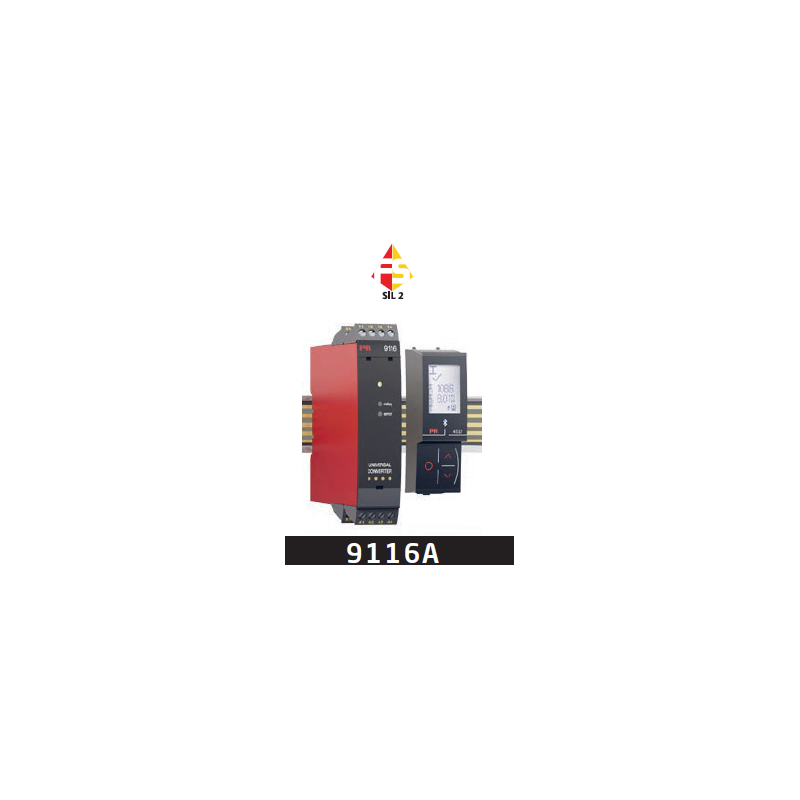

9116A1
- 1: Max. loop power 28VDC
- Input for RTD, TC, Ohm, potentiometer, mA and V
- Supply for 2-wire transmitters
- Active / passive mA output and relay output
- Can be supplied separately or installed on power rail, PR type 9400
- SIL 2-certified via Full Assessment
Advanced features
- Configuration and monitoring by way of detachable display front (PR 4500 series); process calibration, signal and relay simulation.
- Advanced relay configuration, e.g. setpoint, window, delay, sensor error indication and power monitoring.
- Copying of the configuration from one device to others of the same type via the display front.
- TC inputs with internal CJC or external CJC for higher accuracy. Active / passive mA output via the same two terminals.
Application
- 9116A can be mounted in the safe area or in zone 2 / Class I, Division 2, Groups A, B, C, D.
- Conversion and scaling of temperature, voltage, potentiometer and linear resistance signals. Power supply and signal isolator for 2-wire transmitters.
- Monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the power rail.
- 9116A has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508.
- Suitable for the use in systems up to Performance Level “d” according to ISO-13849.
Technical characteristics
- 1 green and 1 red front LED indicate operation status and malfunction. 1 yellow LED indicates relay status.
- 2.6 kVAC galvanic isolation between input, output and supply.
Mounting
- The devices can be mounted vertically or horizontally without distance between neighbouring units.
9116A1
4 Items
Data sheet
- Input
- Cold junction compensation: Internal/external
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer: 10 Ω...10000 Ω
RTD, measurement range / min. span: -200...+850°C / 25°C
Reference voltage / 2-wire supply: - / 16.5 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA - Output
- Load (@ current output): ≤ 600 Ω
Relay: 1 x SPST, AC: 500 VA
mA, signal range / min. span 0...23 mA / 16 mA - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature:-20...+60°C
Channels: 1
Isolation voltage, test / operation: 2.6 kVAC / 250 VAC
Max. required power, 1 / 2 channels: 2.1 W / -
NAMUR NE21, NE43
Programming: 4500 series devices
Response time: 0.4 / 1...60 s
Signal dynamics, input / output: 24 bit / 16 bit
Supply voltage, AC / DC: - / 19.2...31.2 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
CCC / KCs: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2: Yes
INMETRO, Zone 2: Yes
SIL 2 Full Assessment IEC 61508: Yes
UKEX, Zone 2: Yes
UL 61010 / 508 / 913: Yes/No/Yes - Application guide
- 4...20 mA Tx input : Yes
Active / passive current output : Yes/Yes
Analog / relay output: Yes/Yes
Lin. R / potentiometer input : Yes/Yes
Power rail option: Yes
Process signal calibration:Yes
mA / V / temperature input : Yes/Yes/Yes
