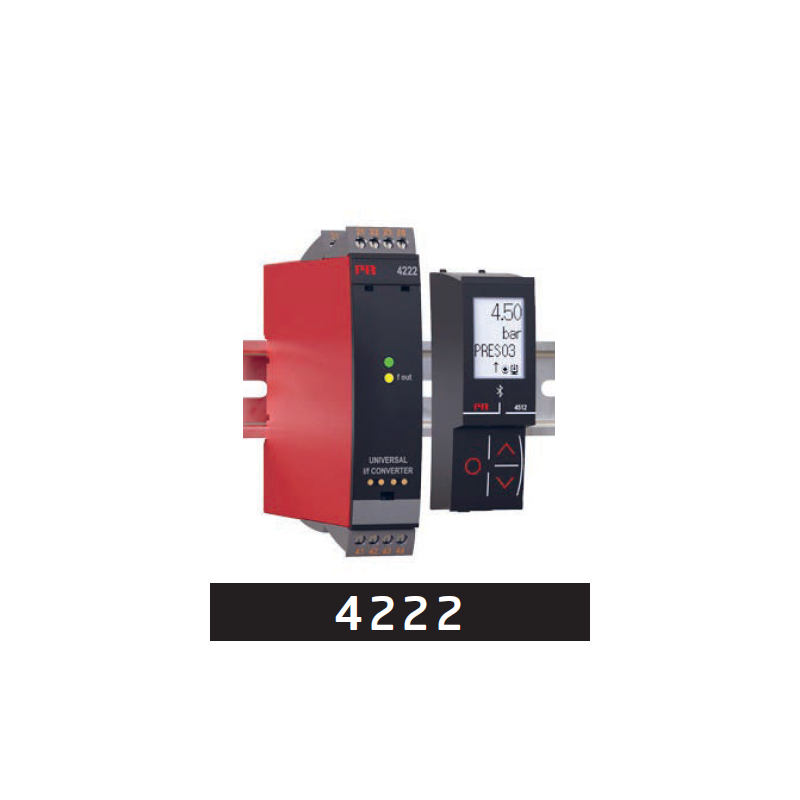

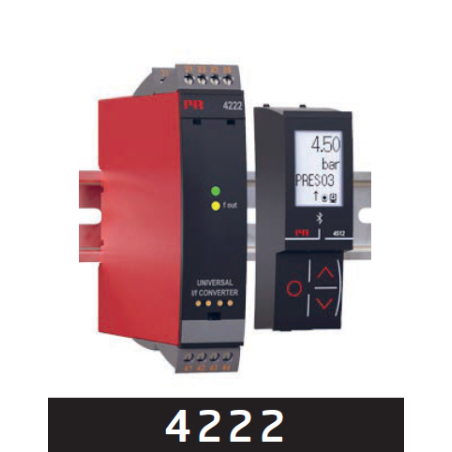

Universal I/f converter 4222
lei2,605.61
Tax included
Price excluding VAT: lei2,153.40
Delivery: 1- 2 days
In stock: 1 items
4222
- Input for RTD, TC, Ohm, potentiometer, mA and V
- Frequency output NPN, PNP and TTL
- Generates frequencies from 0...25000 Hz
- 2-wire supply > 16 V
- Universal AC or DC supply
Advanced features
- Programmable via detachable display front (PR 4500 series), process calibration, signal simulation, password protection, error diagnostics and selection of help text in several languages.
Application
- Linearized, electronic temperature measurement with RTD or TC sensor.
- Conversion of linear resistance variation to a frequency signal, e.g. from solenoids and butterfly valves or linear movements with attached potentiometer.
- Power supply and signal isolator for 2-wire transmitters.
- Process control by way of a frequency signal transmitted to e.g. a PLC or a process computer.
- Galvanic separation and conversion of analog signals to frequency signals.
Technical characteristics
- When 4222 is used in combination with the PR 4500 display / programming fronts, all operational parameters can be modified to suit any application. As the 4222 is designed with electronic hardware switches, it is not necessary to open the device for setting of DIP switches.
- A green front LED indicates normal operation.
- Continuous check of vital stored data for safety reasons.
- 3-port 2.3 kVAC galvanic isolation.
Other articles in which this product is mentioned
4222
1 Item
Data sheet
- Input
- Lin. R, measurement range / pot.-meter: 0 Ω...10 kΩ / 10 Ω...100 kΩ
RTD, measurement range / min. span: 200...+850°C / -
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC
mA, measurement range / min. span: 0...23 mA / 16 mA - Output
- Hz, signal range / min. span: 0...25000 Hz / 0.001 Hz
Max. output frequency: 25 kHz
Pulse output: NPN / PNP / TTL
Sensor supply: 16 VDC - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature:-20...+60°C
Channels: 1
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power, 1 / 2 channels: 2.5 W / -
NAMUR NE21
Programming: 4500 series devices
Response time: 1 s
Signal dynamics, input / output : 24 bit / -
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2 : No
CCC: No
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2 : No
SIL 2 Full Assessment IEC 61508 :No
SIL 2, Hardware Assessment: No
UKEX, Zone 2 : No
UL 61010 / 508 / 913: No/Yes/No - Application guide
- Analog to frequency converter: Yes
Digital output: Yes
Lin. R / potentiometer input : Yes/Yes
Process signal calibration:Yes
