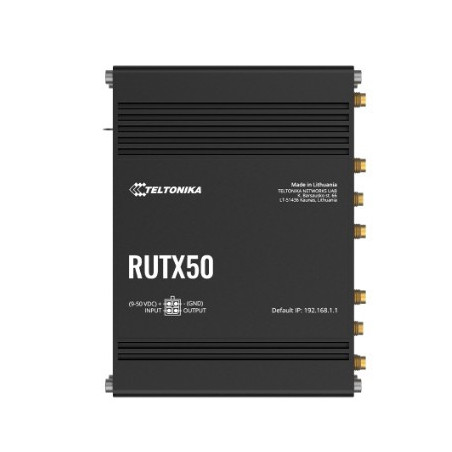

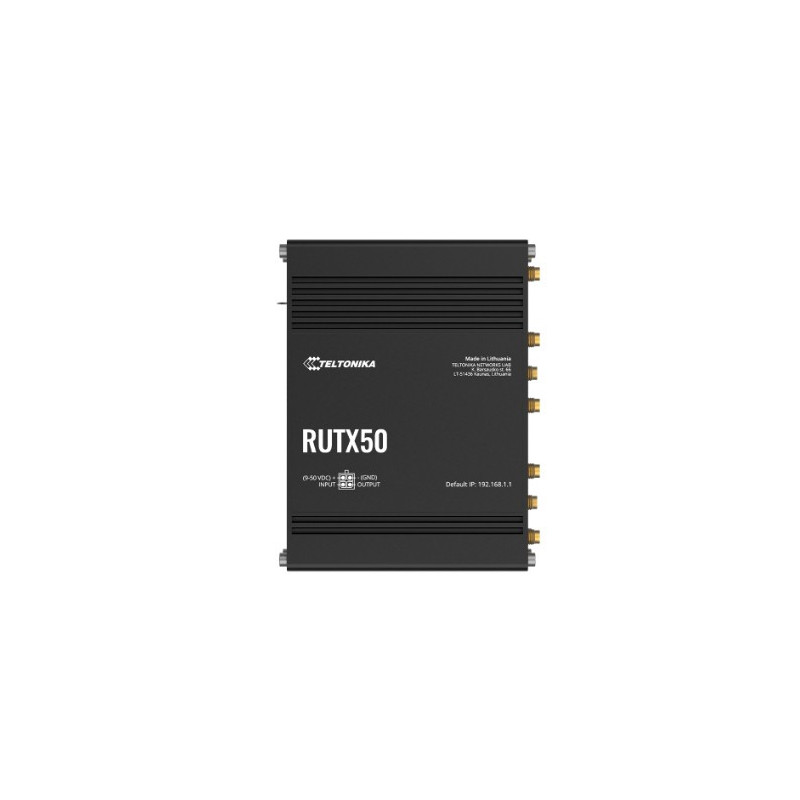

RUTX50 Dual-SIM 5G Industrial Router | ATSEN

Router RUTX50

Name: Router RUTX50
Brand: TELTONIKA
SKU: RUTX50
Price: 3478.63 RON
Availability: InStock

lei3,478.63

Tax included

Price excluding VAT: lei2,874.90

Delivery: 1- 2 days

In stock available in Iași, RO: 2 items

Router RUTX50

INDUSTRIAL 5G ROUTER

Quantity

Last items in stock

RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.

Ultra-high cellular speeds of up to 3.3 Gbps

DUAL SIM

With auto failover, backup WAN and other switching scenarios

SA & NSA

Supports both architectures to leverage the 5G infrastructure

FUTURE-PROOFING

Backward compatible with 4G (LTE CAT 20) and 3G network technologies

For more details, you can access : RUTX50 Industrial 5G Router

Planning a 5G installation

Match the installation to the mobile network available at the site, including the intended SA or NSA deployment. Count the wired devices and uplink connections when allocating the five Gigabit Ethernet ports, and plan the Wi-Fi clients separately. Define the preferred connection and the conditions for automatic failover, then test the backup path. The stated maximum cellular rate does not replace an assessment of coverage and actual data requirements for the application.

Reference RUTX50

In stock 2 Items

Data sheet

Mobile module: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch: Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Wi-Fi users: Up to 150 simultaneous connections
Ethernet: WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
Protocol: HTTP(S), MQTT, Azure MQTT
Supported modes: Station,Outstation
System Characteristics: CPU Quad-core ARM Cortex A7, 717 MHz RAM 256 MB, DDR3 FLASH storage 256 MB, SPI Flash
Connector: 4-pin industrial DC power socket
Casing material: Aluminium housing
Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
Weight: 533 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
