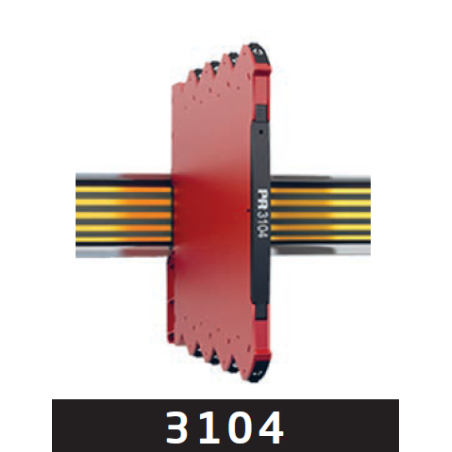

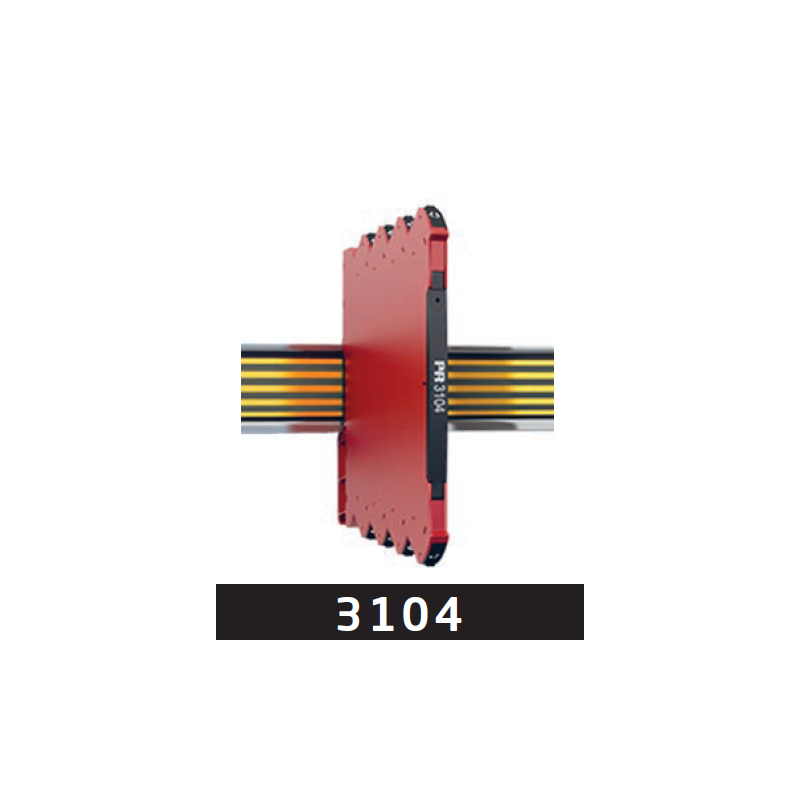

Isolated converter 3104-N
lei1,161.78
Tax included
Price excluding VAT: lei960.15
Delivery: 1- 2 days
In stock available in Iași, RO: 4 items
3104-N
- N- Supplied via terminals
- Isolation and conversion of standard DC signals
- Power supply and signal isolator for 2-wire transmitter
- Loop supply >17 V
- DIP switch configuration
- Slimline housing of 6.1 mm
Functional highlights
- Galvanic separation of analog current and voltage signals.
- A competitive choice in terms of both price and technology for galvanic isolation of all signal types to SCADA systems or PLC equipment.
- High 3-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
- All terminals are over-voltage protected, polarity protected and short-circuit protected.
- The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.
Technical highlights
- Flexible 24 VDC (±30%) supply via power rail or connectors.
- Factory-calibrated measurement ranges.
- Fast response time < 7 ms.
- Excellent signal/noise ratio > 60 dB.
- High galvanic isolation of 2.5 kVAC.
- Inputs and outputs are floating and galvanically separated.
- A green front LED indicates normal operation and malfunction.
- Wide ambient temperature range: -25...+70°C.
Programming
- Easy configuration via DIP switches.
Mounting / installation
- The narrow 6.1 mm housing allows up to 163 units per meter.
- Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
- Units can be supplied separately or installed on PR 9400 power rail.
3104-N
4 Items
Data sheet
- Input
- Reference voltage / 2-wire supply: - / 17 V
V, measurement range / min. span: 0...10.25 VDC / 4 VDC
mA, measurement range / min. span: 0...23 mA / 16 mA - Output
- Load (@ current output): ≤ 600 Ω
Load (@ voltage output): ≥ 10 kΩ
V, signal range / min. span: 0...10 VDC / 4 VDC
mA, signal range / min. span 0...23 mA / 16 mA - Technical Specifications
- Accuracy: ±0.05% of span
Ambient temperature: -25...70°C
Channels: 1
Isolation voltage, test / operation: 2.5 kVAC / 250 VAC
Max. required power: 1.2 W
NAMUR NE21
Programming: DIP-switch
Response time: 7 ms
Signal dynamics, input / output: Analog signal chain
Supply voltage, AC / DC: - / 16.8...31.2 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
CCC: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx: Yes
UKEX, Zone 2: Yes
UL 61010 / 508: Yes/No - Application guide
- 4...20 mA Tx input : Yes
Active / passive mA output: Yes/No
Buffered voltage output: Yes
Mounting in Zone 2 / DIV 2: Yes/Yes
Power rail option: Yes
Signal converter: Yes
mA / V output: Yes/Yes
