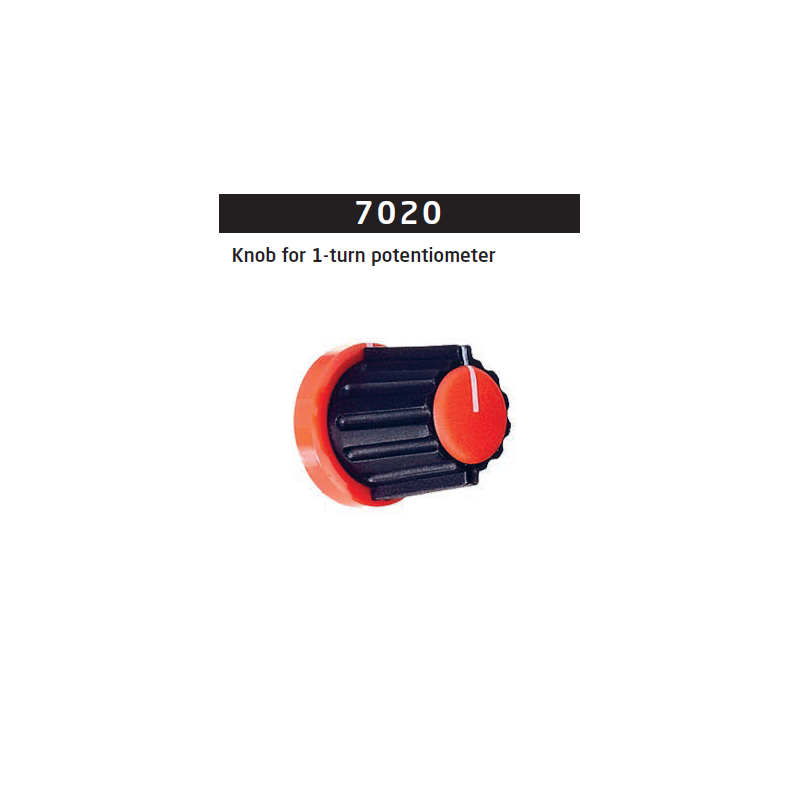

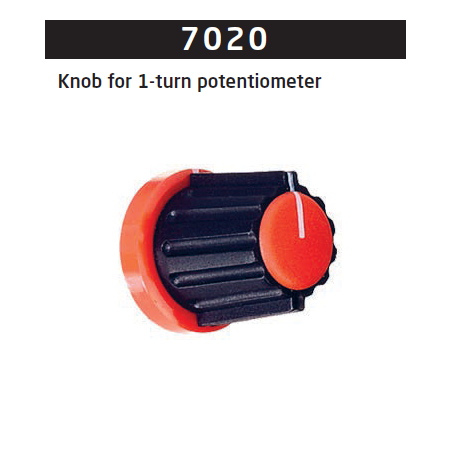

Black knob with red cap for 1-turn potentiometer 7020

Application

• Knob for type 7012, 7015 and 7016. With nut cover and a 6 mm shaft.

Material

• Polyamide

Color

• Black knob and red nut cover and top.

Matching the knob to the potentiometer

The 7020 is the operating knob for the potentiometer types listed on this page. Check the existing potentiometer reference and its 6 mm shaft before choosing this accessory. The black polyamide body and red cover are useful identification details when comparing a replacement with the installed part. This item is the knob, not the potentiometer itself; select the electrical component separately when assembling a new control. For a panel replacement, also check clearance around neighbouring controls, access for mounting and the intended position of the adjustment. Follow the host equipment instructions when removing or fitting the assembly. Before returning the equipment to use, check that the knob is secured correctly and that its movement corresponds to the required adjustment of the potentiometer.
