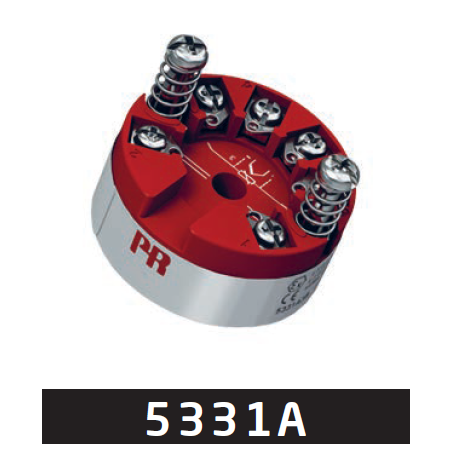

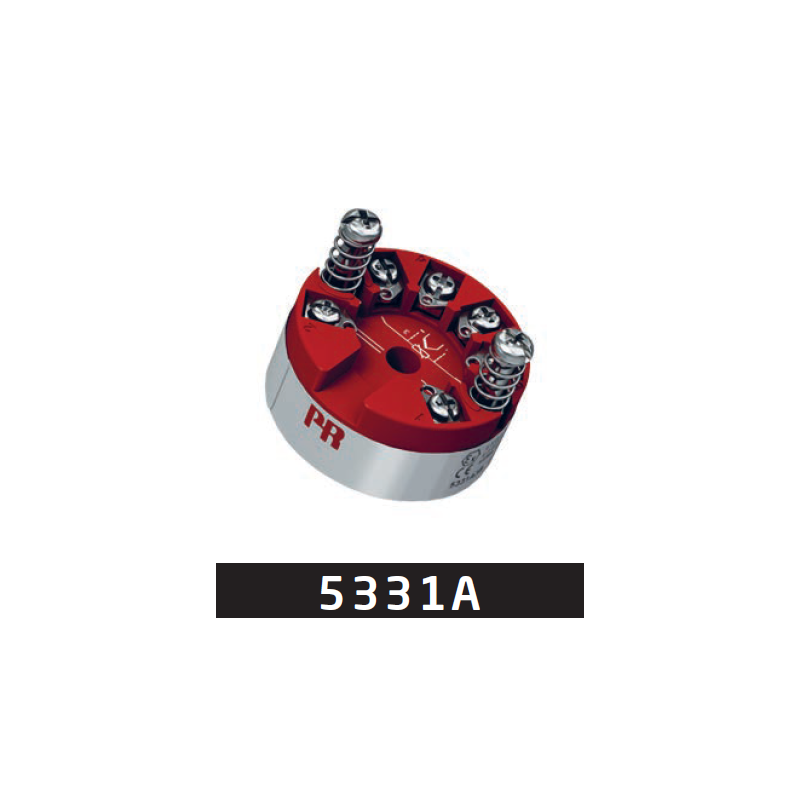

2-wire programmable transmitter 5331A3B

lei1,524.42
Tax included

Price excluding VAT: lei1,259.85

Delivery: 1- 2 days

In stock available in Iași, RO: 1 items

5331A3B

  • RTD, TC, Ohm, or mV input
  • Extremely high measurement accuracy
  • 1.5 kVAC galvanic isolation
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Quantity
Last items in stock

Application

  • Linearized temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
  • Amplification of a bipolar mV signal to a standard 4...20 mA current signal.

Technical characteristics

  • Within a few seconds the user can program PR5331A to measure temperatures within all ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
  • Continuous check of vital stored data for safety reasons.

Mounting / installation

  • For DIN form B sensor head or DIN rail mounting with the PR fitting type 8421.

Configuration check

Before commissioning, match the programmed input type to the connected sensor and select the required measuring range. For RTD or resistance inputs, verify the two-, three- or four-wire connection and its cable compensation setting. Confirm that the receiving system uses the same scaling for the 4–20 mA signal.

5331A3B
1 Item

Data sheet

Input
Cold junction compensation: Internal/external
Lin. R, measurement range / min. span: 0...5000 Ω / 30 Ω
Max. offset: 50% of selec. max. value
RTD, measurement range / min. span: -200...+850°C / 25°C
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
mV, measurement range / min. span: -12...800 mV / 5 mV
Output
mA, signal range / min. span: 3.5...23 mA / 16 mA
Technical Specifications
Accuracy: ±0.05% of span
Ambient temperature: -40...+85°C
Channels: 1
Isolation voltage, test / operation: 1500 VAC / 50 V
Max. required power: 0.8 W
NAMUR NE21, NE43
Programming: 5909
Response time: 1...60 s
Signal dynamics, input / output: 20 bit / 16 bit
Supply voltage, DC: 7.2...35 VDC
Temperature coefficient ±0.01% of span / °C
Approvals
ATEX, Zone 2: Yes
CSA, Zone 2 - DIV 2: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2: Yes
INMETRO, Zone 2: Yes
NEPSI: No
SIL Hardware Assessment: No
Application guide
Custom sensor linearization: Yes
Galvanically isolated: Yes
Lin. R / potentiometer input: Yes/No
Loop-powered: Yes
Mounting in Zone 2 / DIV 2: Yes/No
Process signal calibration:Yes
RTD / TC / mV input: Yes/Yes/Yes
mA output: Yes
