MANAGED ETHERNET SWITCH TSW212
lei752.14
Tax included
Price excluding VAT: lei621.60
Delivery: 1- 2 days
In stock available in Iași, RO: 2 items
TSW212

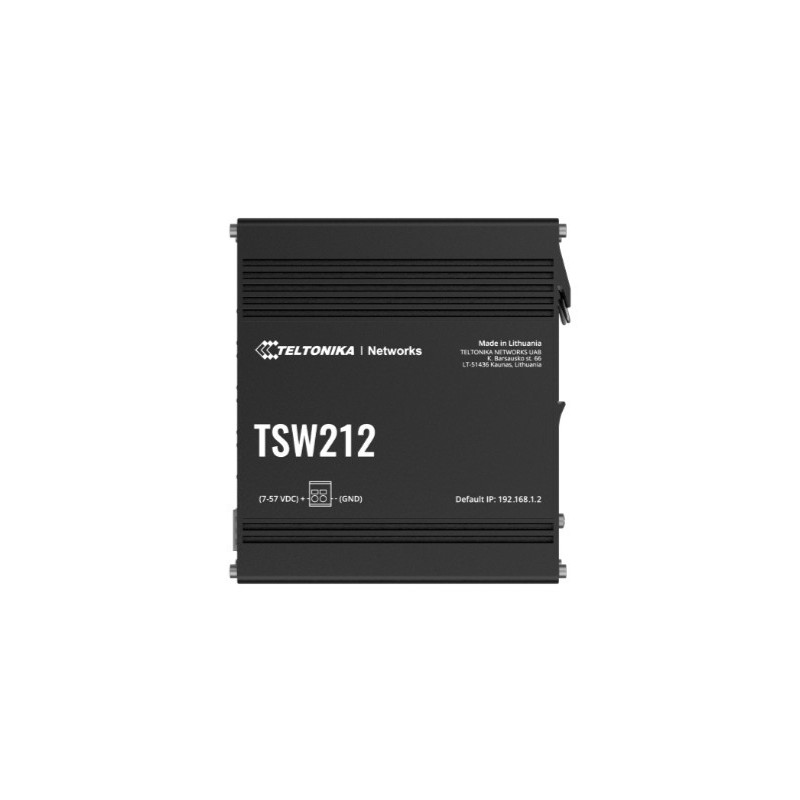

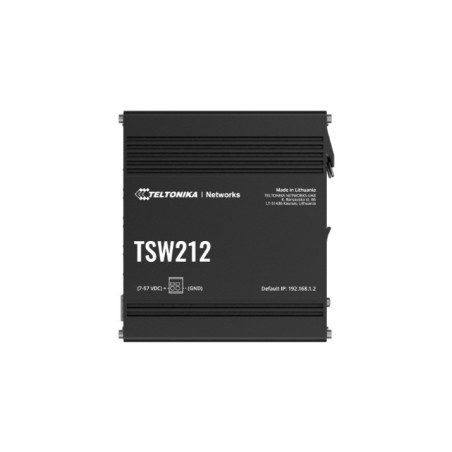

MANAGED ETHERNET SWITCH TSW212
TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
MANAGED SWITCH
- L2 with additional L3 features for advanced management capabilities
PROFINET & MORE
- Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP
ETHERNET & SFP
- 8 x Gigabit Ethernet ports and 2 x SFP ports for fiber optic communication
TSWOS
- Teltonika Networks OS for switches, intuitively designed for infinite configurations
TSW212 is a TSWOS-managed Ethernet switch with eight Gigabit Ethernet ports and two SFP ports. Its Layer 2 management is supplemented by a DHCPv6 client and static IPv6 routing, while supported industrial protocols include PROFINET, EtherNet/IP and MRP. Confirm required port allocation, protocol use and TSWOS configuration before deployment.
Technical articles
TSW212
2 Items
Data sheet
- Ethernet
- 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
- System Characteristics
- RAM 128MB, DDR3 FLASH storage 16 MB serial flash
- Connector
- 2-pin industrial DC power socket
- Casing material
- Anodized aluminum housing and panels
- Dimensions (W x H x D)
- 132 x 44.2 x 122.2 mm
- Weight
- 615 g
- Mounting options
- Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
- Operating temperature
- -40 °C to 75 °C
- Operating humidity
- 5% to 95% non-condensing
- Ingress Protection Rating
- IP30
