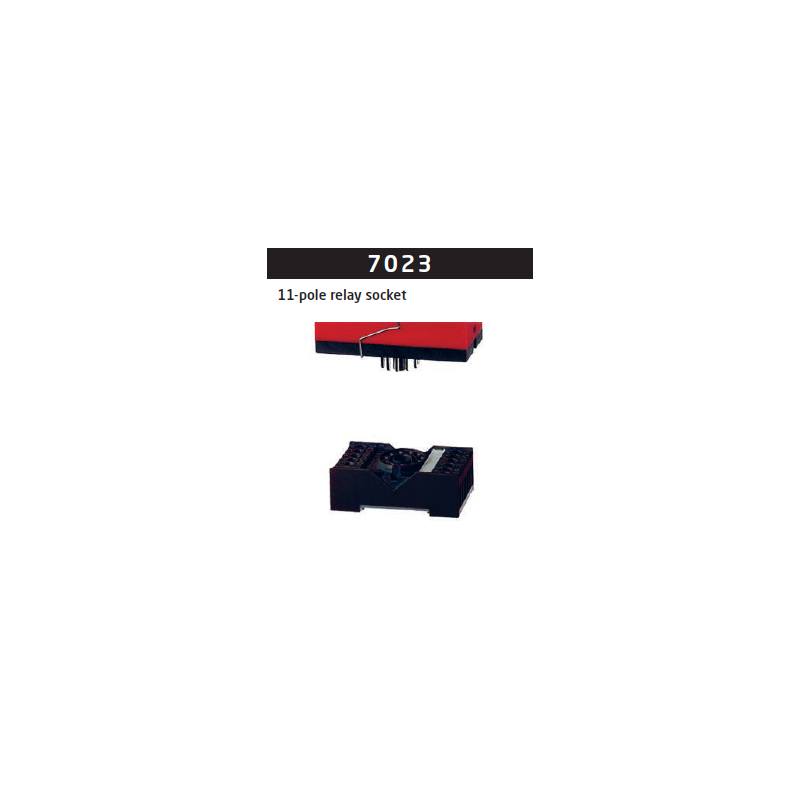

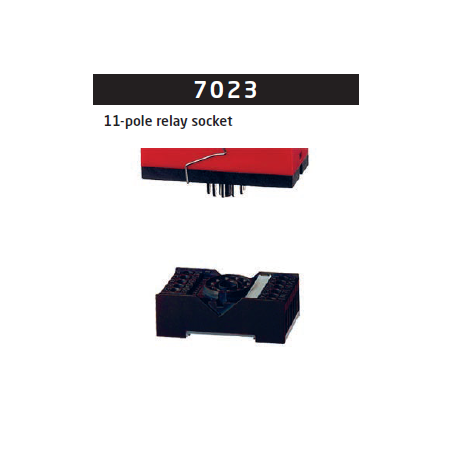

11-pole relay socket 7023

Application

• Socket with screw terminals for SYSTEM 2200.
• For mounting on a DIN rail or directly on the bottom plate.

Technical characteristics

• Dimensions (H x W x D): 68 x 38 x 24 mm
• Material: Noryl SE 1
• Color: Black

When planning a SYSTEM 2200 installation, use PR 7023 as the 11-pole relay socket where screw-terminal wiring is required. Before mounting, choose between a DIN rail and a bottom plate according to the panel layout, and confirm that the available space accommodates its 68 × 38 × 24 mm dimensions. The black housing is made from Noryl SE1. If several sockets are installed together, review the coding option in the product documentation and define the wiring and coding scheme before assembly.

For a replacement, compare the complete socket reference and terminal layout with the installed equipment before transferring any existing wiring.
