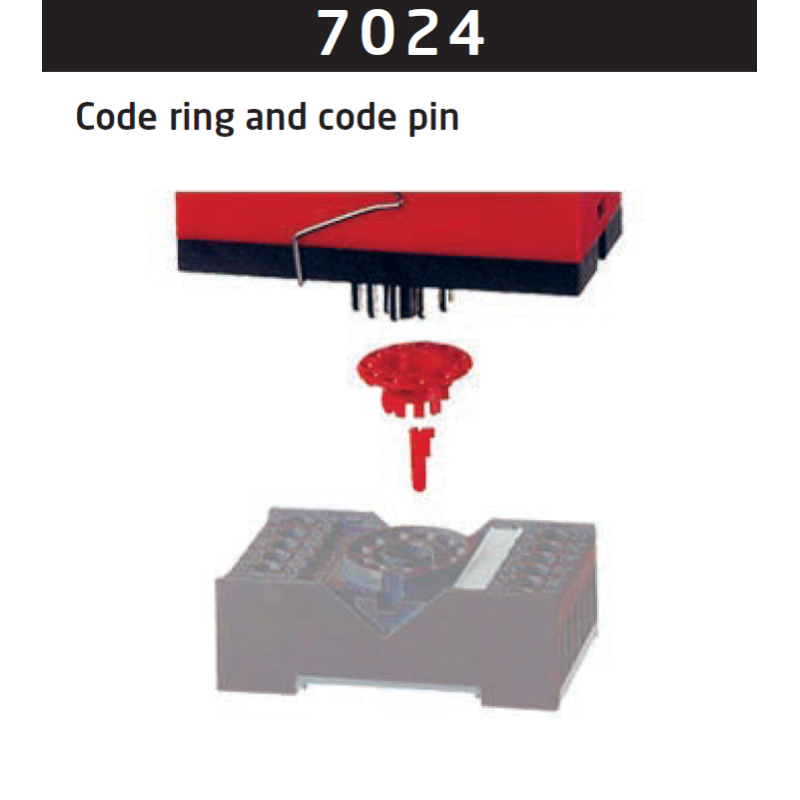

Code ring and code pin 7024

Application

• Code ring and code pin for coding of the 11-pole relay socket type 7023.

Technical characteristics

• Material: Noryl SE 1
• Color: Red

The PR 7024 set contains a red code ring and code pin intended for the 11-pole socket PR 7023. Both components are made from Noryl SE1. The set provides the two specified physical coding components for this socket model.

Before fitting the parts, confirm that the socket is the PR 7023 model and identify the intended coding position. Inspect the ring and pin, follow the current PR electronics documentation for placement, and verify the completed arrangement before installing or reconnecting the associated equipment. Record the selected coding position in the installation documentation so it can be checked during later inspection or maintenance.

Keep the accessory reference with the socket entry in the parts list.
