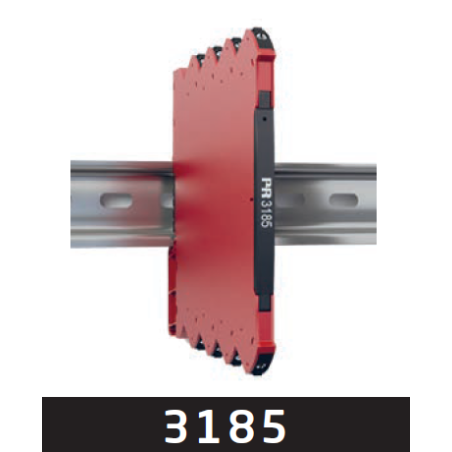

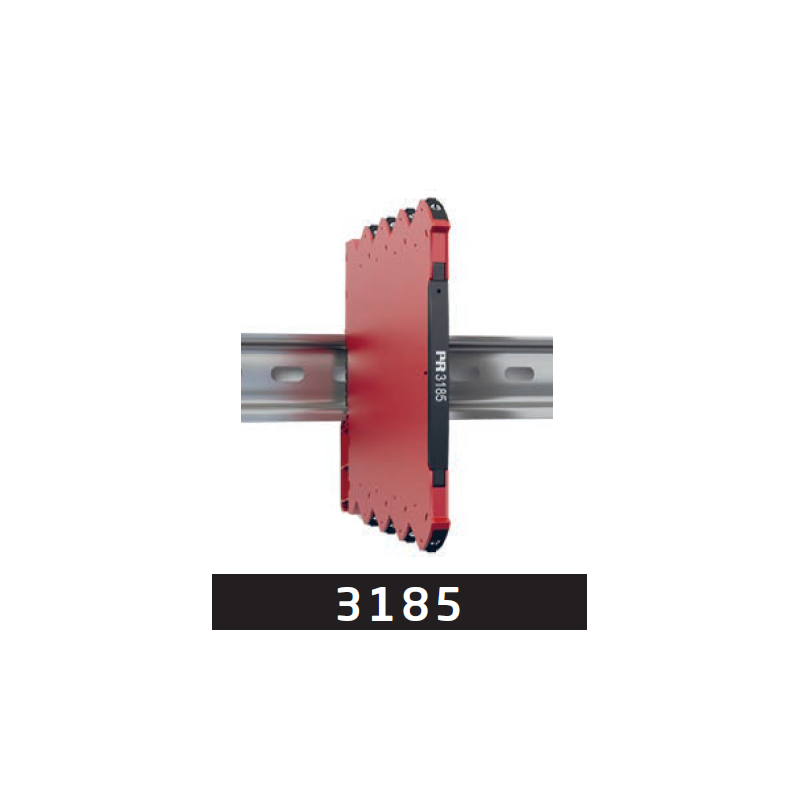

Loop powered isolator 3185A1
lei731.99
Tax included
Price excluding VAT: lei604.95
Delivery: 1- 2 days
In stock available in Iași, RO: 5 items
3185A1
- 1 channel input loop-powered isolator
- Isolation and 1:1 conversion of standard current signals
- Excellent accuracy and high load stability
- Low input voltage drop and fast response time
- Slimline 6.1 mm housing
Functional highlights
- High 4-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
- The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.
Technical highlights
- Low input voltage drop, typ. 1.35 V + Vout
- Excellent conversion accuracy, better than 0.1% in the range 0…20.5 mA.
- Fast response time < 5 ms.
- NAMUR NE21, NE43.
- Excellent signal/noise ratio > 60 dB.
- High galvanic isolation of 2.5 kVAC.
- Inputs and outputs are floating and galvanically separated.
- The output is voltage limited to 17.5 VDC.
- Wide ambient temperature range: -25...+70°C.
Mounting / installation
- The narrow 6.1 mm housing allows up to 163 units per meter.
- DIN rail mounting with up to 326 channels per meter.
- Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
Technical articles
3185A1
5 Items
Data sheet
- Input
- mA, measurement range / min. span: 0...23 mA / 1:1
- Output
- Load (@ current output): ≤ 600 Ω
mA, signal range / min. span: 0...23 mA / 1:1 - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature: -25...70°C
Channels: 1
Isolation voltage, test / operation: 2.5 kVAC / 250 VAC
Max. required power: 30 mW per channel
NAMUR NE21
Programming: No
Response time: 5 ms
Signal dynamics, input / output: Analog signal chain
Supply voltage, AC / DC: ≤ 1.25 V + (0.015 x Vout.)
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
CCC: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2: Yes
UKEX, Zone 2: Yes
UL 61010 / 508:Yes/No - Application guide
- Active / passive input signal: Yes/No
Active / passive mA output: Yes/No
Mounting in Zone 2 / DIV 2: Yes/Yes
Signal repeater: Yes
mA / V output: Yes/No
