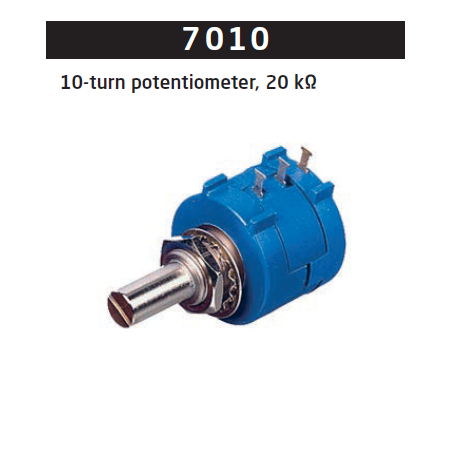

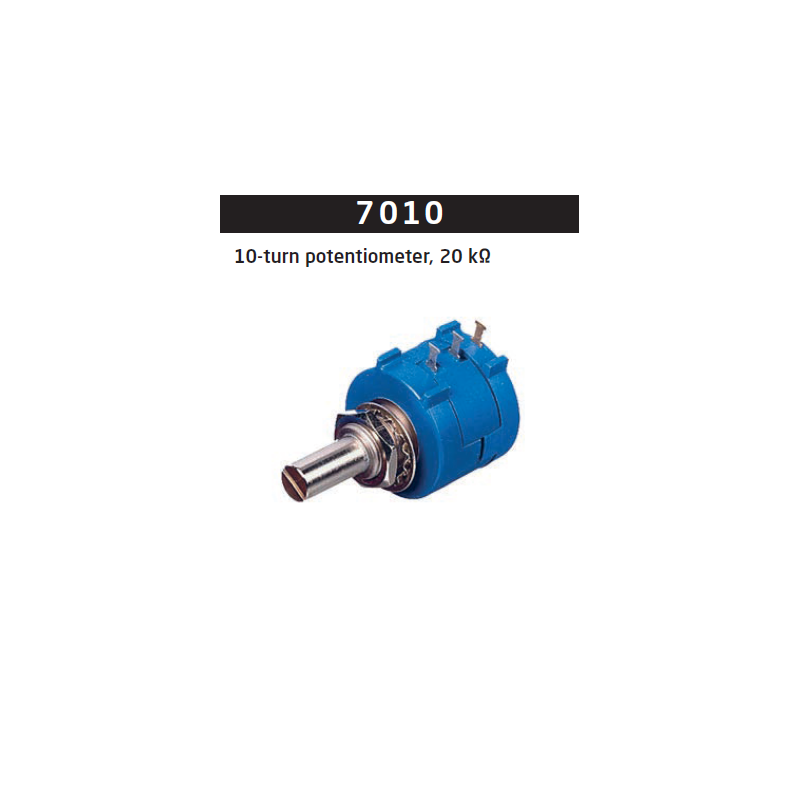

10-turn potentiometer, 20 kΩ 7010

Application

• E.g. as an external setpoint.

Technical characteristics

• Cut-out (Ø): 10 mm
• Shaft: 6.3 mm
• Connection: Solder terminals

The PR 7010 is a 10-turn potentiometer with a nominal resistance of 20 kΩ, ±5% tolerance and a 2 W rating. It is intended to provide an external setpoint. Installation uses a 10 mm panel cutout, a 6.3 mm shaft and solder terminals.

Before selection, confirm that the required resistance, tolerance, power rating and 10-turn adjustment match the application. Measure the available panel space and cutout, check access to the shaft, and plan the soldered connections. Follow the current PR electronics documentation for terminal identification and mounting, then verify the setpoint adjustment within the connected system before use.

Check the adjustment knob separately against the stated shaft dimensions.
