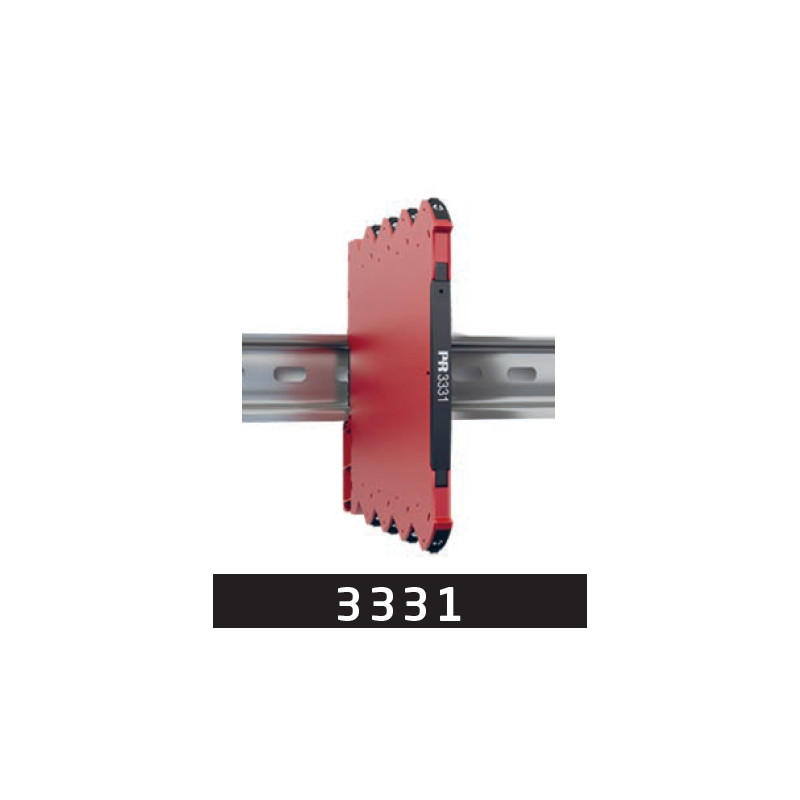

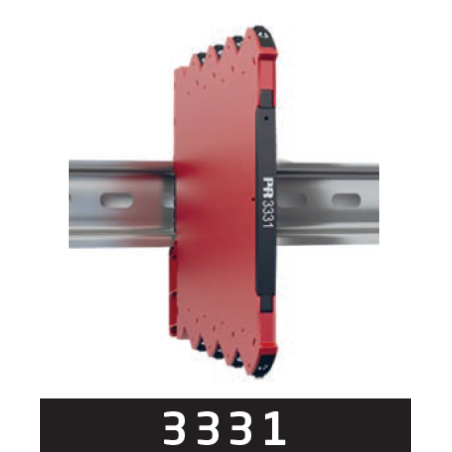

Temperature converter, loop-powered - isolated 3331
lei913.31
Tax included
Price excluding VAT: lei754.80
Delivery: 1- 2 days
In stock available in Iași, RO: 2 items
3331
- Excellent accuracy, better than 0.05% of span
- Slimline housing of 6.1 mm
- Excellent EMC performance and 50/60 Hz noise suppression
- Selectable < 30 ms / 300 ms response time
- Pre-calibrated temperature ranges selectable via DIP-switches
Application
- The 3331 temperature converter measures a standard Pt100, TC J and K temperature sensor, and provides an isolated passive analog current output signal.
- High 2 port isolation provides surge suppression and protects the control system from transients and noise.
- The 3331 can be mounted in the safe area or in Zone 2 / Division 2 areas.
- Approved for marine applications.
Technical characteristics
- Flexibly loop powered by 5.5...35 VDC via connectors.
- < 30 ms fast response time with simultaneous sensor error detection when selected.
- Selectable 300 ms response time when signal dampening is needed.
- Selectable internal/external CJC.
- Excellent conversion accuracy in all available ranges, better than 0.05% of span.
- Meeting the NAMUR NE21 recommendations, the 3331 provides top measurement performance in harsh EMC environments.
- The device meets the NAMUR NE43 standard defining out of range and sensor error output values.
- All terminals are protected against overvoltage and polarity error.
- High galvanic isolation of 2.5 kVAC.
- Excellent signal/noise ratio of > 60 dB.
Mounting / installation / programming
- Selectable DIP-settings for easy configuration of more than 1000 factory calibrated measurement ranges.
- The narrow 6.1 mm housing allows up to 163 units to be mounted per meter of DIN rail, without any air gap between units.
- Wide ambient temperature range of -25...+70°C.
Technical articles
3331
2 Items
Data sheet
- Input
- Cold junction compensation: Internal/external
RTD, measurement range / min. span: -200...+850°C / 10°C
Sensor connection, wires : 2 - 3 - 4
TC types: J & K - Output
- Load (@ current output): ≤ (Vsupply-5.5) / 0.023 [Ω]
mA, signal range / min. span: 3.5...23 mA / 16 mA - Technical Specifications
- Accuracy: ±0.05% of span
Ambient temperature: -25...70°C
Channels: 1
Isolation voltage, test / operation: 2.5 kVAC / 250 VAC
Max. required power: 0.8 W
NAMUR NE21, NE43
Programming: DIP-switch
Response time: 30 ms
Signal dynamics, input / output: 23 bit / 18 bit
Supply voltage, DC: 5.5...35 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2: Yes
UKEX, Zone 2: Yes
UL 61010 / 508:Yes/No - Application guide
- Galvanically isolated: Yes
Loop-powered: Yes
Mounting in Zone 2 / DIV 2: Yes/Yes
RTD / TC / mV input: Yes/Yes/No
mA / V output: Yes/No
