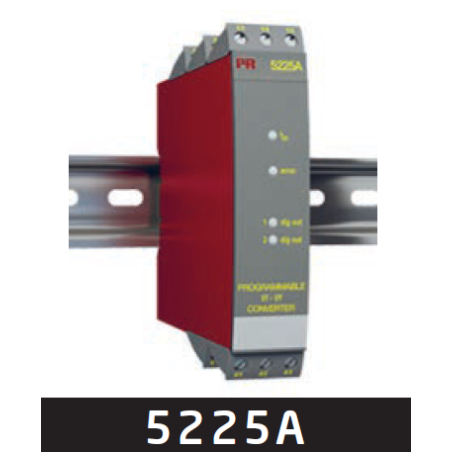

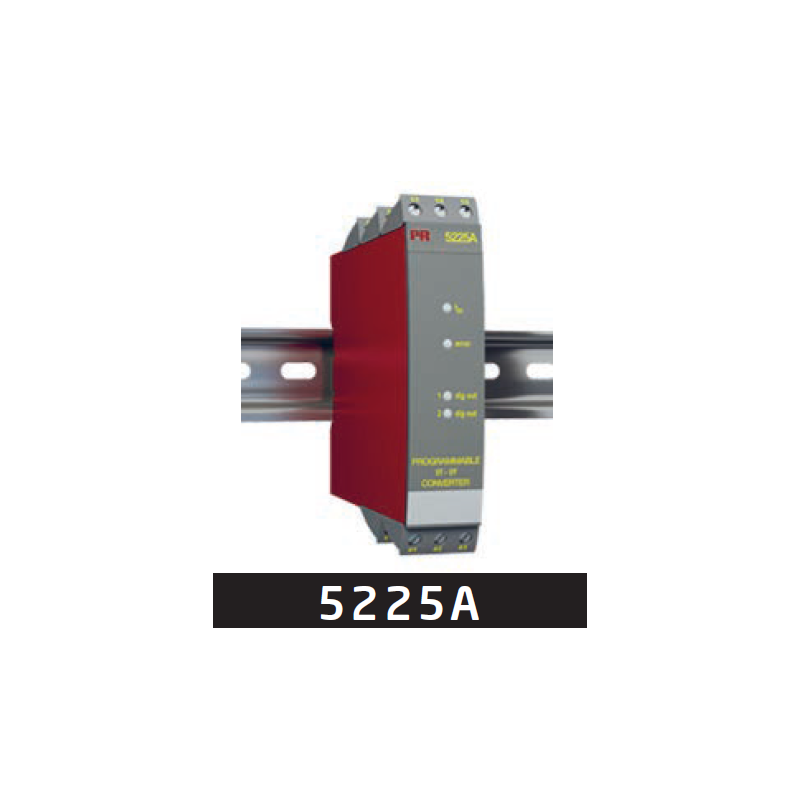

Programmable f/I-f/f converter 5225A2
lei2,612.33
Tax included
Price excluding VAT: lei2,158.95
Delivery: 1- 2 days
In stock available in Iași, RO: 4 items
5225A2
- Output: Analog + relay output
- Pulse conditioning
- Frequency generator
- Concurrent f/I and f/f function
- Analog current and voltage output
- PNP / NPN output, optional relays
- Programmable by PC and Loop Link
Advanced features
- The 5225 transmitter can be configured with a standard PC and the Loop Link communications unit, or delivered fully configured.
Application
- The f/I function performs frequency to current and voltage conversion.
- The f/f function can be used for pulse division or multiplication and as a buffer collecting fast pulse trains.
- The concurrent f/I and f/f functions enable a scaled digital output signal in conjunction with the analog output.
- The frequency generator function is used as e.g. a time base or clock generator.
- Input and supply polarity reversal protection.
- Programmable digital outputs including NPN, PNP or relay options.
Technical characteristics
- 4 front LEDs, indicating f in active inputs (not NPN), Dig.out.1 (NPN or relay 1) and Dig.out 2 (relay 2) outputs, and a NAMUR input error signal.
- Analog current output can be configured to any current within 0...20 mA range.
- Voltage output range is selectable between 0...10 VDC and 0...1 VDC by use of internal jumpers.
- Input range:
- Frequency: 0...20,000 Hz
- Sensor types: NAMUR, tacho, NPN, PNP, TTL, S0
- Output range:
- Current and voltage output: 0...20 mA / 0...10 V
- Relay outputs: 0...20 Hz
- NPN and PNP output as f/f: 0...1000 Hz
- NPN and PNP output as generator: 0...20,000 Hz
5225A2
4 Items
Data sheet
- Input
- Hz, measurement range / min. span: 0...20 kHz / 0.001 Hz
Min. pulse width: 25 μs
Sensor type: All standard sensors - Output
- Max. output frequency: 1000 Hz
Pulse output: NPN / PNP or relays
Relays: 2 x SPST, AC: 500 VA
Sensor supply:5...17 VDC
V, signal range / min. span: 0...10 VDC / 0.25 VDC
mA, signal range / min. span: 0...23 mA / 5 mA - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature:-20...+60°C
Channels: 1
Isolation voltage, test / operation: 3.75 kVAC / 250 VAC
Max. required power: 3.5 W
Programming: 5909 + DIP-switch
Response time: 60 ms...1000 s
Signal dynamics, input / output: - / 16 bit
Supply voltage, AC / DC: - / 19.2...28.8 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2 : No
CCC: No
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2 : No
SIL 2 Full Assessment IEC 61508 :No
SIL 2, Hardware Assessment: No
UL 61010 / 508 / 913: No - Application guide
- Concurrent f/I and f/f: Yes
Digital output: Yes
Frequency to analog converter: Yes
Process signal calibration:Yes
Pulse converter / scaler: Yes
Relay output: Yes
