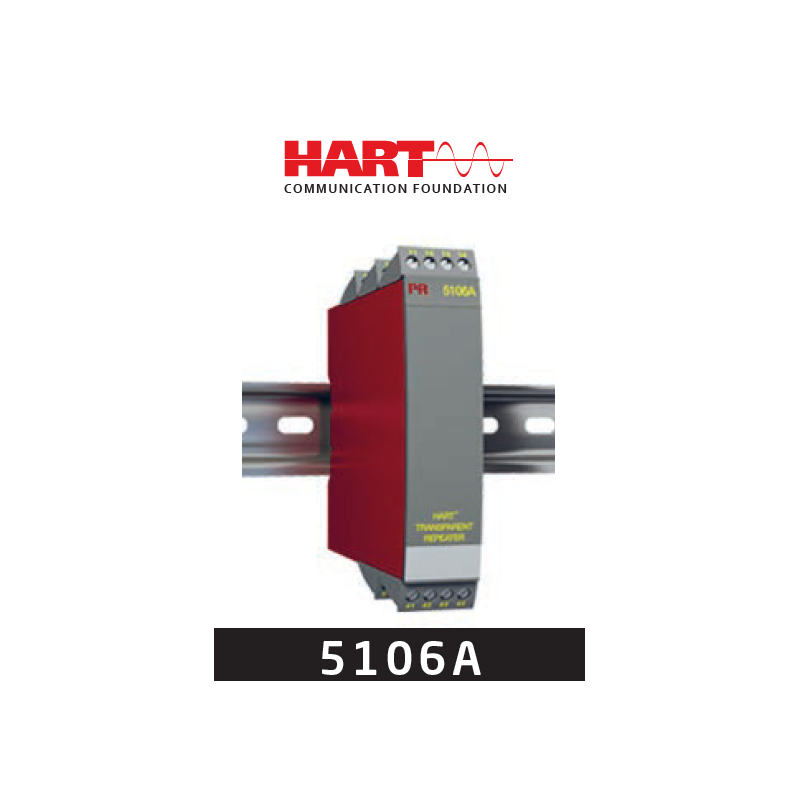

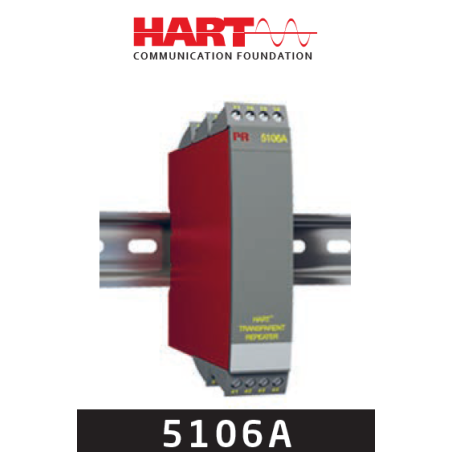

HART transparent repeater 5106ABB
lei3,115.99
Tax included
Price excluding VAT: lei2,575.20
Delivery: 1- 2 days
In stock available in Iași, RO: 2 items
5106ABB
- 2-channel version
- 3- / 5-port 3.75 kVAC galvanic isolation
- Low response time
- 2-wire supply > 17 V
- Universal supply by AC or DC
Application
- Power supply and signal isolator with 2-way HART communication for 2-wire transmitters installed in the hazardous area.
- Signal isolator with 2-way HART communication for supplied current transmitters installed in the hazardous area.
- Signal isolator with low response time on analog current signals.
Technical characteristics
- PR5106A primarily processes current signals of 4...20 mA.
- PR5106A is based on microprocessor technology for gain and offset. The analog signal is transmitted at a response time of less than 25 ms.
- Inputs, outputs, and supply are floating and galvanically separated.
- The output can be connected either as an active current transmitter or as a 2-wire transmitter.
Mounting / installation
- Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighboring units, up to 84 channels can be mounted per meter.
5106ABB
2 Items
Data sheet
- Input
- Reference voltage / 2-wire supply: - / 17 V
mA, measurement range / min. span: 3.5...23 mA / 1:1 - Output
- Load (@ current output): ≤ 600 Ω
mA, signal range / min. span: 3.5...23 mA / 1:1 - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature: -20...+60°C
Channels: 2
Isolation voltage, test / operation: 3.75 kVAC / 250 VAC
Max. required power, 1 / 2 channels: 2.0 W / 2.8 W
NAMUR NE21
Programming: No
Response time: 25 ms
Signal dynamics, input / output: Analog signal chain
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2 : No
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2 : No
UL 61010 / 508 : No/Yes - Application guide
- 4...20 mA Tx input : Yes
Active / passive mA output: Yes/Yes
Signal repeater: Yes
mA / V output: Yes/No
