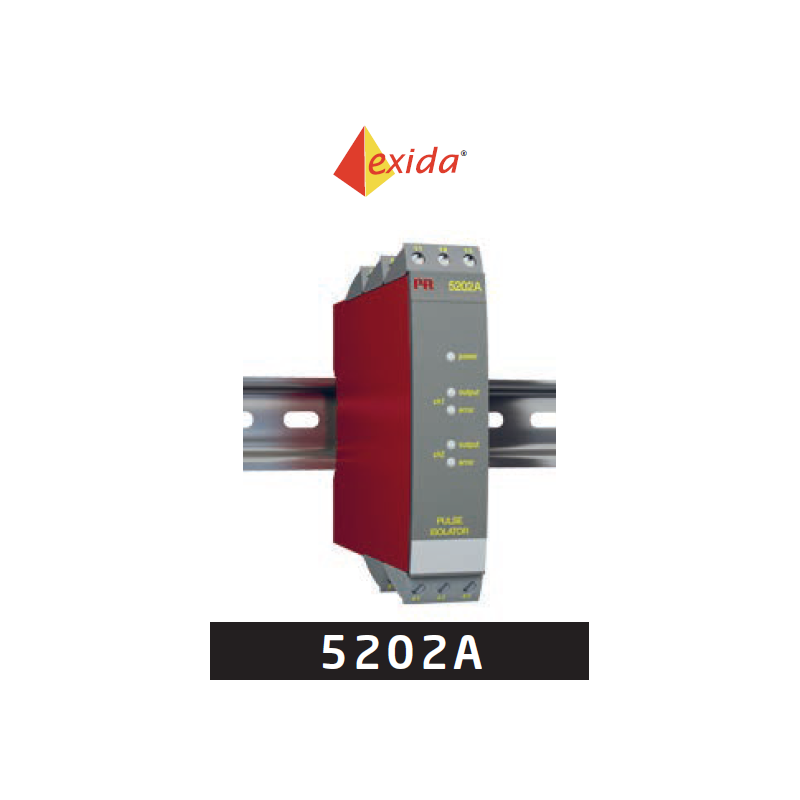

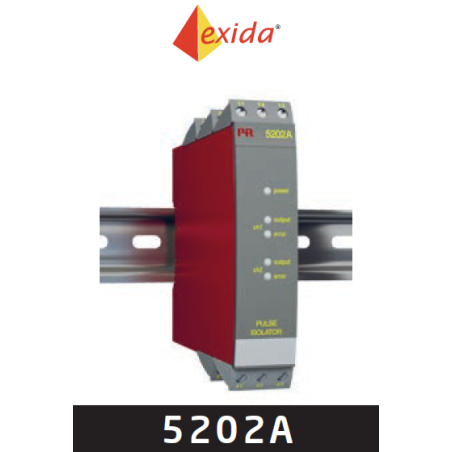

Pulse isolator 5202A2
lei1,403.54
Tax included
Price excluding VAT: lei1,159.95
Delivery: 1- 2 days
In stock available in Iași, RO: 0 items
5202A2
- Outputs - 2x1 relay
- Dual output 5-port
- 3.75 kVAC galvanic isolation
- Cable error detection
- Universal supply by AC or DC
Application
- Pulse isolator for the supply of NAMUR sensors.
- Pulse isolator for the detection of mechanical contacts.
- One input signal can be used on two separate outputs.
- A cable error alarm can be detected on a separate output.
Technical characteristics
- PR5202A1 and 5202A2 have relays with change-over contacts or open NPN collectors.
- PR5202A4 has 4 SPST relays, which are activated simultaneously two and two. Each relay can be programmed to the function N.O. or N.C.
- Inputs, outputs and supply are floating and galvanically separated.
Mounting / installation
- Mounted vertically or horizontally on a DIN rail. Up to 84 channels per meter can be mounted.
5202A2
1 Item
Data sheet
- Input
- Hz, measurement range / min. span: 0...5 kHz
Min. pulse width: 100 μs
Sensor type: NAMUR / switch - Output
- Hz, signal range: 0...5 kHz
Pulse output: NPN / relay
Relays: 2 x SPDT, AC: 100 VA - Technical Specifications
- Ambient temperature: -20...+60°C
Channels: 2
Isolation voltage, test / operation: 3.75 kVAC / 250 VAC
Max. required power, 1 / 2 channels: - / 1.5 W or 1.8 W*
NAMUR NE21
Programming: DIP-switch
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V - Approvals
- ATEX, Zone 2: Yes
CCC: No
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2: Yes
INMETRO, Zone 2: No
SIL 2 Full Assessment IEC 61508 :No
SIL 2, Hardware Assessment: No
UKEX, Zone 2 : No
UL 61010 / 508 / 913: No/Yes/No - Application guide
- Dual input - math functions: Yes
Process signal calibration:Yes
Relay output: Yes
