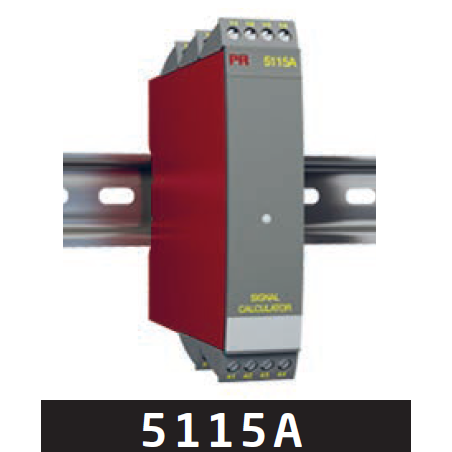

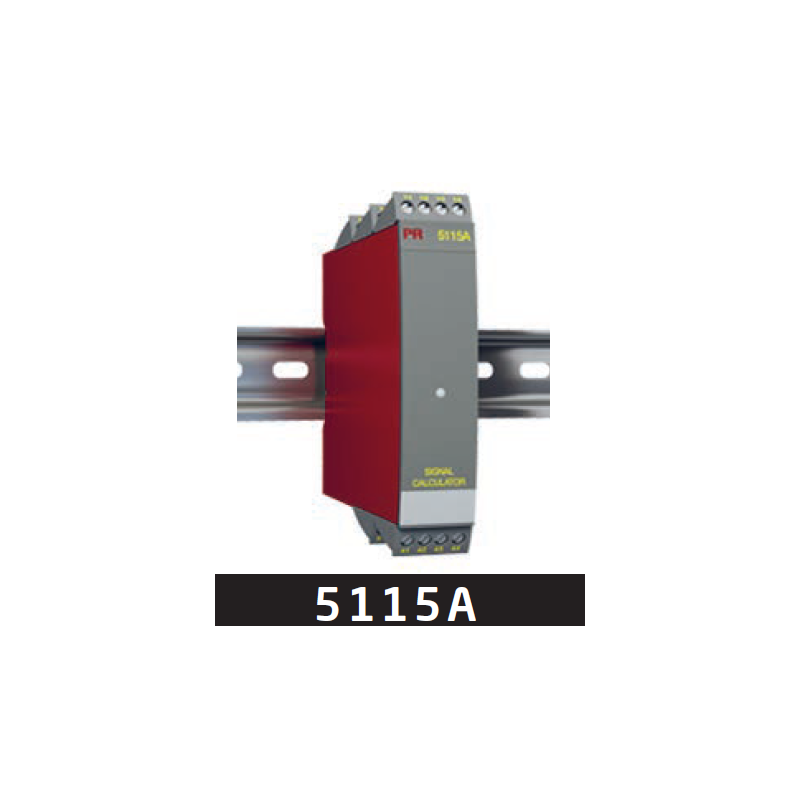

Signal calculator 5115A
lei4,747.86
Tax included
Price excluding VAT: lei3,923.85
Delivery: 1- 2 days
In stock available in Iași, RO: 1 items
5115A
- Redundancy measurement with 2 input signals
- Signal calculator with the four arithmetical operations
- Duplication of the input signal
- Input for RTD, Ohm, TC, mV, mA, and V
- Universal supply by AC or DC
Application
- Redundancy measurement of temperature by means of two sensors, where the secondary sensor takes over the measurement when a sensor error occurs on the primary sensor.
- Duplication of the input signal, e.g. from a temperature sensor or an analog process signal to two separate analog outputs.
- Signal calculator with four arithmetical operations: Addition, subtraction, multiplication and division.
- Example: Differential measurement: (Input 1 * K1) - (Input 2 * K2) + K4
- Example: Average measurement: (Input 1 * 0.5) + (Input 2 * 0.5) + K4
- Example: Different functions on the outputs: Output 1 = input 1 - input 2, and Output 2 = input 1 + input 2
- Power supply for 2-wire transmitters.
Technical characteristics
- Within a few seconds the user can program PR5115A to a selected application using the configuration program PReset.
- A green front LED indicates normal operation, sensor error on each sensor, and functional error.
- Continuous check of vital stored data for safety reasons.
- 5-port 3.75 kVAC galvanic isolation.
Mounting / installation
- Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without any distance between neighboring units, up to 42 devices can be mounted per meter.
PR 5115A documentation and configuration
To select the inputs, outputs and calculation function, consult the official PR 5115A documentation: datasheet, manual and safety note. Check the documentation version applicable to your unit before connection and configuration.
How is PR 5115A configured?
The manufacturer specifies programming with PReset and the PR 5909 Loop Link interface. Confirm the available programming equipment before ordering. For guidance on your signals and application, contact ATSEN.
5115A
1 Item
Data sheet
- Input
- Cold junction compensation: Internal/external
Lin. R, measurement range / min. span: 0...5000 Ω / 30 Ω
Max. offset: 50% of selec. max. value
Potentiometer: 200 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / 25°C
Reference voltage / 2-wire supply :2.5 VDC / 17.1 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...250 VDC / 5 mV
mA, measurement range / min. span: 0...100 mA / 4 mA
mV, measurement range / min. span: -150...+150 mV / 5 mV - Output
- Load (@ current output): ≤ 600 Ω
Load (@ voltage output) : ≥ 500 kΩ
V, signal range / min. span: 0...10 VDC / 0.5 VDC
mA, signal range / min. span: 0...23 mA / 10 mA - Technical Specifications
- Accuracy: ±0.05% of span
Ambient temperature: -20...+60°C
Channels: 2
Isolation voltage, test / operation: 3.75 kVAC / 250 VAC
Max. required power, 1 / 2 channels: 2.1 W / 2.8 W
NAMUR NE21, NE43
Programming: 5909 + DIP-switch
Response time: 250 ms...60 s
Signal dynamics, input / output: 22 bit / 16 bit
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient: ≤ ±0.01% of reading / °C - Approvals
- ATEX, Zone 2 : No
CCC: No
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2 : No
INMETRO, Zone 2: No
SIL 2 Full Assessment IEC 61508 :No
UKEX, Zone 2 : No
UL 61010 / 508 / 913: No - Application guide
- 4...20 mA Tx input : Yes
Active / passive current output : Yes/Yes
Analog / relay output: Yes/No
Bipolar mA / V input: Yes/Yes
Buffered voltage output: Yes
Custom sensor linearization: Yes
Lin. R / potentiometer input : Yes/Yes
Process signal calibration:Yes
mA / V / temperature input : Yes/Yes/Yes
New
Comments (0)
No customer reviews for the moment.
