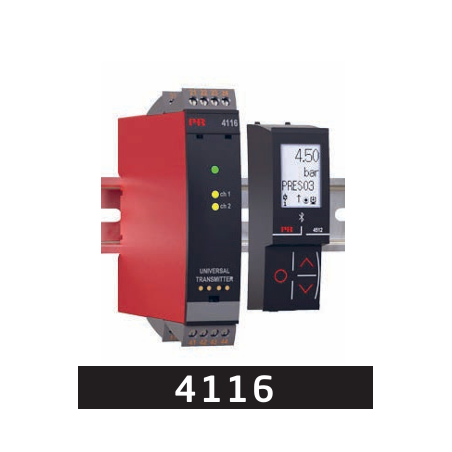

Universal transmitter 4116

lei1,537.85
Tax included

Price excluding VAT: lei1,270.95

Free delivery in Romania. In-stock products are dispatched on the next working day after bank-transfer payment confirmation. Transit: up to 2 working days from dispatch. Delivery details.

In stock available in Iași, RO: 7 items

4116

  • Input for RTD, TC, Ohm, potentiometer, mA and V
  • 2-wire supply > 16 V
  • FM-approved for installation in Div. 2
  • Output for current, voltage and 2 relays
  • Universal AC or DC supply

Separate accessory: the PR 4510 display/programming front is sold separately and is not included with PR 4116.

Quantity

Application

  • Linearized, electronic temperature measurement with RTD or TC sensor.
  • Conversion of linear resistance variation to a standard analog current / voltage signal, i.e. from solenoids and butterfly valves or linear movements with attached potentiometer.
  • Power supply and signal isolator for 2-wire transmitters.
  • Process control with 2 pairs of potential-free relay contacts and analog output.
  • Galvanic separation of analog signals and measurement of floating signals.
  • The 4116 provides the required failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
  • Failure rates for 4116 correspond to Performance Level “d” according to ISO-13849.

Technical characteristics

  • When 4116 is used in combination with the PR 4500 display series, all operational parameters can be modified to suit any application. As the 4116 is designed with electronic hardware switches, it is not necessary to open the device for setting of DIP-switches.
  • A green / red front LED indicates normal operation and malfunction. A yellow LED is ON for each active output relay.
  • Continuous check of vital stored data for safety reasons.
  • 4-port 2.3 kVAC galvanic isolation.

Mounting / installation / programming

  • Very low power consumption means units can be mounted side by side without an air gap – even at 60°C ambient temperature.
  • Configuration, monitoring, 2-point process calibration and more are accomplished using PR's 4500 series of detachable displays.
  • All programming can be password-protected.

PR 4116 technical documentation

Original manufacturer documents in English:

Manual 4116V106-UK is specified for devices from serial number 191019001. Check your device's serial number; for older units, consult the corresponding version on the manufacturer's page.

Technical articles

Other articles in which this product is mentioned

4116
4 Items

Data sheet

Input
Cold junction compensation: Internal/external
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer : 10 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / -
Reference voltage / 2-wire supply : - / 16 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA
Output
Load (@ current output) ≤ 800 Ω
Load (@ voltage output) : n/a
Relays: 2 x SPST, AC: 500 VA
V, signal range / min. span 0...10 VDC / 0.8 VDC
mA, signal range / min. span 0...23 mA / 16 mA
Technical Specifications
Accuracy ±0.1% of span
Ambient temperature:-20...+60°C
Channels: 1
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power : 2.5 W
NAMUR NE21, NE43
Programming: 4500 series devices
Response time: 400 ms
Signal dynamics, input / output: 24 bit / 16 bit
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient ±0.01% of span / °C
Approvals
ATEX, Zone 2 : No
CCC: No
DNV / EU-RO marine : Yes/Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2 : No
SIL 2, Hardware Assessment: Yes
UKEX, Zone 2 : No
UL 61010 / 508 : No/Yes
Application guide
4...20 mA Tx input : Yes
Active / passive current output: Yes/No
Analog / relay output: Yes/Yes
Bipolar mA / V input : No
Buffered voltage output: No
Custom sensor linearization: No
Lin. R / potentiometer input : Yes/Yes
Power rail option: No
Process signal calibration:Yes
V-curve function: No
mA / V / temperature input : Yes/Yes/Yes
