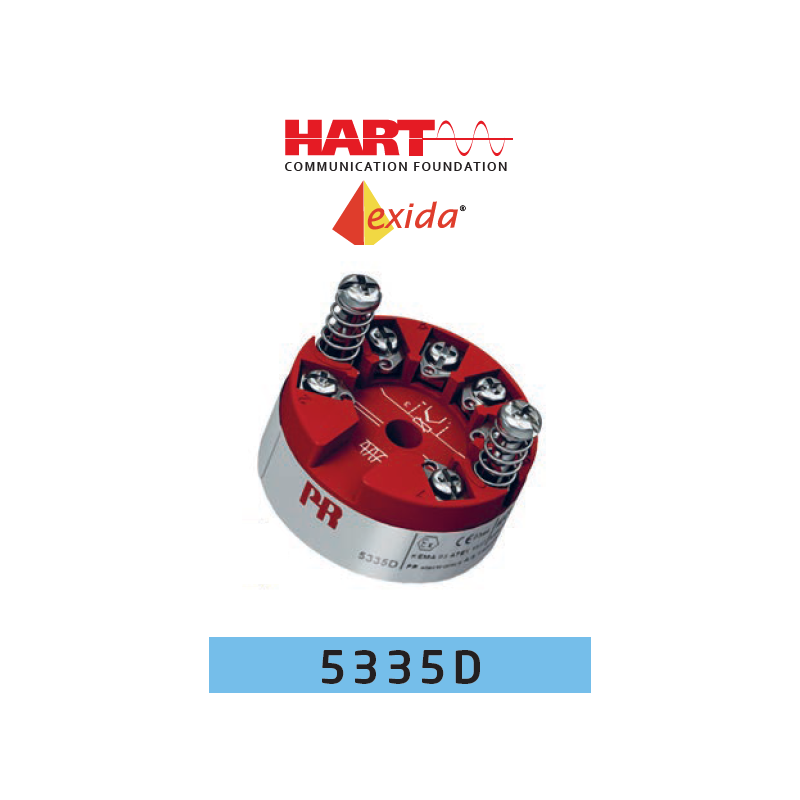

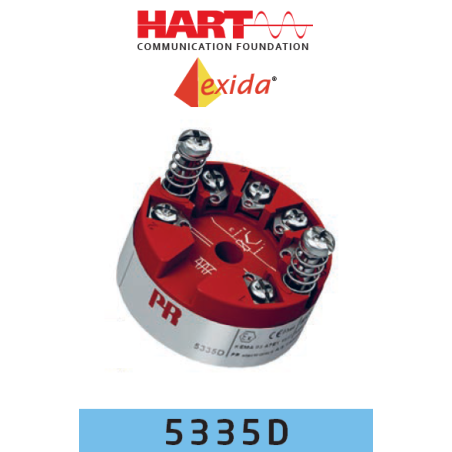

2-wire transmitter with HART 5 protocol 5335D
lei2,820.51
Tax included
Price excluding VAT: lei2,331.00
Delivery: 1- 2 days
In stock available in Iași, RO: 2 items
5335D
- RTD, TC, Ohm, or mV input
- Extremely high measurement accuracy
- HART 5 protocol
- Galvanic isolation
- For DIN form B sensor head mounting
Application
- Linearized temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor.
- Difference or average temperature measurement of 2 resistance or TC sensors.
- Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
- Amplification of a bipolar mV signal to a standard 4...20 mA current signal.
- Connection of up to 15 transmitters to a digital 2-wire signal with HART communication.
Technical characteristics
- Within a few seconds the user can program PR5335D to measure temperatures within all ranges defined by the norms.
- The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
- The 5335D provides the required failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
- Continuous check of vital stored data for safety reasons.
- Sensor error detection according to the guidelines in NAMUR NE89.
Mounting / installation
- For DIN form B sensor head mounting.
5335D
2 Items
Data sheet
- Input
- Cold junction compensation: Internal/external
Lin. R, measurement range / min. span: 0...7000 Ω / 25 Ω
RTD, measurement range / min. span: -200...+850°C / 10°C
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
mV, measurement range: -800...+800 mV
mV, min. span: 2.5 mV - Output
- mA, signal range / min. span: 3.5...23 mA / 16 mA
- Technical Specifications
- Accuracy: ±0.05% of span
Ambient temperature: -40...+85°C
Channels: 1
Isolation voltage, test / operation: 1500 VAC / 50 V
Max. required power: 0.7 W
NAMUR: NE21, NE43, NE89
Programming: 5909 / HART 5
Response time: 1...60 s
Signal dynamics, input / output: 22 bit / 16 bit
Supply voltage, DC: 8...30 VDC
Temperature coefficient: ±0.005% of span / °C - Approvals
- ATEX: Yes
CSA: Yes
DNV / EU-RO marine: Yes/No
EAC Ex: No
FM: Yes
IECEx: Yes
INMETRO: Yes
NEPSI: No
SIL 2/3 Full Assessment IEC 61508: No
SIL Hardware Assessment: Yes - Application guide
- Custom sensor linearization: Yes
Dual input (4 terminals): Yes
Galvanically isolated: Yes
HART protocol / bus communication: Yes/No
Lin. R / potentiometer input: Yes/No
Loop-powered: Yes
Process signal calibration:Yes
RTD / TC / mV input: Yes/Yes/Yes
mA output: Yes
