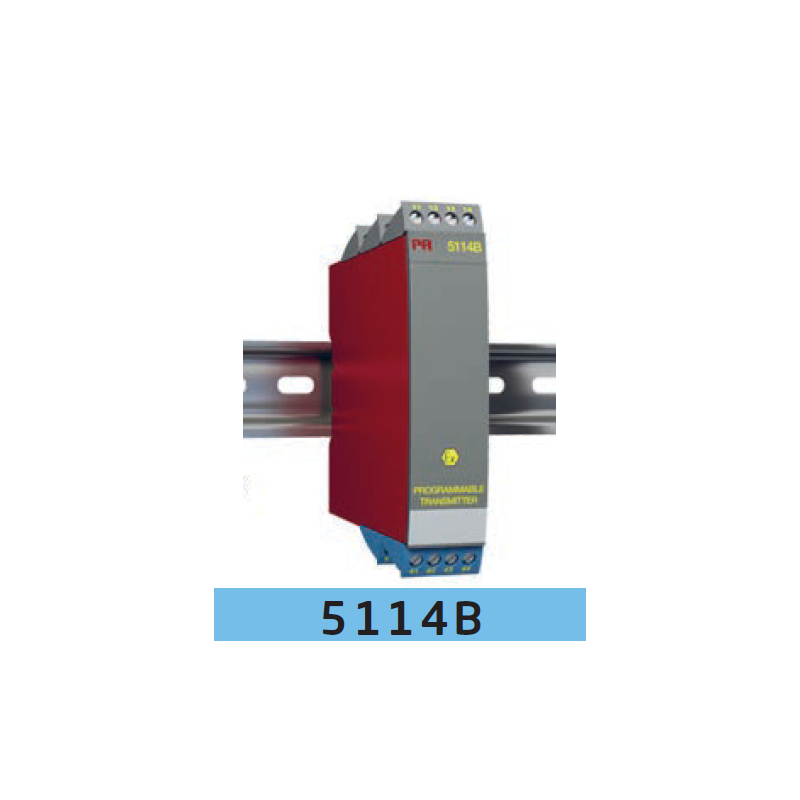

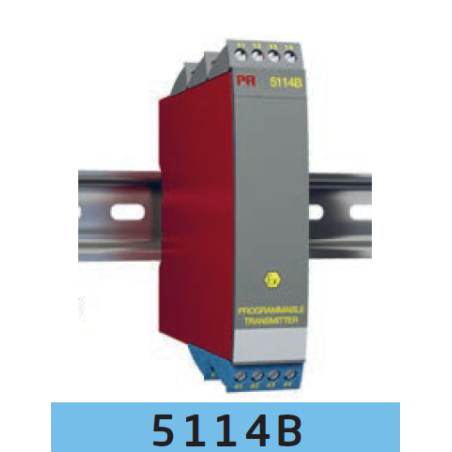

Programable transmitter 5114B1B
lei4,788.15
Tax included
Price excluding VAT: lei3,957.15
Delivery: 1- 2 days
In stock available in Iași, RO: 2 items
5114B1B
- 2-channel versions
- Input for RTD, Ohm, TC, mV, mA, and V
- Universal supply by AC or DC
Advanced features
- The 5114 transmitter can be configured using the PReset software and the Loop Link communications unit.
Application
- Jumper selectable inputs for current/voltage or temperature.
- Programmable current (0...100 mA) and voltage (0...250 VDC) inputs.
- Linearized, electronic temperature measurement.
- Conversion of linear resistance variation e.g, from solenoids and butterfly valves or linear movements with attached potentiometer.
- 17.1 VDC loop and 2.5 VDC potentiometer supplies.
- Automatic 4- / 3-wire or programmable 2-wire cable compensation.
- Configurable sensor error detection including NAMUR NE43.
Technical characteristics
- Active or Passive current output and selectable voltage output. Separation of circuits in PELV/SELV installations.
Planning the signal conversion
For the two-channel 5114B1B, identify the sensor or signal connected to each channel and the output expected by the receiving equipment. Check the input jumper arrangement together with the software configuration; both belong to the setup process. When using a temperature sensor, include its wiring method and the required sensor-error response in the configuration review. Retain a record of the final settings for maintenance and future replacement.
5114B1B
2 Items
Data sheet
- Input
- Lin. R, measurement range / min. span: 0...5000 Ω / 30 Ω
Max. offset: 50% of selec. max. value
Potentiometer: 200 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / 25°C
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...250 VDC / 5 mV
mA, measurement range / min. span: 0...100 mA / 4 mA
mV, measurement range / min. span: -150...+150 mV / 5 mV - Output
- Load (@ current output): ≤ 600 Ω
Max. offset: 50% of selec. max. value
V, signal range / min. span: 0...10 VDC / 0.5 VDC
mA, signal range / min. span: 0...23 mA / 10 mA - Technical Specifications
- Accuracy: ±0.05% of span
Ambient temperature: -20...+60°C
Channels: 2
Isolation voltage, test / operation: 3.75 kVAC / 250 VAC
Max. required power, 1 / 2 channels: 2.1 W / 2.8 W
NAMUR NE21, NE43
Programming: 5909 + DIP-switch
Response time: 250 ms...60 s
Signal dynamics, input / output: 22 bit / 16 bit
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX: Yes
CSA: No
DNV: Yes
EAC Ex: Yes
FM: No
IECEx: No
UL 61010 / 508: No - Application guide
- 4...20 mA Tx input : Yes
AI barrier: Yes
Active / passive mA output: Yes/Yes
Lin. R / potentiometer input : Yes/Yes
Process signal calibration:Yes
RTD / TC input: Yes/Yes
mA / V / mV input: Yes/Yes/Yes
mA / V / relay output: Yes/Yes/No
