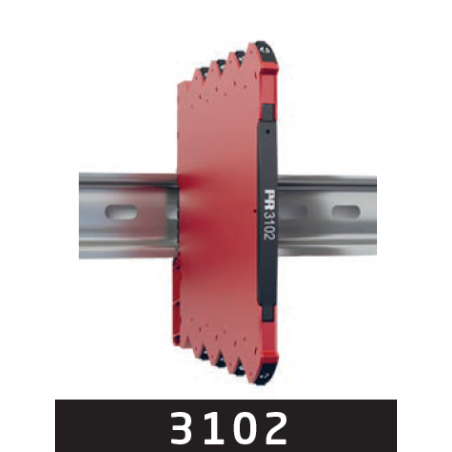

Pt100 converter 3102
lei752.14
Tax included
Price excluding VAT: lei621.60
Delivery: 1- 2 days
In stock available in Iași, RO: 3 items
3102
- Excellent accuracy, better than 0.1% of span
- Excellent EMC performance and 50/60 Hz noise suppression
- Selectable < 30 ms / 300 ms response time
- Pre-calibrated temperature ranges selectable via DIP switches
- Slimline 6.1 mm housing
Functional highlights
- Temperature converter which measures a standard 2-, 3- or 4-wire Pt100 temperature sensor, and provides an analog current or voltage output signal.
- All terminals are over-voltage protected, polarity protected and short-circuit protected.
- The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.
Technical highlights
- Flexible 24 VDC (±30%) supply via connectors.
- Excellent conversion accuracy in all available ranges, better than 0.1% of span.
- < 30 ms fast response time with simultaneous sensor error detection when selected.
- Selectable 300 ms response time when signal dampening is needed.
- Meeting the NAMUR NE21 recommendations, this device ensures top measurement performance in harsh EMC environments.
- The device meets the NAMUR NE43 standard defining out of range and sensor error output values.
- Excellent signal / noise ratio > 60 dB.
- A green front LED indicates normal operation, status of the input sensor and malfunction.
- Wide ambient temperature range: -25...+70°C.
Programming
- Easy configuration via DIP switches.
- Selectable DIP settings for easy configuration of more than 1000 factory calibrated measurement ranges.
Mounting / installation
- The narrow 6.1 mm housing allows up to 163 units per meter.
- Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
Technical articles
3102
3 Items
Data sheet
- Input
- RTD, measurement range / min. span: -200...+850°C / 10°C
Sensor connection, wires : 2 - 3 - 4 - Output
- Load (@ current output): ≤ 600 Ω
Load (@ voltage output): ≥ 10 kΩ
V, signal range / min. span: 0...10 VDC / 4 VDC
mA, signal range / min. span 0...23 mA / 16 mA - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature: -25...70°C
Channels: 1
Max. required power: 0.52 W
NAMUR NE21, NE43
Programming: DIP-switch
Response time: 30 ms
Signal dynamics, input / output: 23 bit / 18 bit
Supply voltage, DC: 16.8...31.2 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2: Yes
UKEX, Zone 2: Yes
UL 61010 / 508:Yes/No - Application guide
- Mounting in Zone 2 / DIV 2: Yes/Yes
RTD / TC / mV input: Yes/No/No
mA / V output: Yes/Yes
