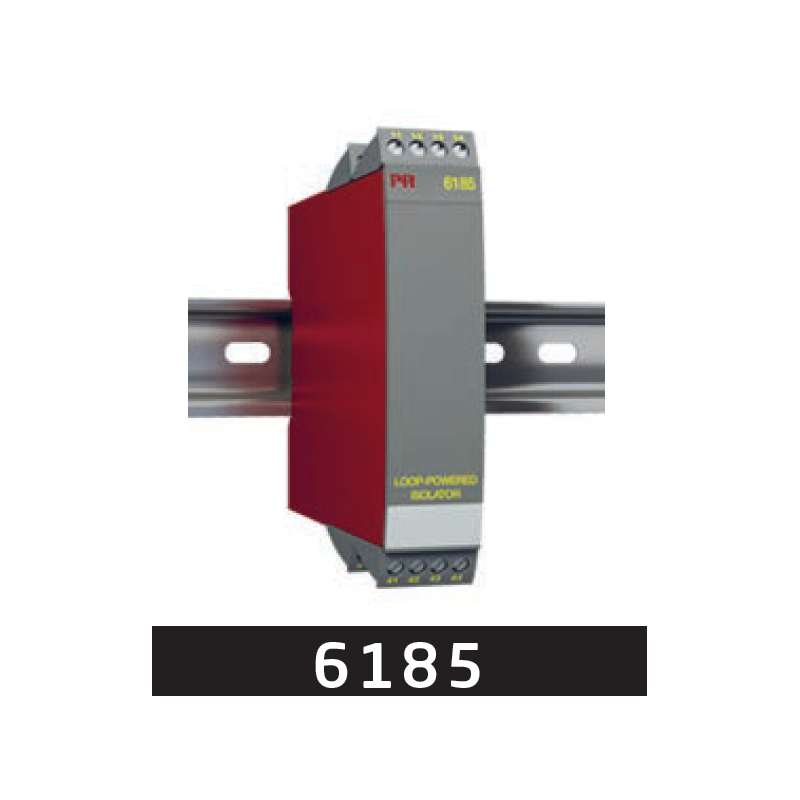

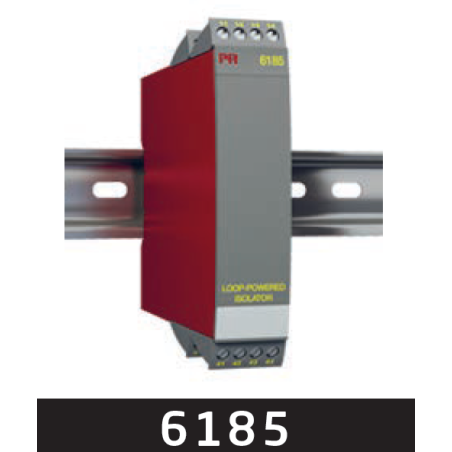

Loop-powered isolator 6185D

Name: Loop-powered isolator 6185D
Brand: PR Electronics
SKU: 6185D
Price: 2585.47 RON
Availability: InStock

lei2,585.47

Tax included

Price excluding VAT: lei2,136.75

Quantity

Last items in stock

Galvanic separation of analog current signals.
Elimination of ground loops and measurement of floating signals.
A competitive choice in terms of both price and technology for galvanic isolation of current signals to SCADA systems or PLC equipment.
Especially useful in applications necessitating an unproblematic transmission of current signals according to NAMUR (sensor error detection).

PR 6185 is powered by the measured signal and loads the loop with max.
1.8 VDC. The input is protected against overvoltage and polarity error.
The drop voltage for each channel can be calculated according to the following expression: Vdrop = 1.8 + (Iout. * Rload.
The output is voltage-limited to 15 VDC.
Inputs and outputs are floating and galvanically separated.

Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighboring units, up to 168 channels can be mounted per meter.

Technical articles

Reference 6185D

In stock 3 Items

Data sheet

Input: mA, measurement range / min. span: 0...23 mA / 1:1
Output: Load (@ current output): ≤ 600 Ω
mA, signal range / min. span: 0...23 mA / 1:1
Technical Specifications: Accuracy ±0.1% of span
Ambient temperature: -20...+60°C
Channels: 4
Isolation voltage, test / operation: 2 kVAC / -
Max. required power, 1 / 2 channels: 40 mW per channel
Programming: No
Response time: 4 ms
Signal dynamics, input / output: Analog signal chain
Supply voltage, AC / DC: - / ≤ 1.8 VDC
Temperature coefficient ±0.01% of span / °C
Approvals: ATEX, Zone 2 : No
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2 : No
UL 61010 / 508: No
Application guide: Active / passive input signal: Yes/No
Active / passive mA output: Yes/No
Signal repeater: Yes
mA / V output: Yes/No
