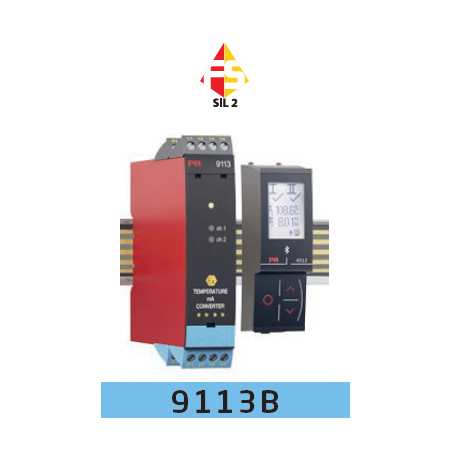

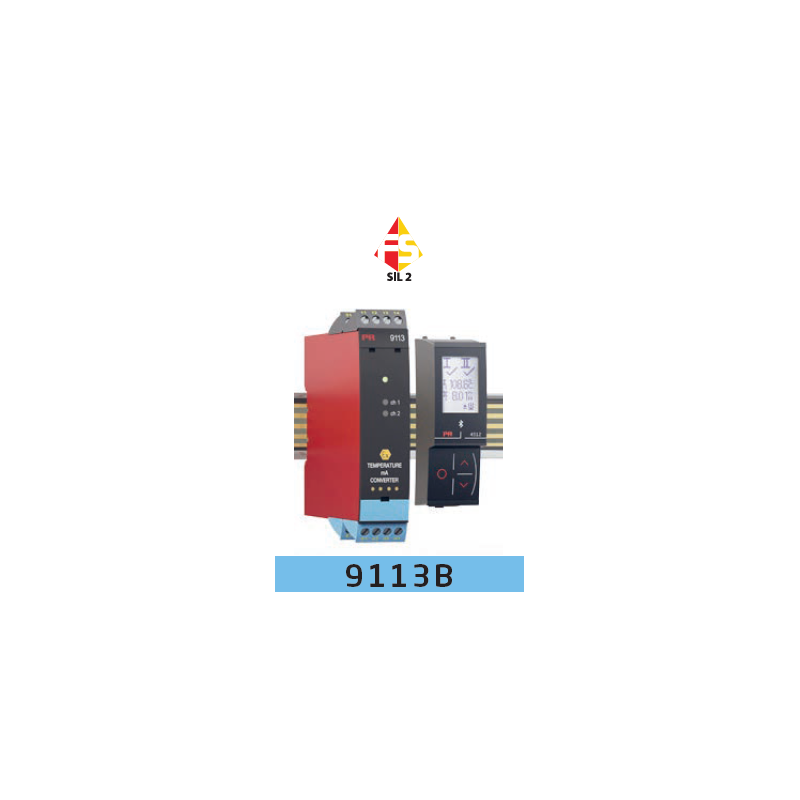

Temperature/mA converter 9113BB

Advanced features

• Configuration and monitoring by way of detachable display front (PR 4500); process calibration and signal simulation.
• Copying of the configuration from one device to others of the same type via the display front.
• TC inputs can use either the internal CJC or a terminal with a built-in Pt100 sensor (PR 5910Ex, channel 1 / PR 5913Ex, channel 2) for higher accuracy.
• Advanced monitoring of internal communication and stored data.
• SIL 2 functionality is optional and must be activated in a menu point.

Application

• 9113Bxx can be mounted in the safe area or in zone 2 / Class 1, Division 2 and receive signals from zone 0, 1, 2 and zone 20, 21, 22 including mining / Class I/II/III, Division 1, Gr. A-G.
• Conversion and scaling of temperature (Pt, Ni and TC) and active current signals.
• The 9113 has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508.
• Failure rates for 9113 correspond to Performance Level “d” according to ISO-13849.

Technical characteristics

• 1 green and 2 red front LEDs indicate operation status and malfunction.
• 2.6 kVAC galvanic isolation between input, output and supply.

Mounting

• The devices can be mounted vertically or horizontally without distance between neighbouring units.
