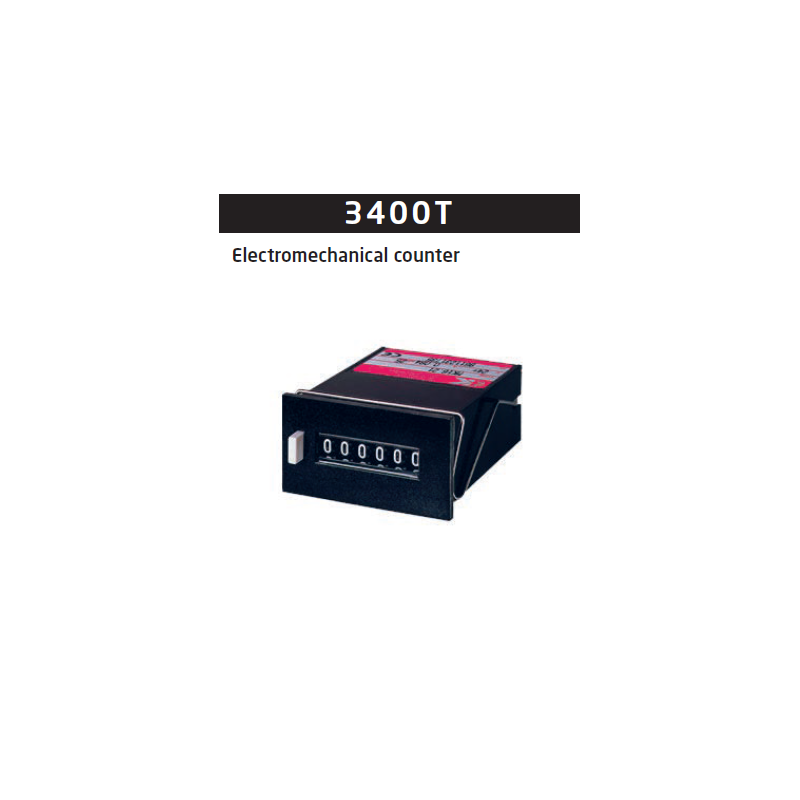

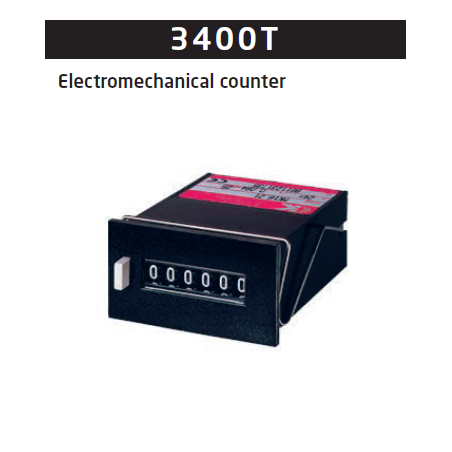

Electromechanical counter, 6-digit 3400T

Application

• Totalizing of pulses from e.g. energy and flow measurements.

Technical characteristics

• Dimensions: 52 x 28 x 80 mm
• Cut-out: 48.5 x 24.5 mm
• Current consumption: 80 mA
• Max. frequency: 25 ms
• Connection: Solder terminals
• Min. pulse width: 24 ms
• Min. pulse interval: 16 ms

The PR 3400T is an electromechanical six-digit counter for a 24 VDC supply, with front reset and pulse totalising for energy or flow applications. Its dimensions are 52 × 28 × 80 mm, with a 48.5 × 24.5 mm panel cutout, 80 mA consumption and solder terminals.

Before mounting, verify the panel opening, available depth, supply and wiring. Check that the pulse source meets the stated minimum pulse width of 24 ms and minimum interval of 16 ms, then follow the current documentation for connection and use.
