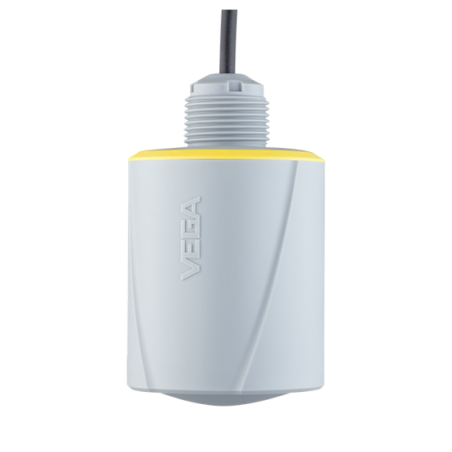

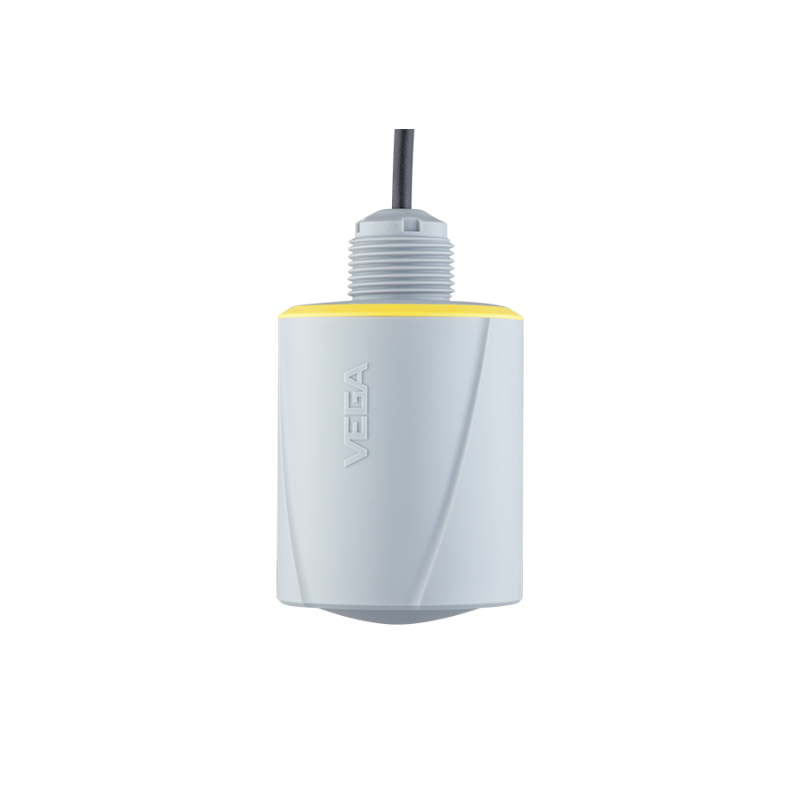

VEGAPULS C23 PSC23.XXXXXFAHB
lei6,440.16
Tax included
Price excluding VAT: lei5,322.45
Delivery: 1- 2 days
In stock available in Iași, RO: 1 items
VEGAPULS C23 PSC23.XXXXXFAHB
- Wired radar sensor for continuous level measurement
- For standard measuring tasks, IP66/IP68, Type 6P
Application area
Axial cable outlet, measuring range up to 30 m, accuracy ±2 mm, 4 ... 20 mA, HART, SDI-12 or Modbus output, Ex-approval optional
VEGAPULS C 23 is the ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required. It is particularly suitable for use in water treatment, pumping stations and rain overflow basins, for flow measurement in open channels and level monitoring. In bulk solids, the sensors are used in medium-sized bulk solids silos, segmented vessels or open heaps.
Your benefit
- Exact measurement results independent of medium, process and environmental conditions
- Unaffected by vessel installations due to very good signal focusing
- Maintenance-free operation due to non-contact 80 GHz radar technology
This configuration uses two-wire 4 ... 20 mA/HART electronics, Bluetooth operation, a G1 cable-side thread and a 5 m PUR cable.
RA - 222 22R
1 Item
Data sheet
- Bluetooth operation
- Yes
- Explosion protection
- without, for Ex-free areas (CE, RCM)
- Electronics
- Two-wire 4 ... 20 mA/HART
- Thread cable side
- Thread G1
- Cable material / Length
- PUR / 5m (approx. 16ft)
