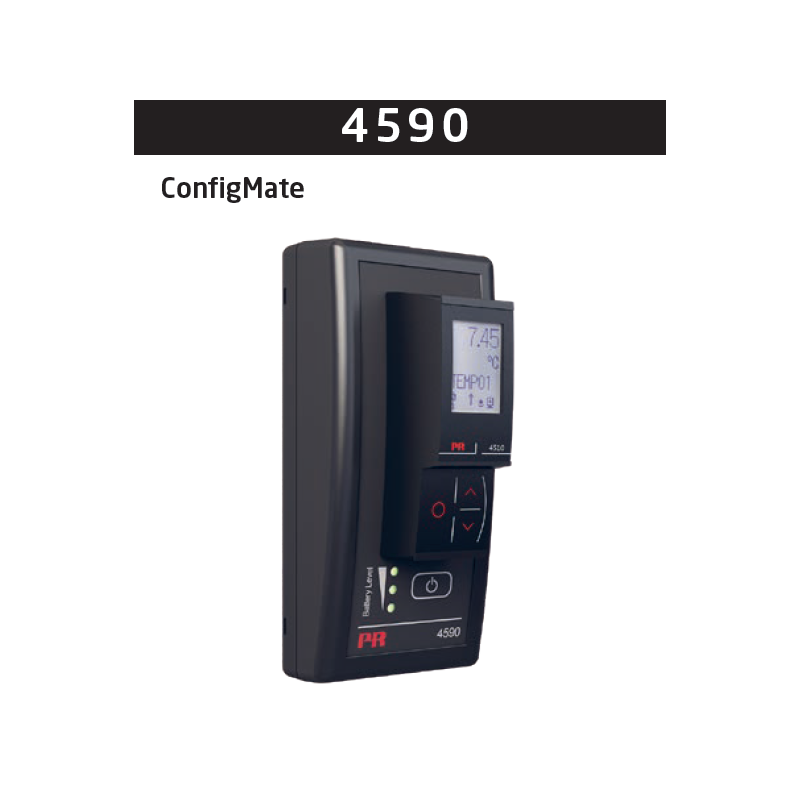

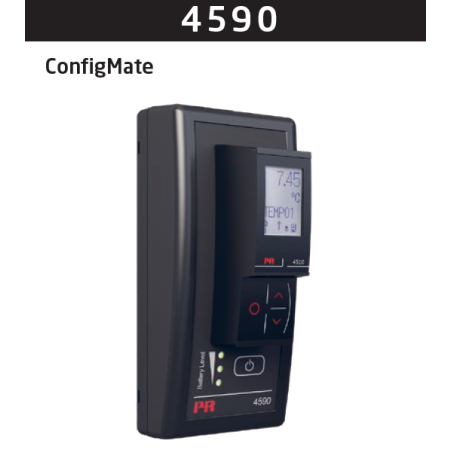

ConfigMate 4590

Application

• The ConfigMate 4590 is used along with the detachable PR 4500 programming displays.
• 4590 can operate as a docking station for the PR 4500 - allowing the PR 4500 to be connected to a PC and the PR PReset software.
• 4590 works standalone in adaptor mode for programming a 3114 / 3225 unit.
• Upload and download function is for backup and restore purposes on selected PR 4000 and 9000 devices.
• The unit must be used together with PR PReset software to upload and download configuration parameters from a PR 4500 display.

Technical characteristics

• In docking station mode the 4590 will be powered from the PC’s USB power source.
• The included USB-B to a 2.5 mm jack cable must be used for connecting to a 3114 / 3225.
• In docking mode the included USB-B to USB-A cable must be used for connecting to a PC.
• 3 x 1.5 V AAA batteries must be inserted for powering the 4590 in adapter mode.
• Indication of battery level is displayed via the 3 green front LEDs.
• The 4590 will automatically detect if it is not in use, and will consequently shut itself down to conserve battery power.
• Battery life in adaptor mode is approximately 1 year of daily use, depending upon battery type.
