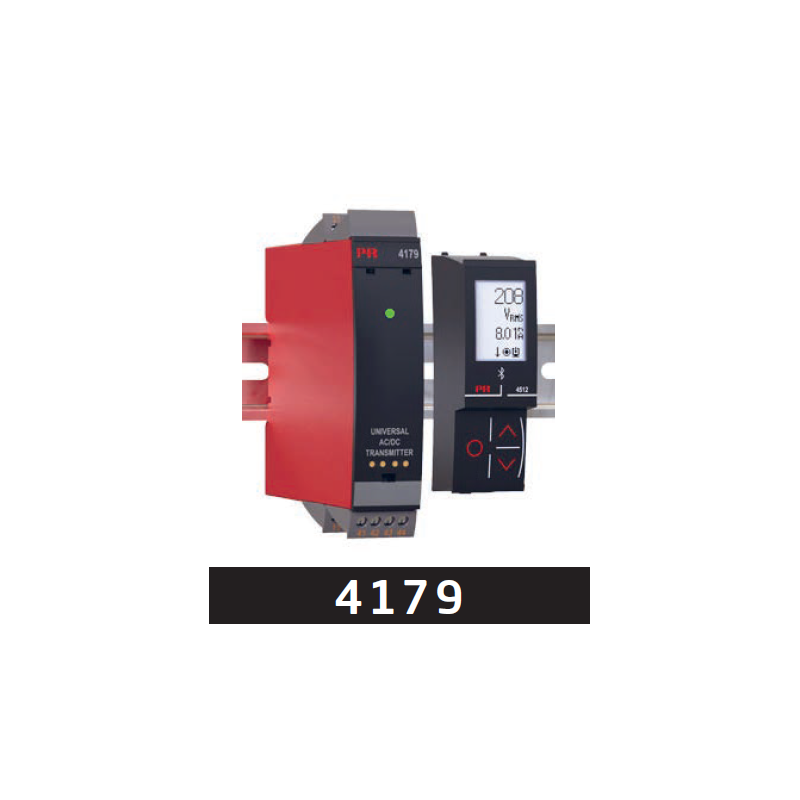

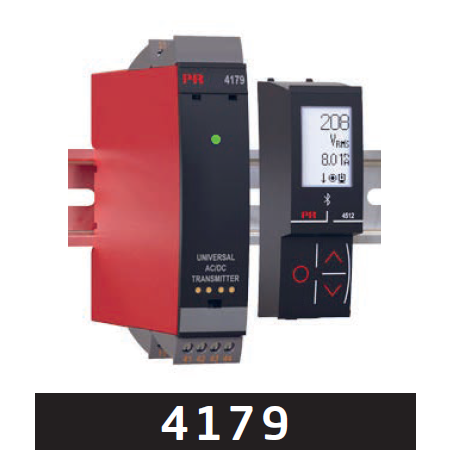

Universal AC / DC transmitter 4179

Application

• The 0...5 AAC RMS range makes it possible to accurately measure a typical current transformer.
• The 0...300 VAC RMS range allows accurate supply voltage monitoring.
• The 4179 measures standard input ranges, and can be freely configured to customer-defined input range.
• Converts narrow AC current / voltage inputs to wide bipolar or unipolar outputs, e.g. 0...1 VAC RMS input = ±10 volt or 4...20 mA output with a minimum span of 0.5 AAC RMS or 0.5 VAC RMS.
• Configurable input limits control the output value for increased safety.
• The 4179 provides the required failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
• Failure rates for 4179 correspond to Performance Level “d” according to ISO-13849.

Technical characteristic

• The latest analog and digital techniques are used to obtain maximum accuracy and immunity to interference.
• Possibility of output safety feedback by selecting S4...20 mA output.
• The current output can drive up to 800 Ohms, with an adjustable response time of 0.0…60.0 seconds.
• Exceptional mA output load stability of <0.001% of span / 100 Ohm.
• Meets the NAMUR NE21 recommendations, ensuring high accuracy in harsh EMC environments.
• Meets the NAMUR NE43 recommendations, allowing the control system to easily detect an input error.
• Tested to a high 2.3 kVAC, 3-port galvanic isolation level.
• Excellent signal to noise ratio of > 60 dB.

Mounting / installation / programming

• Very low power consumption means units can be mounted side by side without an air gap – even at 60°C ambient temperature.
• Configuration, monitoring, 2-point process calibration and more are accomplished using PR's 4500 series of detachable displays.

Technical articles

• PR 4179 and Optimetria: electrical measurements with PC history
• PR 4179: three criteria for monitoring AC circuits

Other articles in which this product is mentioned

• Conveyor monitoring: speed, flow and transported volume
