Router RUT956

Name: Router RUT956
Brand: TELTONIKA
SKU: RUT956100000
Price: 1658.73 RON
Availability: InStock

lei1,658.73

Tax included

Price excluding VAT: lei1,370.85

Delivery: 1- 2 days

In stock available in Iași, RO: 1 items

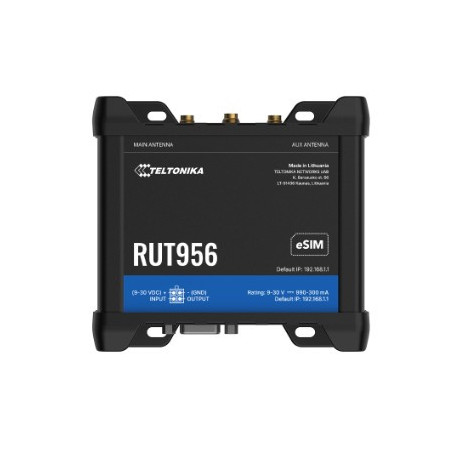

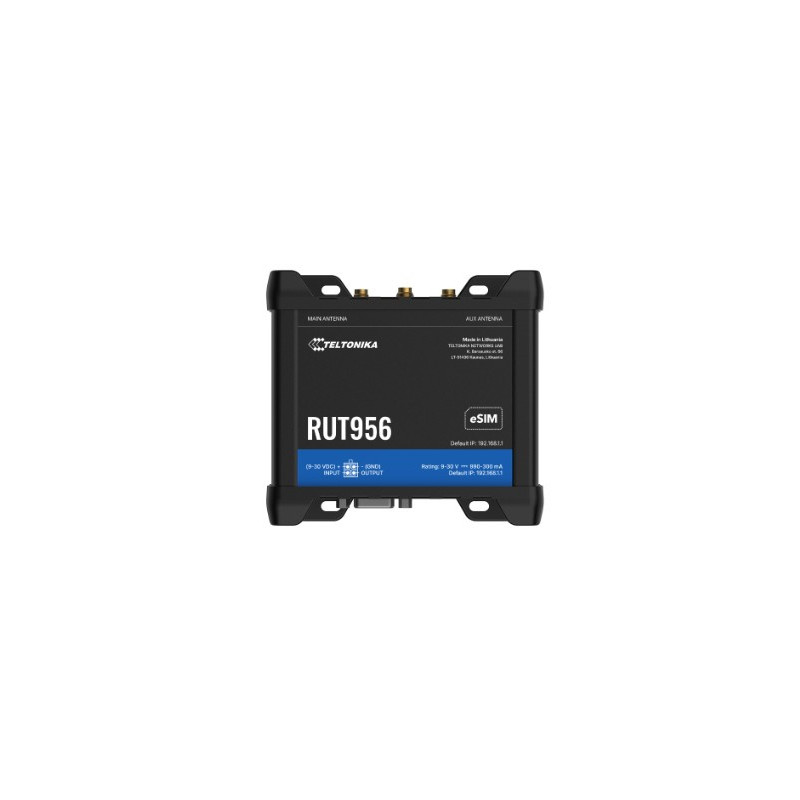

Router RUT956

INDUSTRIAL CELLULAR ROUTER

Quantity

Last items in stock

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

CONNECTIVITY

4G LTE (Cat 4), 3G, 2G

DUAL SIM

With auto failover, backup WAN and other switching scenarios

MULTIPLE INTERFACES

Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs

GNSS

Global Navigation Satellite System for location services and time synchronization

For more details, you can access : RUT956 RS232 / RS485 Cellular Router

Connecting mixed industrial equipment

RUT956 brings Ethernet and serial equipment into the same installation, making it relevant when a site contains both network devices and controllers using RS232 or RS485. Plan which connection will be primary and which will provide backup, then configure the dual-SIM and WAN switching scenarios accordingly. For GNSS applications, check antenna placement and the required location or time data. Confirm serial parameters and the I/O signals used for equipment control before commissioning.

Reference RUT956100000

In stock 1 Item

Data sheet

Input: 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V; with 4-20 mA capability), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V logic high)
Output: 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch: Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Wi-Fi users: Up to 100 simultaneous connections
Ethernet: WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards , supports auto MDI/MDIX LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP()S, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Protocol: HTTP(S), MQTT, Azure MQTT
Supported modes: Station,Outstation
Connector: 4-pin industrial DC power socket
Casing material: Aluminium housing, plastic panels
Dimensions (W x H x D): 110 x 50 x 100 mm
Weight: 287 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
