Gateway TRB145
lei752.14
Tax included
Price excluding VAT: lei621.60
Delivery: 1- 2 days
In stock available in Iași, RO: 1 items

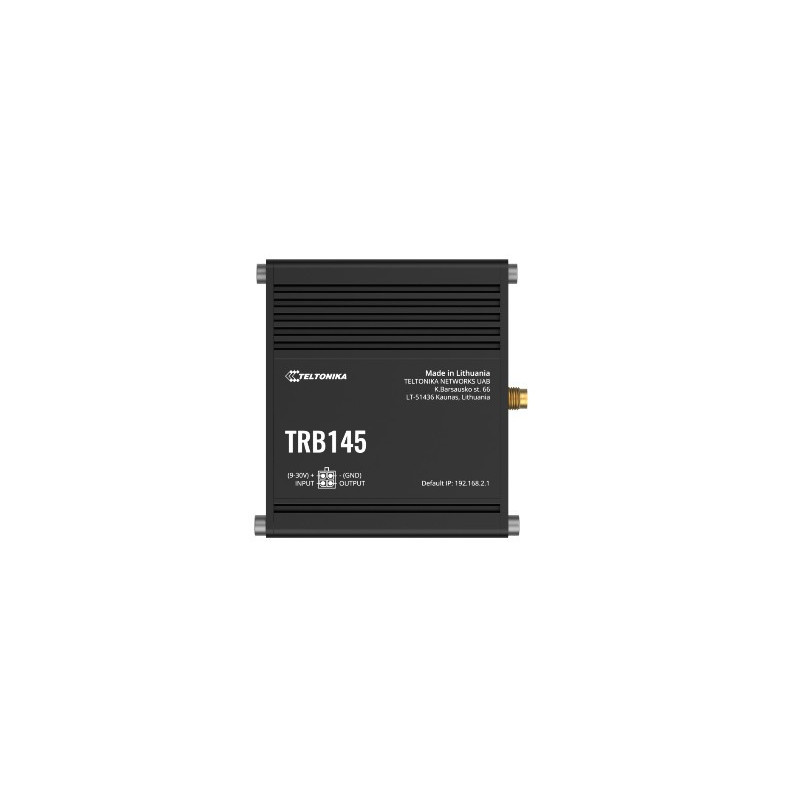

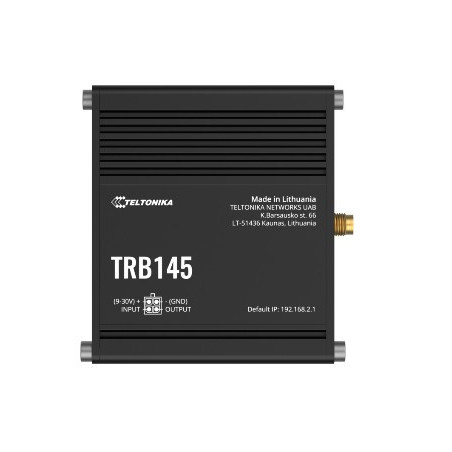

Gateway TRB145
INDUSTRIAL RUGGED LTE RS485 GATEWAY
TRB145 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE connectivity that comes with a widely used RS485 interface for remote management of industrial equipment.
CONNECTIVITY
- 4G/LTE (Cat 1), 3G, 2G
COMPACTNESS
- Small size, easy installation
RS485
- Equipped with RS485 for serial communication
PROTOCOLS
- Compatible with industrial DNP3 & Modbus communication protocols
For more details, you can access : TRB145 RS485 IoT Gateway
Selection and integration
Use the RS485 interface to connect compatible serial equipment to a cellular communication path. For an existing Modbus or DNP3 installation, document the device addresses and communication parameters before configuring the gateway. Check the mobile coverage available at the site and the antenna position inside or outside the enclosure. During commissioning, verify that the remote system receives the expected measurements and that communication resumes after an interruption. Match the power supply, serial wiring and mounting arrangement to the manufacturer's installation instructions for the TRB145.
TRB145003000
1 Item
Data sheet
- Mobile module
- 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
- Routing
- Static routing
- Network protocols
- TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
- Protocol
- HTTP(S), MQTT, Azure MQTT
- Supported modes
- Station,Outstation
- Casing material
- Aluminium housing
- Dimensions (W x H x D)
- 74.5 x 25 x 64.4 mm
- Weight
- 130 g
- Mounting options
- DIN rail, wall mount, flat surface (all require additional kit)
- Operating temperature
- -40 °C to 75 °C
- Operating humidity
- 10% to 90% non-condensing
- Ingress Protection Rating
- IP30
- Modbus MQTT Gateway
- Allows sending commands and receiving data from MODBUS Server through MQTT broker
Specific References
- MPN
- TRB145003000
