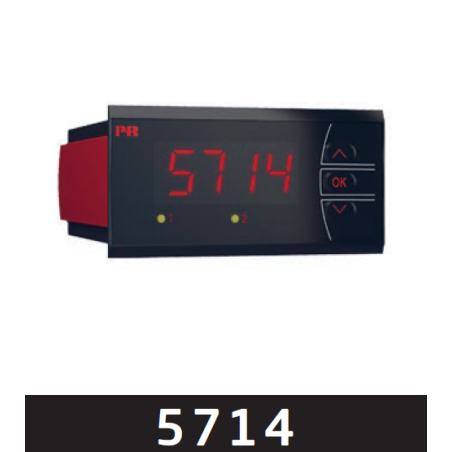

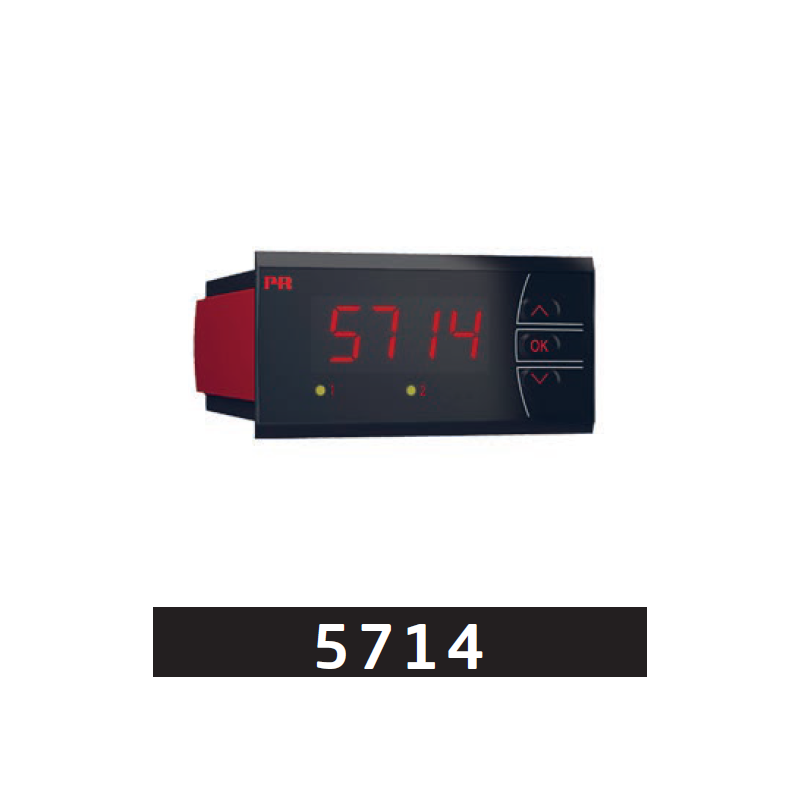

Programmable LED indicator 5714B

Name: Programmable LED indicator 5714B
Brand: PR Electronics
SKU: 5714B
Price: 1537.85 RON
Availability: InStock

lei1,537.85

Tax included

Price excluding VAT: lei1,270.95

Display for digital readout of current / voltage / resistance / temperature or potentiometer signals.
Process control with 2 potential-free relays and / or analog output.
For local readout in extremely wet atmospheres with a specially designed splash-proof cover.

4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
All standard operational parameters can be adjusted to any application by way of the front function keys.
Help texts in eight languages can be selected via a menu item.
PR 5714 is available fully-configured according to specifications ready for process control and visualization.
2.3 kVAC galvanic isolation between input, output and supply.
In versions with relay outputs the user can minimize the installation test time by activating / deactivating each relay independently of the input signal.

To be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X). For extra protection in extreme environments, PR5714 can be delivered with a specially designed splash-proof cover as accessory.

Reference 5714B

In stock 4 Items

Data sheet

Input: Cold junction compensation: Internal
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer : 10 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / -
Reference voltage / 2-wire supply: - /15 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA
Output: Display, digit / type: 4-digit / LED
Display, digit height: 13.8 mm
Relay: 2 x SPDT, AC: 500 VA
mA, signal range / min. span 0...23 mA / 16 mA
Technical Specifications: Accuracy: ≤ ±0.1% of reading
Ambient temperature:-20...+60°C
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power: 3.5 W
NAMUR: NE43
Programming: Front keys
Response time: 400 ms / 1 s
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient: ≤ ±0.01% of reading / °C
Approvals: ATEX, Zone 2 : No
DNV / EU-RO marine : Yes/Yes
EAC: Yes
UL 508: Yes
Application guide: 2 / 4 relay outputs: Yes/No
4...20 mA Tx input : Yes
Lin. R / potentiometer input : Yes/Yes
Process signal calibration:Yes
Temperature input: Yes
mA / V / mV input: Yes/Yes/No
mA output: Yes
