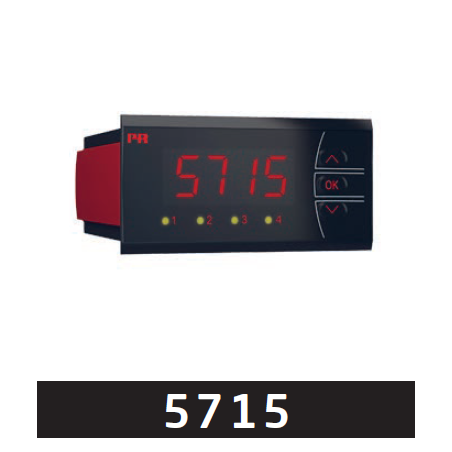

Programmable LED indicator 5715D
lei2,545.17
Tax included
Price excluding VAT: lei2,103.45
Delivery: 1- 2 days
In stock available in Iași, RO: 3 items
5715D
- D: Analog output and 4 relays
- 4-digit 14-segment LED display
- Input for mA, V, Ohm, RTD, TC and potentiometer
- Universal supply
- Programmable via front keys and PC
Application
- Display for digital readout of current / voltage / resistance / temperature or 3-wire potentiometer signals.
- Process control with 4 pairs of potential-free change-over relays and analog output.
- For tank level control, with the possibility of customer linearization ensuring correct level measurement and control in non-linear tanks.
Technical characteristics
- 4-digit LED indicator with 13.8 mm 14-segment characters. Max. display readout -1999...9999 with programmable decimal point and relay ON / OFF indication.
- All standard operational parameters can be adjusted to any application by way of the front function keys. When programming is carried out by way of a PC and the configuration program PReset, additional configuration options are available, such as customer-defined linearization and special input signals.
- Help texts in eight languages can be selected via a menu item.
- A menu item allows the user to minimize the installation test time for the relay outputs by activating / deactivating each relay independently of the input signal.
- 2.3 kVAC galvanic isolation between input, output and supply.
Mounting / installation
- To be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65 (type 4X). For extra protection in extreme environments, PR 5715 can be delivered with a specially designed splash-proof cover as accessory.
Technical articles
5715D
3 Items
Data sheet
- Input
- Cold junction compensation: Internal
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer: 10 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / -
Reference voltage / 2-wire supply: - /15 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA - Output
- Display, digit / type: 4-digit / LED
Display, digit height: 13.8 mm
Relay: 4 x SPDT, AC: 500 VA
mA, signal range / min. span 0...23 mA / 16 mA - Technical Specifications
- Accuracy: ≤ ±0.1% of reading
Ambient temperature:-20...+60°C
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power: 3.8 W
NAMUR: NE43
Programming: 5909 / front keys
Response time: 400 ms / 1 s
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient: ≤ ±0.01% of reading / °C - Approvals
- ATEX, Zone 2 : No
DNV / EU-RO marine: Yes/No
EAC: Yes
UL 508: Yes - Application guide
- 2 / 4 relay outputs: No/Yes
4...20 mA Tx input : Yes
Custom sensor linearization: Yes
Lin. R / potentiometer input : Yes/Yes
Process signal calibration:Yes
Temperature input: Yes
mA / V / mV input: Yes/Yes/No
mA output: Yes
