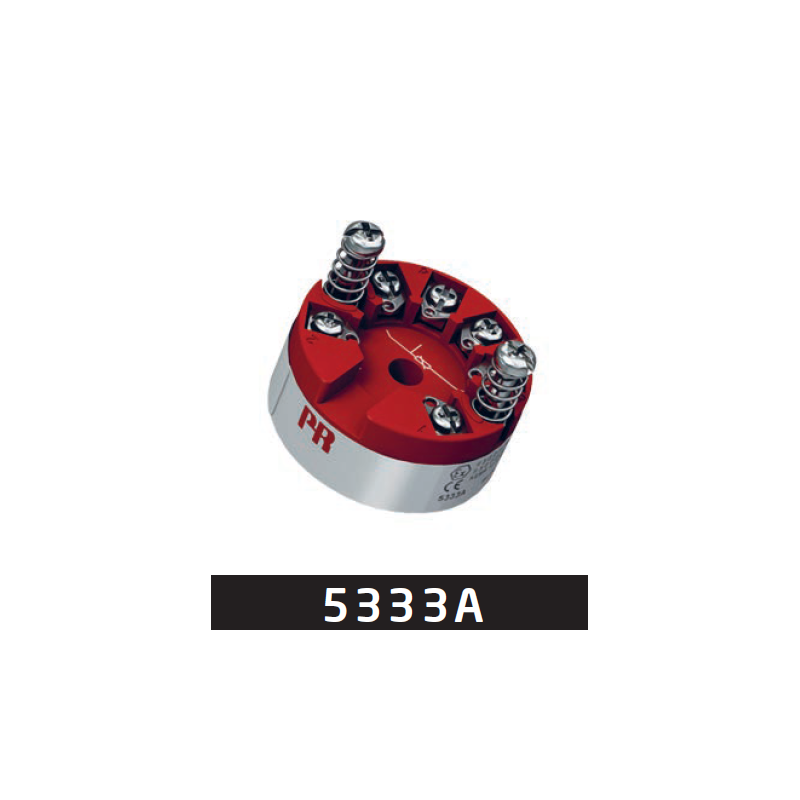

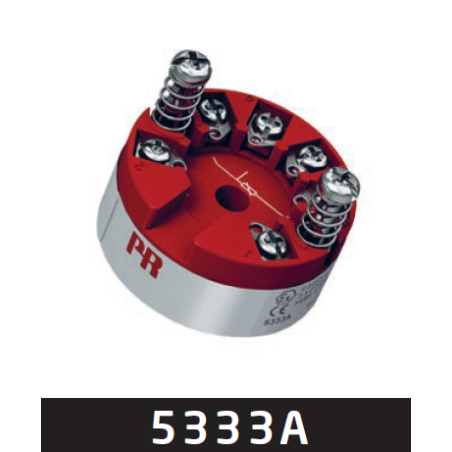

2-wire programmable transmitter 5333A

lei826.01
Tax included

Price excluding VAT: lei682.65

Delivery: 1- 2 days

In stock available in Iași, RO: 4 items

5333A

  • A: Zone 2 / DIV. 2
  • RTD or Ohm input
  • High measurement accuracy 3-wire connection
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Quantity

Application

  • Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.

Technical characteristics

  • Within a few seconds the user can program PR5333A to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.

Mounting / installation

  • For DIN form B sensor head or DIN rail mounting with the PR fitting type 8421.

Selection guide

PR 5333A converts Pt100 to Pt1000 or Ni100 to Ni1000 temperature signals, or linear resistance variation, to a standard analog current signal. Its RTD and resistance inputs include cable compensation for a 3-wire connection, and the transmitter is designed for DIN form B sensor-head mounting.

Technical articles

5333A
4 Items

Data sheet

Input
Lin. R, measurement range / min. span: 0...10 kΩ / 30 Ω
Max. offset: 50% of selec. max. value
RTD, measurement range / min. span: -200...+850°C / 25°C
Sensor connection, wires: 2 - 3
Output
mA, signal range / min. span: 3.5...23 mA / 16 mA
Technical Specifications
Accuracy ±0.1% of span
Ambient temperature: -40...+85°C
Channels: 1
Max. required power: 0.8 W
NAMUR: NE43
Programming: 5909
Response time: 0.33...60 s
Signal dynamics, input / output: 19 bit / 16 bit
Supply voltage, DC: 8...35 VDC
Temperature coefficient ±0.01% of span / °C
Approvals
ATEX, Zone 2: Yes
CSA, Zone 2 - DIV 2: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2: Yes
INMETRO, Zone 2: Yes
NEPSI: No
SIL Hardware Assessment: No
Application guide
Custom sensor linearization: Yes
Lin. R / potentiometer input: Yes/No
Loop-powered: Yes
Mounting in Zone 2 / DIV 2: Yes/No
Process signal calibration:Yes
RTD / TC / mV input: Yes/No/No
mA output: Yes
