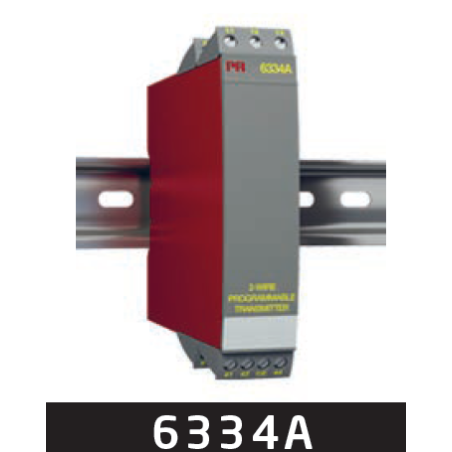

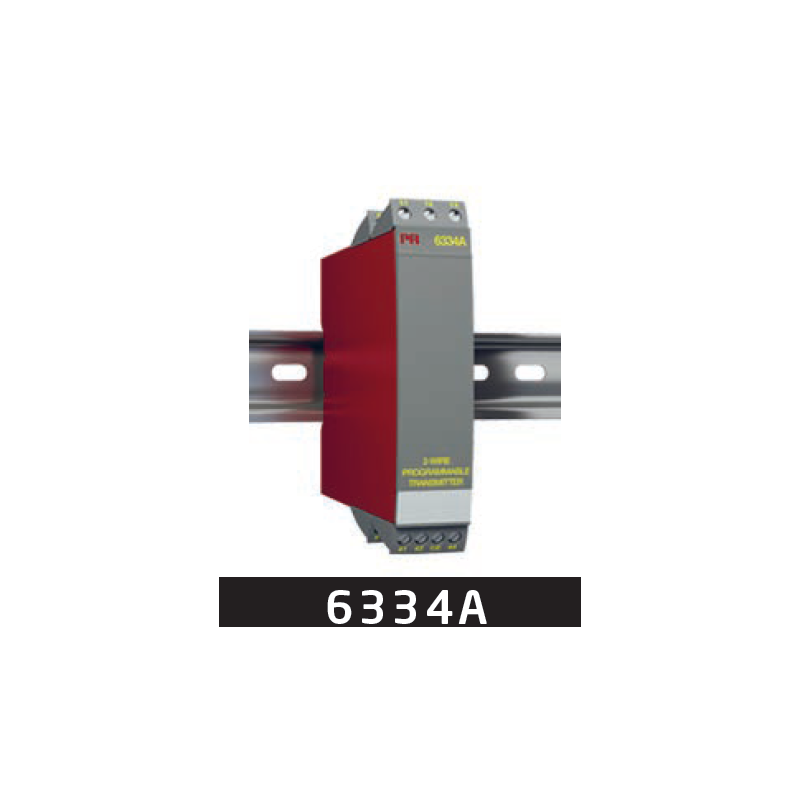

2-wire programmable transmitter 6334A2A

lei1,215.51
Tax included

Price excluding VAT: lei1,004.55

Delivery: 1- 2 days

In stock available in Iași, RO: 1 items

6334A2A

  • A: 1 channel version
  • TC input
  • High measurement accuracy
  • Galvanic isolation
  • Programmable sensor error value

Quantity
Last items in stock

Application

  • Linearized temperature measurement with TC sensor.
  • Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearized according to a defined linearization function.

Technical characteristics

  • Within a few seconds the user can program PR6334A to measure temperatures within all TC ranges defined by the norms.
  • Cold junction compensation (CJC) with a built-in temperature sensor.
  • A limit can be programmed on the output signal.
  • Continuous check of vital stored data for safety reasons.

Mounting / installation

  • Mounted vertically or horizontally on a DIN rail. Using the 2-channel version up to 84 channels can be mounted per meter.
  • The 6334A can be mounted in zone 2 and zone 22.

The integrated cold-junction compensation uses a built-in temperature sensor, while stored data is checked continuously for safety. The output-signal limit can also be programmed for the application.

6334A2A
1 Item

Data sheet

Input
Cold junction compensation: Internal
Max. offset: 50% of selec. max. value
TC types : BEJKLNRSTUW3W5Lr
mV, measurement range / min. span: -12...+150 mV / 5 mV
Output
mA, signal range / min. span: 3.5...23 mA / 16 mA
Technical Specifications
Accuracy: ±0.05% of span
Ambient temperature: -40...+85°C
Channels: 1
Isolation voltage, test / operation: 1500 VAC / 50 V
NAMUR NE21, NE43
Programming: 5909
Response time: 1...60 s
Signal dynamics, input / output: 18 bit /16 bit
Supply voltage, DC: 7.2...35 VDC
Temperature coefficient ±0.01% of span / °C
Approvals
ATEX, Zone 2: Yes
CSA, Zone 2 - DIV 2: No
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2: Yes
INMETRO, Zone 2: Yes
SIL 2 Full Assessment IEC 61508 :No
SIL Hardware Assessment: No
UL 61010 / 508: No
Application guide
Custom sensor linearization: Yes
Galvanically isolated: Yes
Loop-powered: Yes
Mounting in Zone 2 / DIV 2: Yes/No
Process signal calibration:Yes
RTD / TC / mV input: No/Yes/Yes
mA output: Yes
