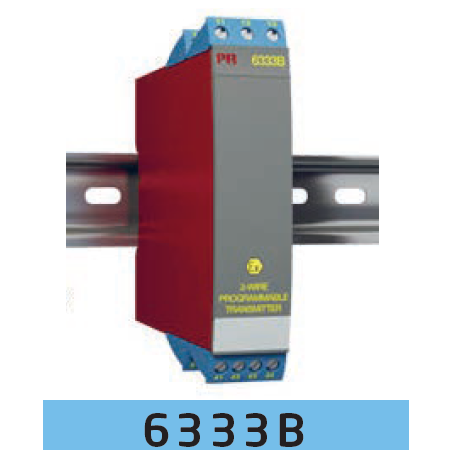

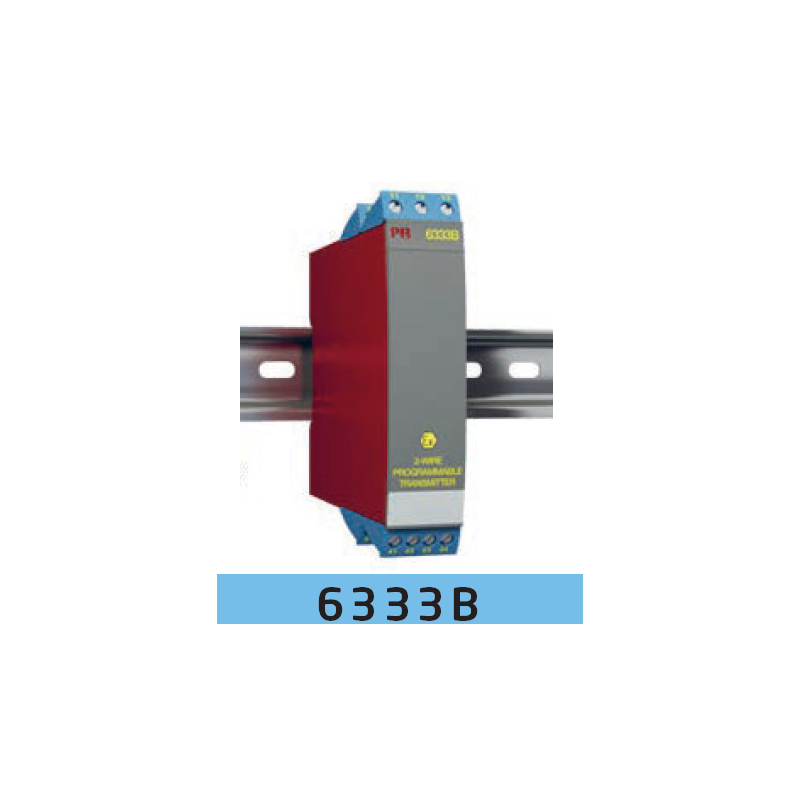

2-wire programmable transmitter 6333B1B

Name: 2-wire programmable transmitter 6333B1B
Brand: PR Electronics
SKU: 6333B1B
Price: 1705.74 RON
Availability: InStock

lei1,705.74

Tax included

Price excluding VAT: lei1,409.70

Quantity

Last items in stock

Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.

Within a few seconds the user can program PR6333B to measure temperatures within all RTD ranges defined by the norms.
The RTD and resistance inputs have cable compensation for 3-wire connection.
A limit can be programmed on the output signal.

Mounted vertically or horizontally on a DIN rail. Using the 2-channel version, up to 84 channels can be mounted per meter.
The 6333B can be mounted in zone 0, 1, 2 and zone 21, 22 including M1 / Class I, Division 1, Groups A, B, C, D.

Reference 6333B1B

In stock 2 Items

Data sheet

Input: Lin. R, measurement range / min. span: 0...10 kΩ / 30 Ω
Max. offset: 50% of selec. max. value
RTD, measurement range / min. span: -200...+850°C / 25°C
Sensor connection, wires: 2 - 3
Output: mA, signal range / min. span: 3.5...23 mA / 16 mA
Technical Specifications: Accuracy ±0.1% of span
Ambient temperature: -40...+85°C
Channels: 2
Max. required power, 1 / 2 channels: 0.7 W / 1.4 W
NAMUR: NE43
Programming: 5909
Response time: 0.33...60 s
Signal dynamics, input / output: 19 bit / 16 bit
Supply voltage, DC: 8...30 VDC
Temperature coefficient ±0.01% of span / °C
Approvals: ATEX: Yes
CSA: Yes
DNV: No
EAC Ex: Yes
FM: Yes
IECEx: Yes
INMETRO: Yes
SIL Hardware Assessment: No
UL: No
Application guide: Custom sensor linearization: Yes
Lin. R / potentiometer input: Yes/No
Loop-powered: Yes
Process signal calibration:Yes
RTD / TC / mV input: Yes/No/No
mA output: Yes
