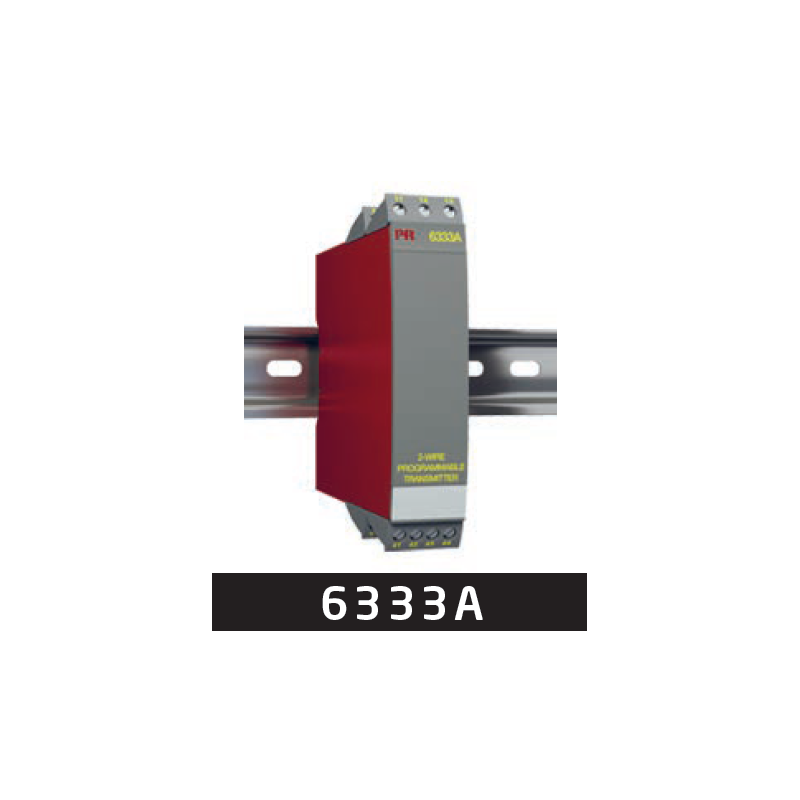

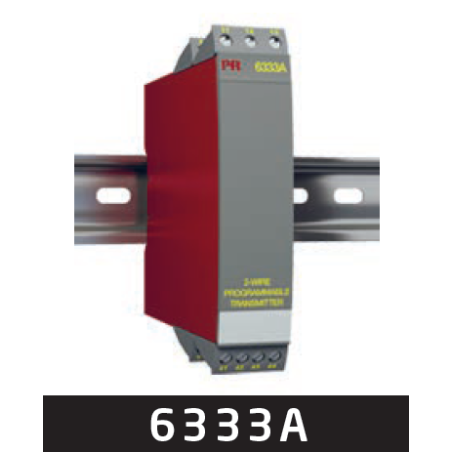

2-wire programmable transmitter 6333A1B

lei1,558.00
Tax included

Price excluding VAT: lei1,287.60

Delivery: 1- 2 days

In stock available in Iași, RO: 2 items

6333A1B

  • 2-channel version
  • RTD or Ohm input
  • High measurement accuracy
  • 3-wire connection
  • Programmable sensor error value

Quantity
Last items in stock

Application

  • Linearized temperature measurement with Pt100...Pt1000 or Ni100...Ni1000 sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.

Technical characteristics

  • Within a few seconds the user can program PR6333A to measure temperatures within all RTD ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 3-wire connection.
  • A limit can be programmed on the output signal.

Mounting / installation

  • Mounted vertically or horizontally on a DIN rail. Using the 2-channel version up to 84 channels per meter can be mounted.
  • The 6333A can be mounted in zone 2 and zone 22 / Class I, Division 2, Groups A, B, C, D.

Configuration check

Match the selected RTD or resistance input to the connected sensor and verify the three-wire cable arrangement before commissioning. Set the measuring range and any output limit required by the application. Check the scaling of the receiving system against the transmitter settings so that the displayed process value corresponds to the intended range.

6333A1B
2 Items

Data sheet

Input
Lin. R, measurement range / min. span: 0...10 kΩ / 30 Ω
Max. offset: 50% of selec. max. value
RTD, measurement range / min. span: -200...+850°C / -
Sensor connection, wires: 2 - 3
Output
mA, signal range / min. span: 3.5...23 mA / 16 mA
Technical Specifications
Accuracy ±0.1% of span
Ambient temperature: -40...+85°C
Channels: 2
Max. required power, 1 / 2 channels:0.8 W/1.6 W
NAMUR: NE43
Programming: 5909
Response time: 0.33...60 s
Signal dynamics, input / output: 19 bit / 16 bit
Supply voltage, DC: 8...35 VDC
Temperature coefficient ±0.01% of span / °C
Approvals
ATEX, Zone 2: Yes
CSA, Zone 2 - DIV 2: Yes
DNV: No
EAC: Yes
FM, Zone 2 - DIV 2: No
IECEx, Zone 2: Yes
INMETRO, Zone 2: Yes
SIL 2 Full Assessment IEC 61508 :No
SIL Hardware Assessment: No
UL 61010 / 508: No
Application guide
Custom sensor linearization: Yes
Lin. R / potentiometer input: Yes/No
Loop-powered: Yes
Mounting in Zone 2 / DIV 2: Yes/No
Process signal calibration:Yes
RTD / TC / mV input: Yes/No/No
mA output: Yes
