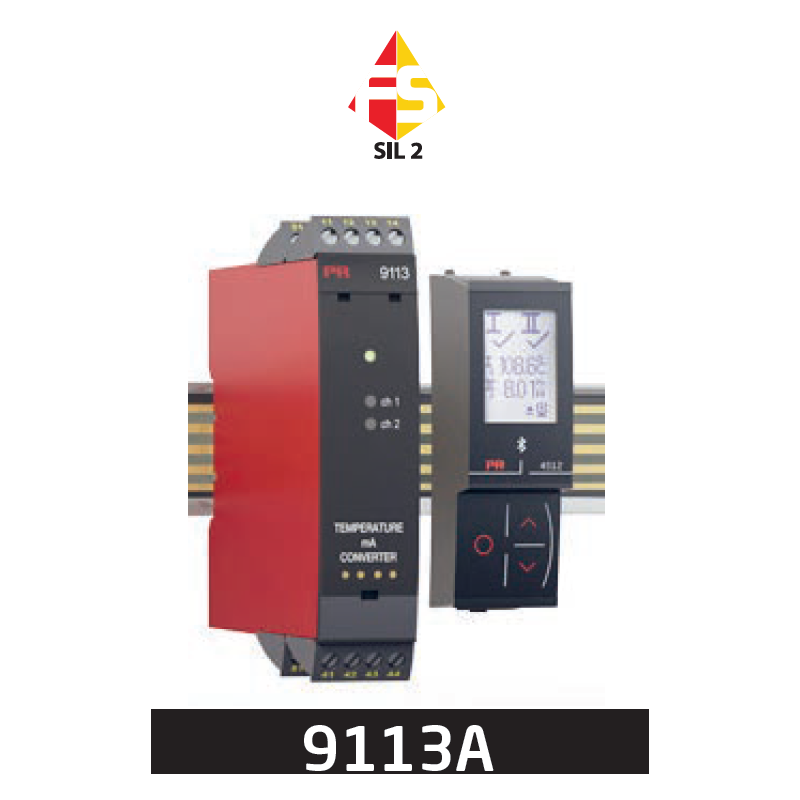

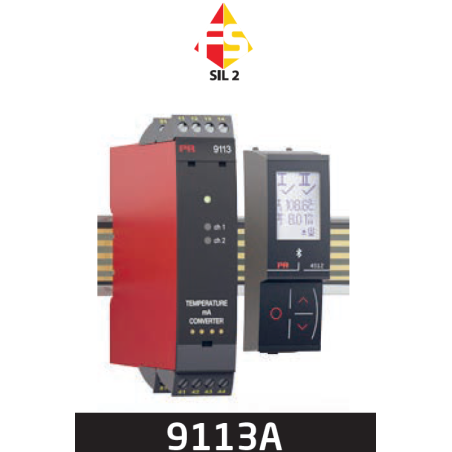

Temperature / mA converter 9113AA
lei2,236.26
Tax included
Price excluding VAT: lei1,848.15
Delivery: 1- 2 days
In stock available in Iași, RO: 9 items
9113AA
- A: 1 channels
- Input for RTD, TC and mA
- Active / passive mA output via the same two terminals
- Can be supplied separately or installed on power rail, PR type 9400
- SIL 2-certified via Full Assessment
Advanced features
- Configuration and monitoring by way of detachable display front (PR 4500); process calibration and signal simulation.
- Copying of the configuration from one device to others of the same type via the display front.
- TC inputs can use either the internal CJC or a terminal with a built-in Pt100 sensor (PR 5910, channel 1 / PR 5913, channel 2) for higher accuracy.
- Advanced monitoring of internal communication and stored data.
- SIL 2 functionality is optional and must be activated in a menu point.
Application
- 9113A can be mounted in the safe area or in zone 2 / Class I, Division 2, Groups A, B, C, D.
- Conversion and scaling of temperature (Pt, Ni and TC) and active current signals.
- 9113A has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508.
- Suitable for the use in systems up to Performance Level “d” according to ISO-13849.
Technical characteristics
- 1 green and 2 red front LEDs indicate operation status and malfunction.
- 2.6 kVAC galvanic isolation between input, output and supply.
Mounting
- The devices can be mounted vertically or horizontally without distance between neighbouring units.
9113AA
9 Items
Data sheet
- Input
- Cold junction compensation: Internal/external
RTD, measurement range / min. span: -200...+850°C / 25°C
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
mA, measurement range / min. span: 0...23 mA / 16 mA - Output
- mA, signal range / min. span 0...23 mA / 16 mA
- Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature: -20...+60°C
Channels: 1
Isolation voltage, test / operation: 2.6 kVAC / 250 VAC
Max. required power, 1 / 2 channels: ≤ 0.8 W / ≤ 1.4 W
NAMUR NE21, NE43
Programming: 4500 series devices
Response time: 0.4 / 1...60 s
Signal dynamics, input / output: 24 bit / 16 bit
Supply voltage, DC: 19.2...31.2 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
CCC / KCs: Yes
CSA, Zone 2 - DIV 2: No
DNV / EU-RO marine: Yes/No
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2: Yes
INMETRO: Yes
NEPSI: No
SIL 2/3 Full Assessment IEC 61508: Yes/No
SIL Hardware Assessment: No
UKEX, Zone 2: Yes
UL 61010 / 913: Yes - Application guide
- Galvanically isolated: Yes
Power rail option: Yes
Process signal calibration:Yes
RTD / TC / mV input: Yes/Yes/No
mA output: Yes
