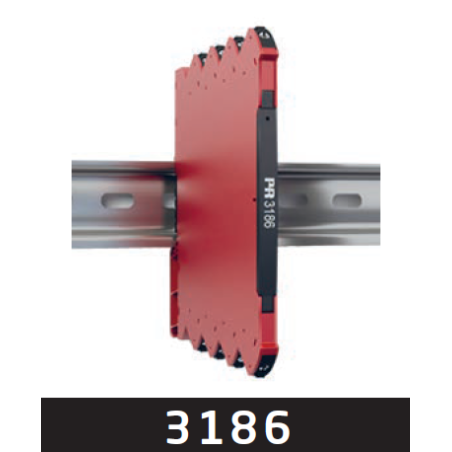

2-wire transmitter isolator 3186A2
lei1,255.80
Tax included
Price excluding VAT: lei1,037.85
Delivery: 1- 2 days
In stock available in Iași, RO: 8 items
3186A2
- A2: 2 channel 2-wire transmitter isolator
- Isolation and 1:1 conversion of standard current signals
- Excellent accuracy, better than 0.05% of span
- Low voltage drop and fast response time < 5 ms
- Slimline 6.1 mm housing
Functional highlights
- 3186A is a 1:1 output loop-powered 2-wire transmitter isolator that excites and measures passive input signals.
- 3186B is a 1:1 output loop-powered 2-wire current isolator that measures active input signals.
- High 4-port isolation provides surge suppression that protects the control system from transients and noise and eliminates ground loops.
- The device can be mounted in Safe area or in Zone 2 / Division 2 areas and is approved for marine applications.
Technical highlights
- The device is powered by the host loop voltage.
- Excellent conversion accuracy, better than 0.05% in the range 3.8…20.5 mA.
- Fast response time < 5 ms.
- Wide supply range from 6...35 V.
- Low input to output voltage drop typ. 2.5 V (3186A).
- Low input drop ≤ 3 V (3186B), even when no loop power is applied to the output terminals.
- NAMUR NE21, NE43.
- Excellent signal/noise ratio > 60 dB.
- High galvanic isolation of 2.5 kVAC.
- Inputs and outputs are floating and galvanically separated.
- Wide ambient temperature range: -25...+70°C.
Mounting / installation
- The narrow 6.1 mm housing allows up to 163 units per meter.
- DIN rail mounting with up to 326 channels per meter.
- Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail, even at 70°C ambient temperature.
Technical articles
3186A2
6 Items
Data sheet
- Input
- Reference voltage / 2-wire supply: - / Vloop-2.5 VDC
mA, measurement range / min. span: 3.5...23 mA / 1:1 - Output
- mA, signal range / min. span: 3.5...23 mA / 1:1
- Technical Specifications
- Accuracy: ±0.05% of span
Ambient temperature: -25...70°C
Channels: 2
Isolation voltage, test / operation: 2.5 kVAC / 250 VAC
Max. required power: 50 mW per channel
NAMUR NE21
Programming: No
Response time: 5 ms
Signal dynamics, input / output: Analog signal chain
Supply voltage, AC / DC: - / 6...35 VDC
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2: Yes
CCC: Yes
DNV: Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2: Yes
UKEX, Zone 2: Yes
UL 61010 / 508:Yes/No - Application guide
- 4...20 mA Tx input : Yes
Active / passive input signal: Yes/Yes
Active / passive mA output: No/Yes
Mounting in Zone 2 / DIV 2: Yes/Yes
Signal repeater: Yes
mA / V output: Yes/No
