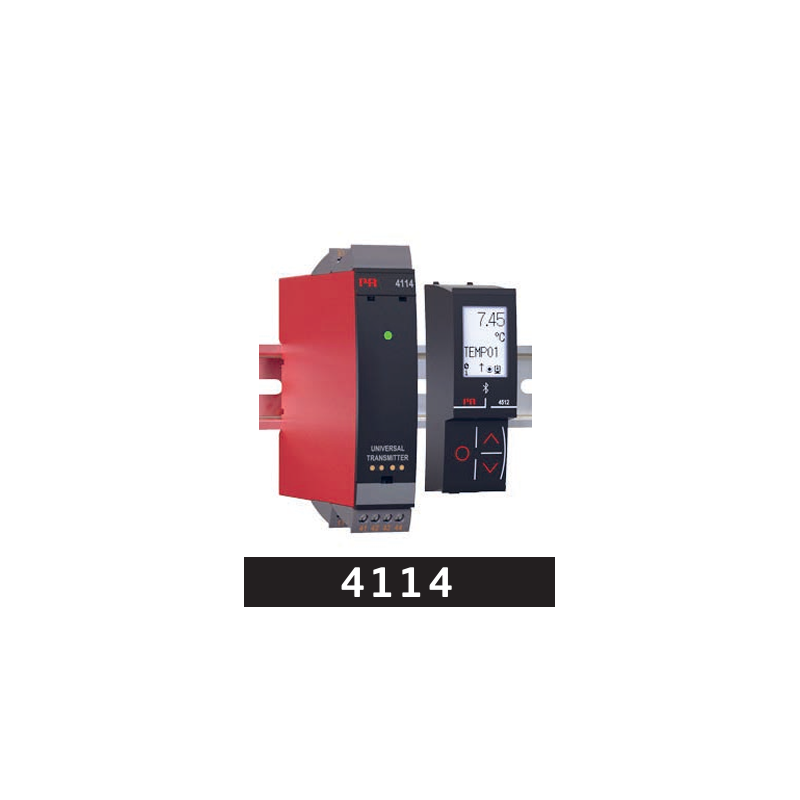

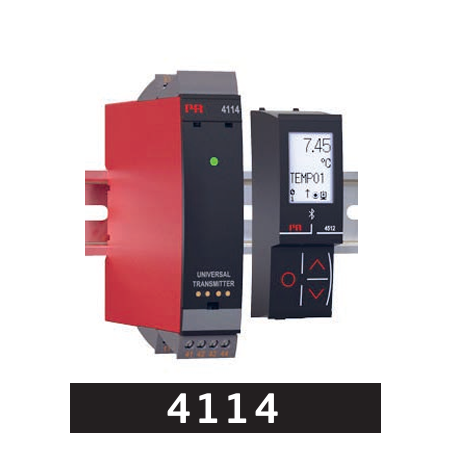

Universal transmitter 4114
lei1,416.97
Tax included
Price excluding VAT: lei1,171.05
Delivery: 1- 2 days
In stock available in Iași, RO: 8 items
4114
- Input for RTD, TC, Ohm, potentiometer, mA and V 2-wire supply > 16 V
- FM-approved for installation in Div. 2
- Output for current and voltage
- Universal AC or DC supply
Advanced features
- Programmable by way of detachable display front (PR 4500 series), process calibration, signal simulation, password protection, error diagnostics and help text available in several languages.
Application
- Linearized, electronic temperature measurement with RTD or TC sensor.
- Conversion of linear resistance variation to a standard analog current / voltage signal, i.e. from solenoids and butterfly valves or linear movements with attached potentiometer.
- Power supply and signal isolator for 2-wire transmitters.
- Process control with standard analog output.
- Galvanic separation of analog signals and measurement of floating signals.
- The 4114 provides the required failure data (SFF and PFDAVG) for SIL 2 applications as per IEC 61508 / IEC 61511.
- Failure rates for 4114 correspond to Performance Level “d” according to ISO-13849.
Technical characteristics
- When 4114 is used with the PR 4500 display series, all operational parameters can be modified to suit any application.
- As the 4114 is designed with electronic hardware switches, it is not necessary to open the device for setting of DIP-switches.
- A green / red front LED indicates normal operation and malfunction. Continuous check of vital stored data for safety reasons.
- 3-port 2.3 kVAC galvanic isolation.
Technical articles
- PR 4114: checking the signal and PLC scaling
- PR 4114 at Heidelberg Materials: one model for different signals
Other articles in which this product is mentioned
4114
6 Items
Data sheet
- Input
- Cold junction compensation: Internal/external
Lin. R, measurement range / min. span: 0...10000 Ω / -
Potentiometer : 10 Ω...100 kΩ
RTD, measurement range / min. span: -200...+850°C / -
Reference voltage / 2-wire supply : - / 16 VDC
Sensor connection, wires : 2 - 3 - 4
TC types : BEJKLNRSTUW3W5Lr
V, measurement range / min. span: 0...12 VDC / 0.8 V
mA, measurement range / min. span: 0...23 mA / 16 mA - Output
- Load (@ current output) ≤ 800 Ω
Load (@ voltage output) : n/a
Relays : n/a
V, signal range / min. span 0...10 VDC / 0.8 VDC
mA, signal range / min. span 0...23 mA / 16 mA - Technical Specifications
- Accuracy ±0.1% of span
Ambient temperature:-20...+60°C
Channels: 1
Isolation voltage, test / operation: 2.3 kVAC / 250 VAC
Max. required power 2.0 W
NAMUR NE21, NE43
Programming: 4500 series devices
Response time: 400 ms
Signal dynamics, input / output: 24 bit / 16 bit
Supply voltage, universal AC / DC 21.6...253 V / 19.2...300 V
Temperature coefficient ±0.01% of span / °C - Approvals
- ATEX, Zone 2 : No
CCC: No
DNV / EU-RO marine : Yes/Yes
EAC: Yes
FM, Zone 2 - DIV 2 : Yes
IECEx, Zone 2 : No
SIL 2, Hardware Assessment: Yes
UKEX, Zone 2 : No
UL 61010 / 508 : No/Yes - Application guide
- 4...20 mA Tx input : Yes
Active / passive current output: Yes/No
Analog / relay output : Yes/No
Bipolar mA / V input : No
Buffered voltage output: No
Custom sensor linearization: No
Lin. R / potentiometer input : Yes/Yes
Power rail option: No
Process signal calibration:Yes
V-curve function: No
mA / V / temperature input : Yes/Yes/Yes
