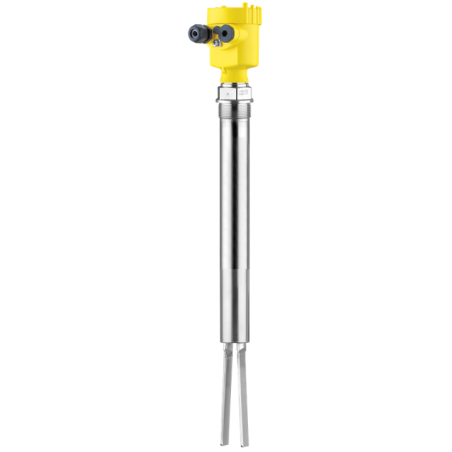

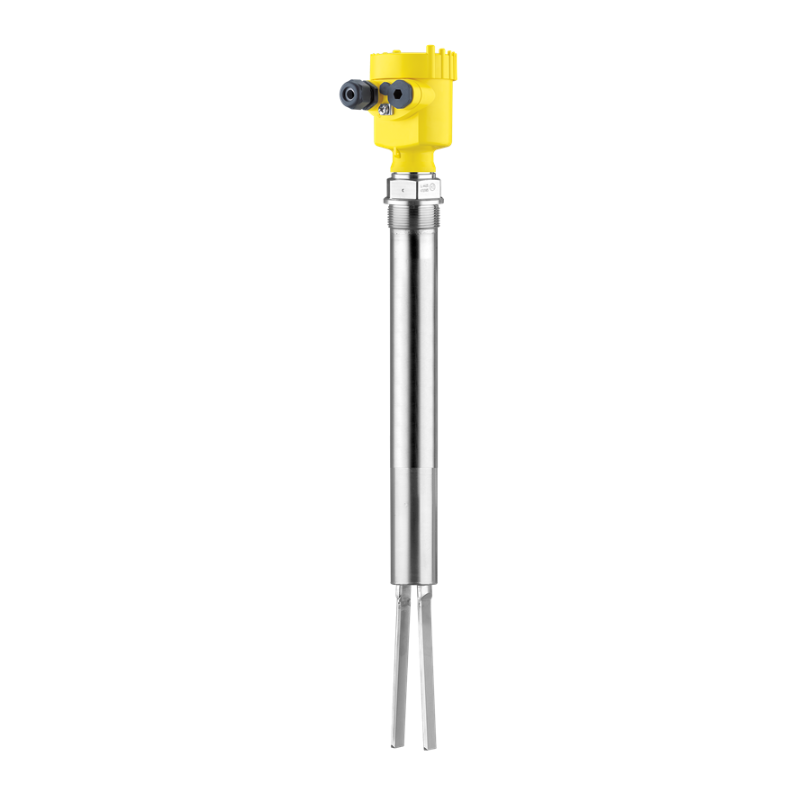

VEGAWAVE 63 Vibrating Level Switch for Powders
search
  • VEGAWAVE 63 Vibrating Level Switch for Powders

VEGAWAVE 63 WE63.XXAGDRKMX

lei6,499.26
Tax included

Price excluding VAT: lei5,371.29

Delivery: 1- 2 days

In stock available in Iași, RO: 1 items

VEGAWAVE 63 WE63.XXAGDRKMX

  • Vibrating level switch with tube extension for powders
  • For powdery and fine-grained bulk solids from density 8 g/l – with tube extension
Quantity
Last items in stock

Application area

The position of the switching point can be up to 6 m away from the installation site. The tuning fork design is very robust and unaffected by buildup. Grain size: max. 10 mm

The VEGAWAVE 63 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. limit level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density. The position of the switching point can be determined through the length of the tube extension.

Your benefit

  • Low costs for maintenance through robust design
  • Minimum time and cost expenditure thanks to simple setup without medium
  • Reliable function through product-independent switching point
DE116962049
1 Item

Data sheet

Approvals
without
Process fitting / Material
Thread G1½ PN25, DIN3852-A / 316L
Electronics
Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A)
Housing / Protection
Plastic single chamber / IP66/IP67
Approval directive / Scope
None / World-wide
Version / Process temperature
Standard / -50...+150°C
Length (from seal surface)
400mm
Cable entry / Cable gland / Plug connection
M20x1.5 / with / without
Switching point
Standard sensitivity (from density 0.02 g/cm³)
Mode
Overflow protection
