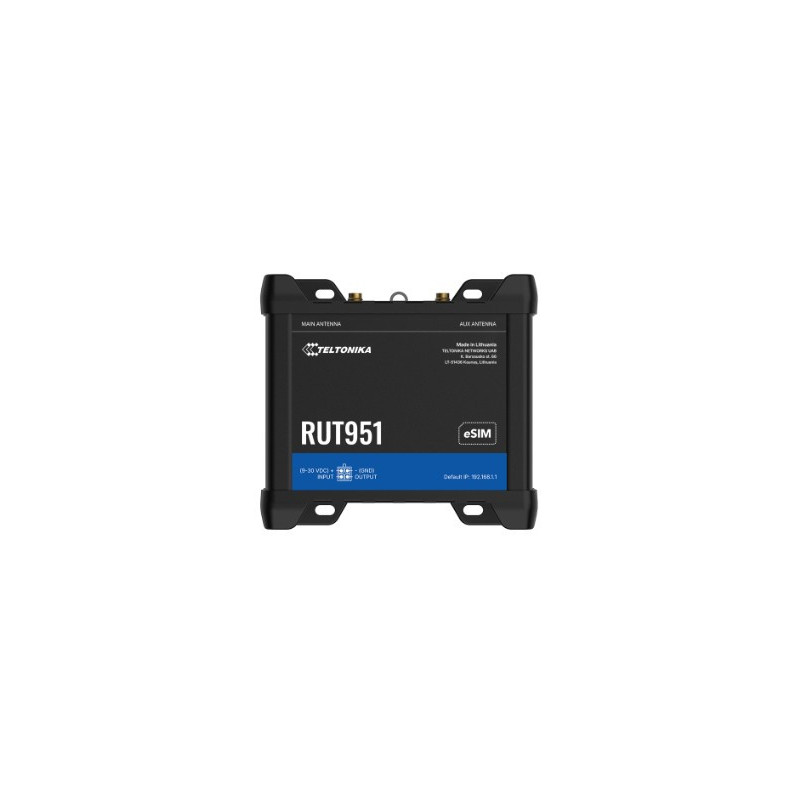

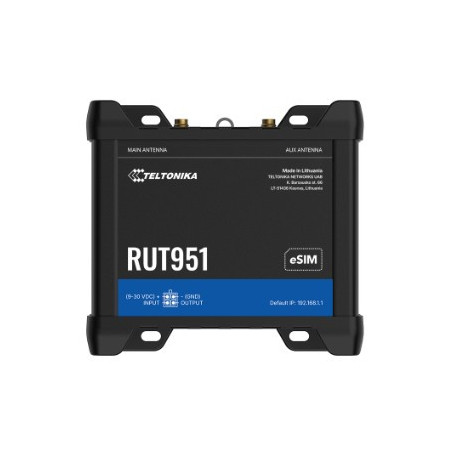

RUT951 Dual-SIM Industrial 4G Router | ATSEN

Router RUT951

Name: Router RUT951
Brand: TELTONIKA
SKU: RUT951
Price: 1450.55 RON
Availability: InStock

lei1,450.55

Tax included

Price excluding VAT: lei1,198.80

Delivery: 1- 2 days

In stock available in Iași, RO: 4 items

Router RUT951

INDUSTRIAL CELLULAR ROUTER

RUT951 features dual-SIM cellular connectivity combined with Wi-Fi and four Ethernet interfaces to meet the needs of the most varied IoT scenarios. Powered by RutOS, this router offers advanced customization options, automation features, and top-level security for your solution.

CONNECTIVITY

4G LTE (Cat 4), 3G, 2G

DUAL SIM

With auto failover, backup WAN and other switching scenarios

WI-FI

Wireless Access Point with Hotspot functionality

WAN FAILOVER

Automatic switch to available backup connection

For more details, you can access : RUT951 4G Wi-Fi Router

Planning a multi-device installation

The four Ethernet interfaces make RUT951 relevant when several wired devices need to share a cellular connection. Include the wired equipment, Wi-Fi clients and backup connection in the network plan before installation. Define when the router should switch between available connections and verify the dual-SIM settings. RutOS customization and automation options can then be matched to the application. During commissioning, test communication with each connected device and check the behaviour when the primary connection becomes unavailable.

Reference RUT951

In stock 4 Items

Data sheet

Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Wi-Fi users: Up to 100 simultaneous connections
Ethernet: WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards , supports auto MDI/MDIX LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
Protocol: HTTP(S), MQTT, Azure MQTT
Connector: 4-pin industrial DC power socket
Casing material: Aluminium housing, plastic panels
Dimensions (W x H x D): 110 x 50 x 100 mm
Weight: 287 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
