Router RUT200

lei718.56
Tax included

Price excluding VAT: lei593.85

Delivery: 1- 2 days

In stock available in Iași, RO: 4 items

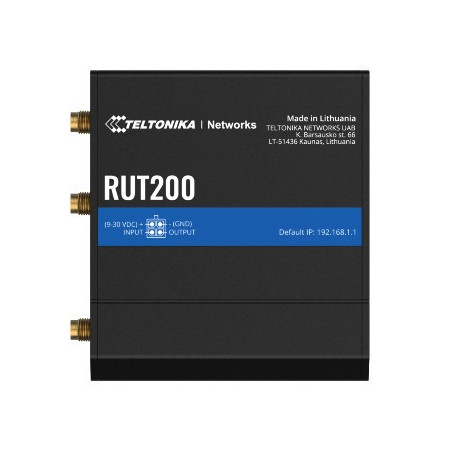

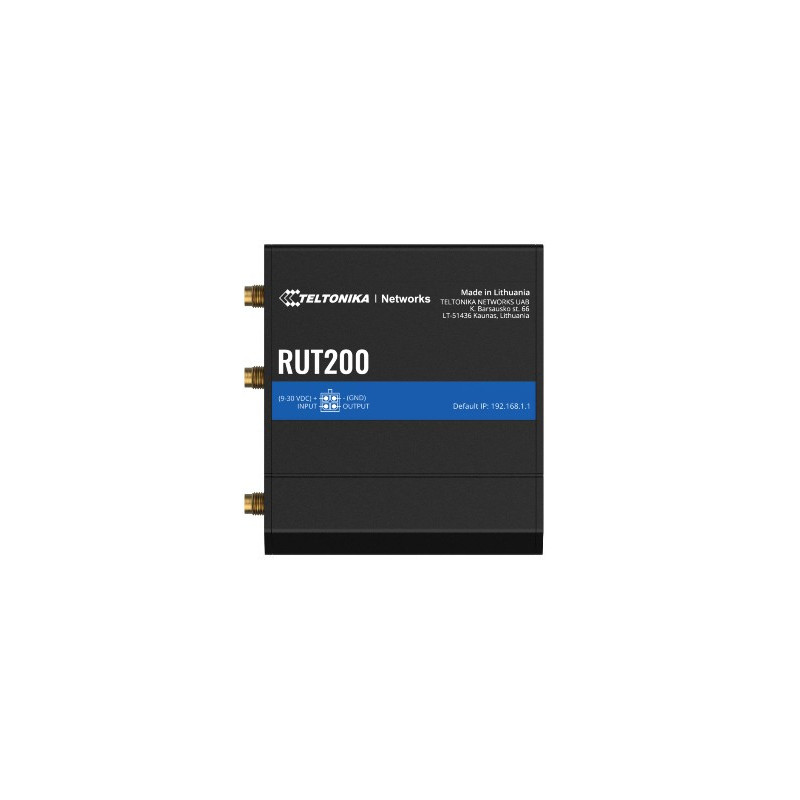

Router RUT200

INDUSTRIAL CELLULAR ROUTER

Quantity

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.

CONNECTIVITY

  • 4G/LTE (Cat 4), 3G, 2G

WI-FI Wireless

  • Access Point with Hotspot functionality

WAN FAILOVER

  • Automatic switching to available Backup connection

RMS

  • For remote management, access & VPN services

For more details, you can access : RUT200 4G Wi-Fi Router

Primary and backup connectivity

RUT200 is suited to compact installations where equipment needs Ethernet or Wi-Fi access and a cellular connection. When planning the network, account for both Ethernet ports and decide how the main and backup connections will be used. Configure the Wi-Fi access point or hotspot for the intended users and devices. For remote sites, review the RMS services required for management, access or VPN, then test the WAN failover behaviour under the actual installation conditions.

RUT200
4 Items

Data sheet

Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Wi-Fi users
Up to 50 simultaneous connections
Ethernet
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards , supports auto MDI/MDIX LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP()S, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Supported modes
Station,Outstation
Casing material
Aluminium housing, plastic panels
Dimensions (W x H x D)
83 x 25 x 74 mm
Weight
125 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
