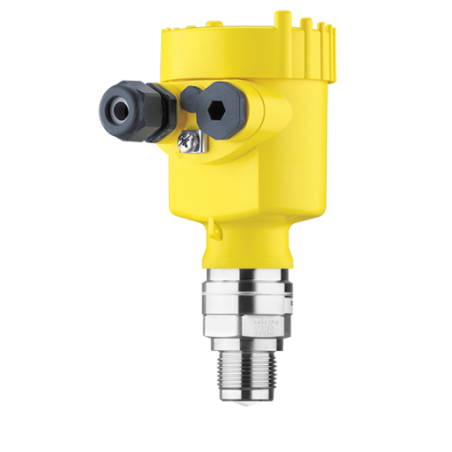

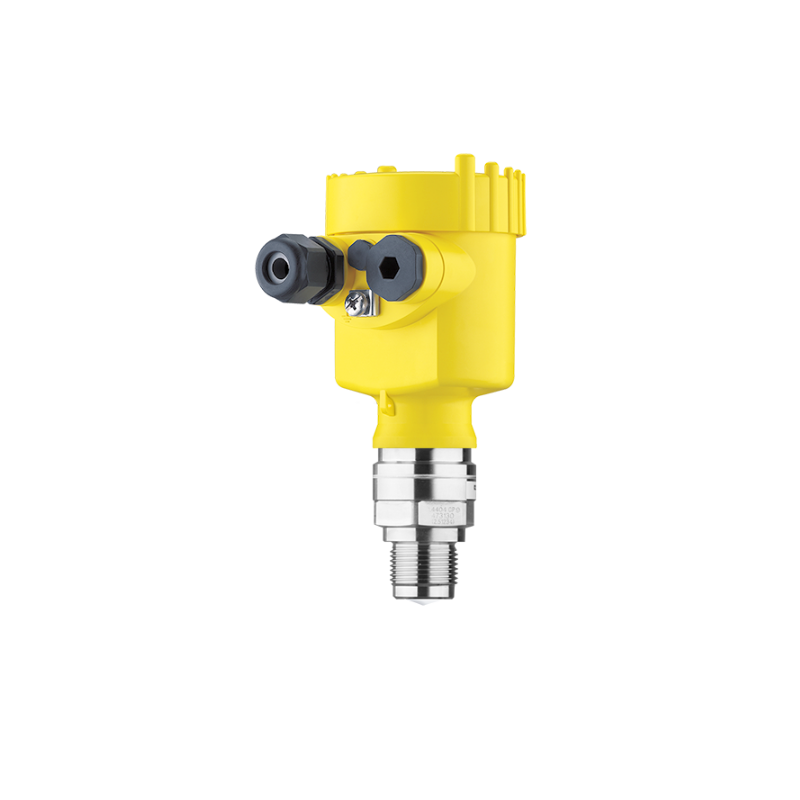

VEGAPULS 6X PS6X.2SWFJFXAWAMKHXXXSXXXX
- Radar sensor for continuous level measurement of liquids and bulk solids
- All-round radar measuring device - VEGAPULS 6X combines the best of the previous VEGAPULS 60 series.
Application area
VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.
Your benefit
- Exact measuring results independent of process conditions
- Maintenance-free operation through non-contact measuring principle
- Application-oriented configuration enables a simple device selection
Application-based selection
Start with the medium, vessel geometry and required measuring range when selecting a VEGAPULS 6X configuration. Match the antenna system and process connection to the installation, then check the operating conditions against the selected version. The complete order code identifies the configuration to verify before installation. Commissioning should include a check of the measured level and its transmission to the receiving system.
PS6X - 229 SJA
1 Item
Data sheet
- Explosion protection
- for Ex-free areas (CE, RCM); including Ordinary Location (c-FM-us, c-CSA-us)
- Electronics
- Two-wire 4 ... 20 mA/HART
- Process fitting
- Flange EN1092-1, DN100 PN6, with raised face, Form B1 / 316/316L
- Cable entry / Connection
- M20x1.5 / Cable gland PA black (ø5-9mm), standard
- Application
- Standard
- Radar technology
- 80 GHz technology
- Antenna version
- Flange with encapsulated antenna system
- Material / Seal / Process temperature
- PTFE / PTFE / -60...+150°C
- Housing / Protection
- Aluminium single chamber / IP66/IP68 (0.2bar)
- Display/adjustment module PLICSCOM
- Display/adjustment module PLICSCOM, with Bluetooth
- IT security (IEC 62443-4-2)
- Yes
- Type label
- of foil
- Quality and test plan
- Yes
- Supply certificates
- with goods
- Test certificate
- Measuring accuracy (3 measurement points)
