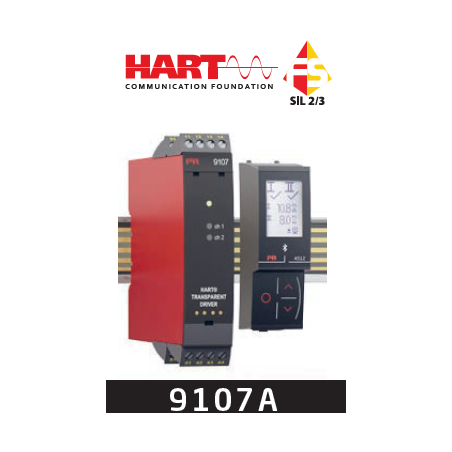

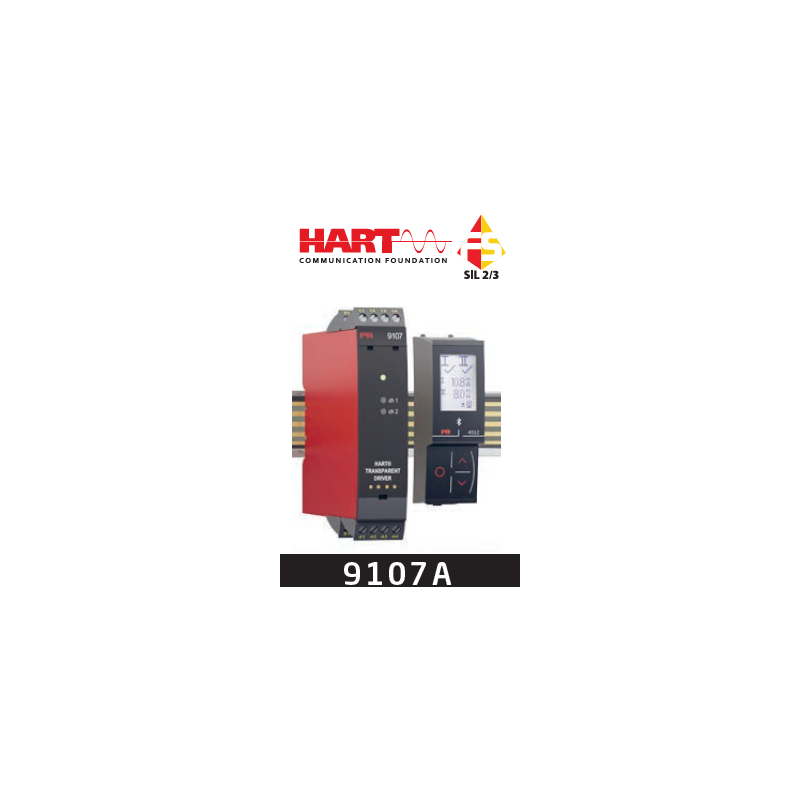

HART transparent driver 9107AB

Application

• 9107A is a 1- or 2-channel isolated 1:1 driver.
• Operation and drive control of I/P converters, valves and indicators.
• Operation of HART devices is possible as the unit transmits HART communication signals bi-directionally.
• 9107A can be mounted in the safe area or in zone 2 / Class I, Division 2, Groups A, B, C, D.
• The PR 4500 displays the process value for each channel and can be used to define high and low limits for detection of loop current level. If these limits are exceeded, the status relay will activate.
• Dual channel versions can be used for signal splitter applications - 1 in and 2 out.

Advanced features

• The PR 4500 detachable displays and the green and red front LEDs indicate operation status for each channel.
• A tag number can be defined for each channel.
• Output line fault detection.
• In the 1-channel version the status relay can be used as a simple limit switch.
• Failure rates for 9107 correspond to Performance Level “d” according to ISO-13849.

Technical characteristics

• High galvanic isolation of 2.6 kVAC.
• High accuracy better than 0.1%.
• Continuous check of vital stored data for safety reasons.

Mounting

• The devices can be mounted vertically or horizontally without distance between neighbouring units.
