Gateway TRB245
GATEWAY INDUSTRIAL M2M LTE

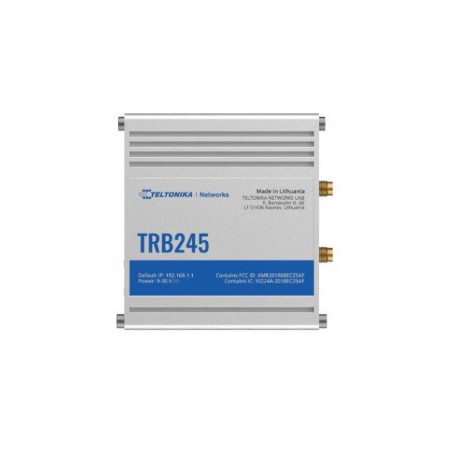

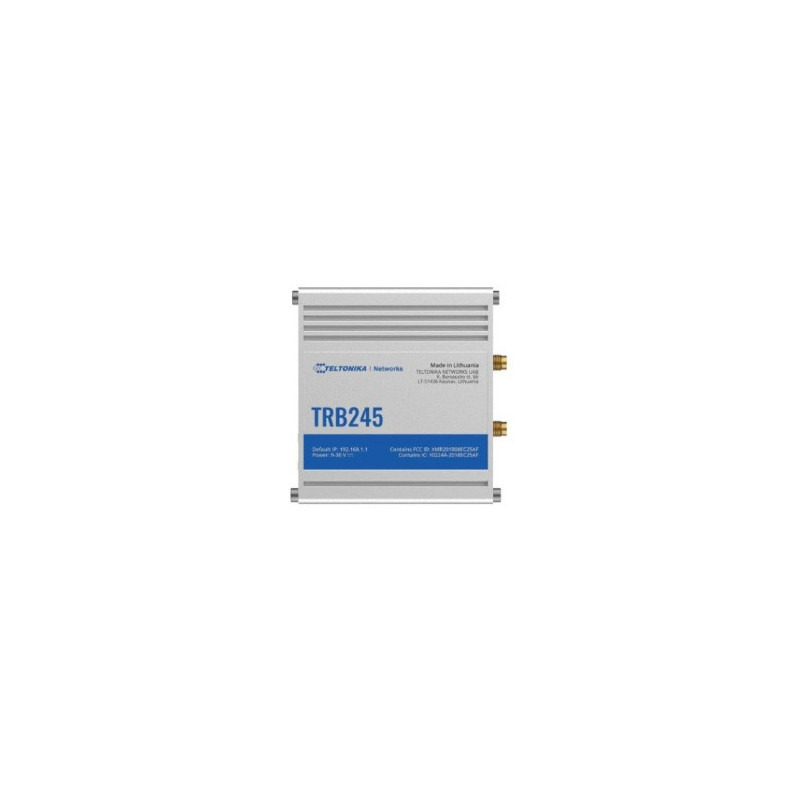

The Teltonika TRB245 is a compact industrial M2M gateway that combines LTE Cat 4 cellular connectivity with RS232, RS485 and Ethernet interfaces. It also supports 3G and 2G connectivity and provides multiple inputs and outputs. These interfaces allow the gateway to form part of an installation containing compatible serial and Ethernet equipment.
Choosing the connection
Start by identifying the interface used by each controller or field device. RS232, RS485 and Ethernet require different connections, so check the wiring and communication parameters for the equipment that will be connected. Match the type and number of inputs and outputs to the signals required by the project.
Installation planning
Check the available cellular coverage, antenna position, power requirements and space for cables inside the enclosure. Define the data path between the field equipment and the remote system before commissioning. Test the expected data exchange and recovery after a communication interruption. The compact format helps when arranging the gateway alongside existing control equipment; confirm the dimensions and connection details in the manufacturer's documentation before installation.
TRB245
3 Items
Data sheet
- Mobile module
- 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
- Ethernet
- LAN 1 x LAN port 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover (Configurable to work as WAN port)
- System Characteristics
- 16 MB Flash, 64 MB RAM
- Connector
- 2 pins in 16 pin industrial terminal block
- Casing material
- Aluminium housing
- Dimensions (W x H x D)
- 83 x 25 x 74.2 mm
- Weight
- 165 g
- Mounting options
- DIN rail, wall mount, flat surface (all require additional kit)
- Operating temperature
- -40 °C to 75 °C
- Operating humidity
- 10% to 90% non-condensing
- Input/Output
- 3 x Configurable Inputs/Outputs. Digital input 0 - 6 V detected as logic low, 8 - 30 V detected as logic high. Open collector Configurable I/O output, max output 30 V, 300 mA 1 x Analog input (0 - 30 V)
