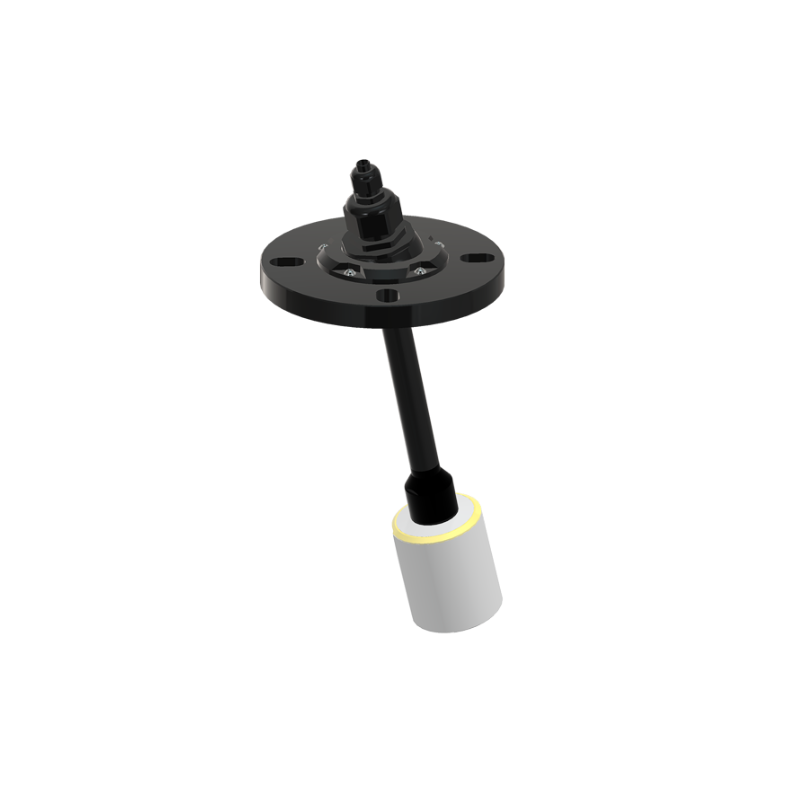

Alignment device for flange mounting MBH.PE

Alignment device for flange mounting, with movable sensor holder, for VEGAPULS C 11, 21, 23 of PP GF30

Selecting the sensor mounting accessory

The MBH.PE alignment device is intended for flange mounting of the VEGAPULS C models listed above. Its movable sensor holder is the relevant feature when planning the mounting position of the radar sensor. Before choosing this accessory, confirm the full sensor model, the flange arrangement and the available installation space. The sensor and the mounting accessory must be considered together; the accessory description alone does not establish the suitability of the complete measurement point. Check the manufacturer's installation instructions for positioning, fastening and the required clearance around the sensor. For a replacement, compare the MBH.PE designation and the existing mounting arrangement. Include the PP GF30 material in the compatibility review for the intended environment, and retain the selected accessory code with the installation documentation.
